NSN 5340-00-653-0353 MCD41155ITEM9, MCD4115-5ITEM9, 0897
Product Details | HANDWHEEL
5340-00-653-0353 An item having a major diameter of 3 or more inches (76.2mm) other than items having spoked or sumulated spoked construction, which may be under 3 inches (76.2mm) designed to be gripped by the hand to transmit rotary motion to other devices through a center axis, fabricated in the form of a solid body with simulated spokes or a recessed surface between the rim and the hub, or it may be built up in the form of a frame having a central hub connected to the rim by the spokes. It may have reference markings in the form of dots, arrows, hairline, etc., to indicate the relative position and/or direction of rotation of the item(s) with which it is used. It may also include an integral ratchet device. For similar items having a maximum diameter of less than 3 inches (76.2mm), see KNOB. For items calibrated in units or series of divisions denoting relative positioning of associated devices, see DIAL (as modified). Excludes STEERING WHEEL.
Part Alternates: MCD41155ITEM9, MCD4115-5ITEM9, 0897, 7660L, 7660L1, 7660L1560, 7660-L1-560, C74A, 5340-00-653-0353, 00-653-0353, 5340006530353, 006530353
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-653-0353 | 13379 ( HANDWHEEL ) |
Drawings & Photos | NSN 5340-00-653-0353
Cross Reference | NSN 5340-00-653-0353
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0897 | 96046 | CRANE PUMPS & SYSTEMS, INC. |
| 7660-L1-560 | 76364 | MILWAUKEE VALVE COMPANY, INC. DBA HAMMOND |
| 7660L | 76364 | MILWAUKEE VALVE COMPANY, INC. DBA HAMMOND |
| 7660L1 | 76364 | MILWAUKEE VALVE COMPANY, INC. DBA HAMMOND |
| C74A | 96046 | CRANE PUMPS & SYSTEMS, INC. |
| MCD4115-5ITEM9 | 87990 | QUARTERMASTER GENERAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-653-0353
Related Products | NSN 5340-00-653-0353
Technical Data | NSN 5340-00-653-0353

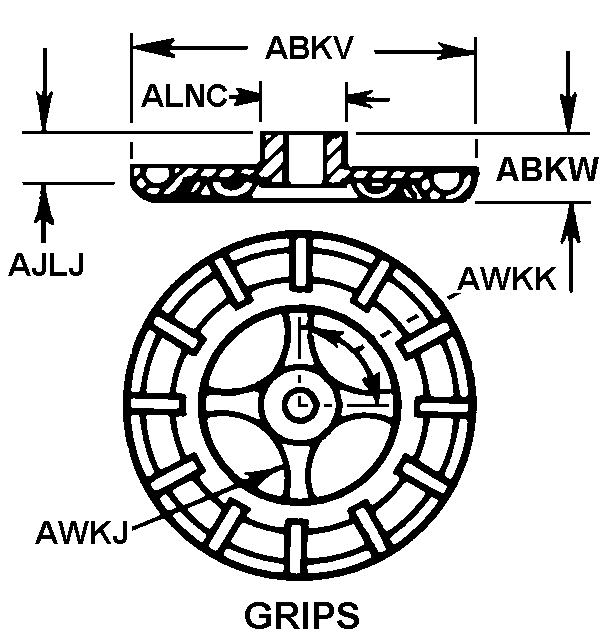

| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY OVERALL |
| HANDWHEEL STYLE | 33 GRIPS |
| OUTSIDE DIAMETER | 6.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.438 INCHES NOMINAL |
| HUB LENGTH | 0.938 INCHES NOMINAL |
| HUB OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| SPOKE ANGLE IN DEG | 90.0 |
| SPOKE QUANTITY | 4 |
| DRIVE FACILITY STYLE | 130 SQUARE |
| OVERALL DEPTH | 0.938 INCHES NOMINAL |
| DRIVE WIDTH | 0.562 INCHES NOMINAL |
| HANDLE ROTATING FEATURE | NOT INCLUDED |
| HANDLE COUNTERBALANCING WEIGHT | NOT INCLUDED |
| RATCHET | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 5340-00-653-0353
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
