NSN 5340-00-653-1402 F7120038, F71200-38, 00-653-1402
Product Details | SWIVEL CASTER
5340-00-653-1402 A caster designed to allow rotation of the wheel(s) or spherical constructed item in more than one plane.
Part Alternates: F7120038, F71200-38, 5340-00-653-1402, 00-653-1402, 5340006531402, 006531402
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-653-1402 | 06188 ( CASTER, SWIVEL ) |
Drawings & Photos | NSN 5340-00-653-1402
Demand History | NSN 5340-00-653-1402
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-653-1402 | 2016-04-111 | 1 | DIBBS |
| 5340-00-653-1402 | 2016-03-87 | 1 | DIBBS |
| 5340-00-653-1402 | 2015-09-256 | 1 | DIBBS |
| 5340-00-653-1402 | 2015-02-47 | 1 | DIBBS |
Cross Reference | NSN 5340-00-653-1402
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F71200-38 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-653-1402
Related Products | NSN 5340-00-653-1402
Technical Data | NSN 5340-00-653-1402
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | RUBBER TIRE STEEL WHEEL RIM STEEL BODY STEEL PLATE |
| SURFACE TREATMENT AND LOCATION | ENAMEL WHEEL RIM ENAMEL BODY ENAMEL PLATE |
| SAFE OPERATING LOAD RATING | 440.0 POUNDS MAXIMUM |
| STYLE DESIGNATOR | 2 SWIVEL OFFSET |
| WHEEL DIAMETER | 8.540 INCHES NOMINAL |
| TREAD WIDTH | 3.000 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 10.125 INCHES NOMINAL |

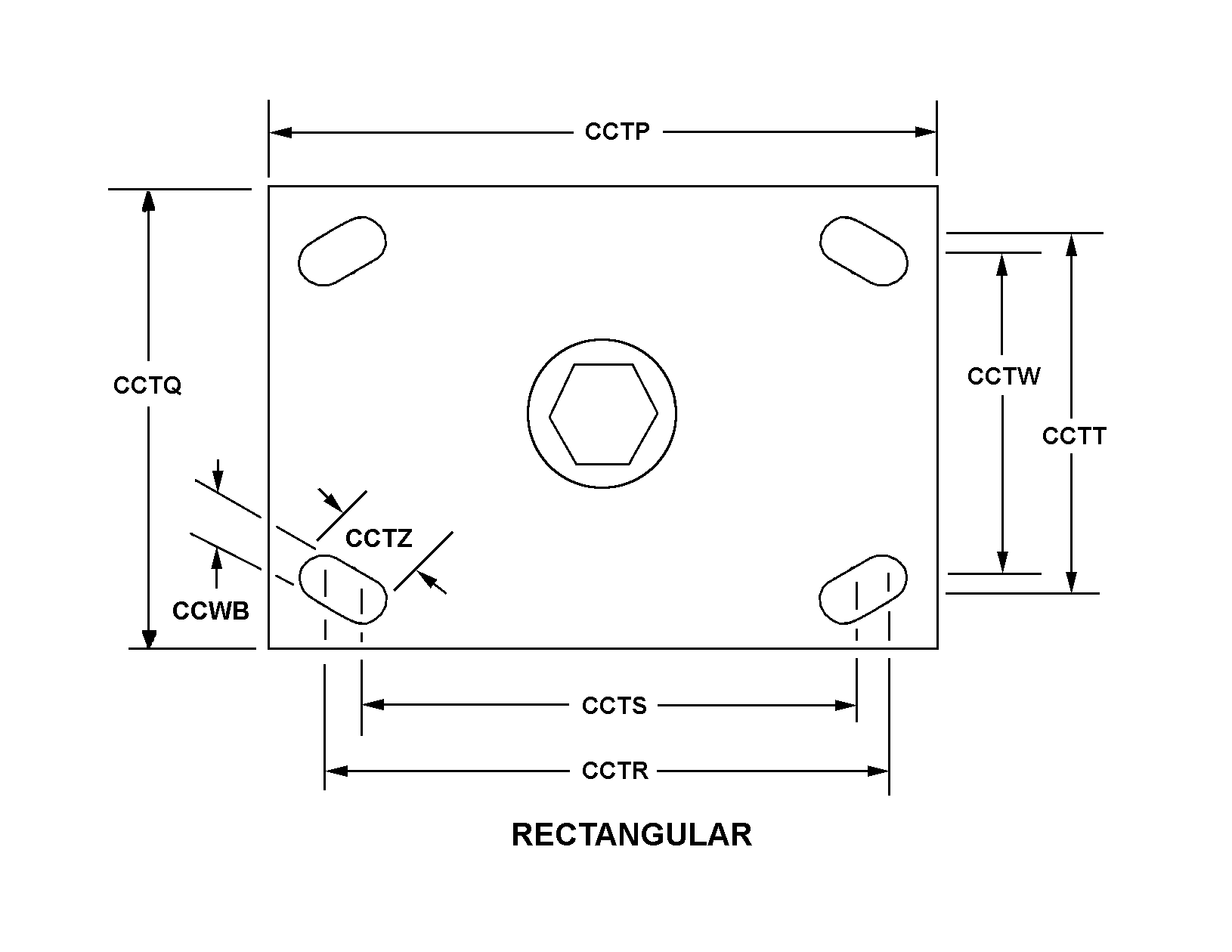

| PLATE STYLE | 4 RECTANGULAR |
| CASTER PLATE LENGTH | 6.500 INCHES NOMINAL |
| CASTER PLATE WIDTH | 5.000 INCHES NOMINAL |
| CENTER TO CENTER MAJOR DISTANCE BETWEEN MOUNTING SLOTS ALONG LENGTH | 5.250 INCHES NOMINAL |
| CENTER TO CENTER MINOR DISTANCE BETWEEN MOUNTING SLOTS ALONG LENGTH | 4.938 INCHES NOMINAL |
| CENTER TO CENTER MAJOR DISTANCE BETWEEN MOUNTING SLOTS ALONG WIDTH | 3.375 INCHES NOMINAL |
| CENTER TO CENTER MINOR DISTANCE BETWEEN MOUNTING SLOTS ALONG WIDTH | 2.438 INCHES NOMINAL |
| CASTER PLATE MOUNTING SLOT LENGTH | 0.562 INCHES NOMINAL |
| CASTER PLATE MOUNTING SLOT WIDTH | 0.562 INCHES NOMINAL |
| SWIVEL BEARING TYPE | BALL |
| SWIVEL BEARING ARRANGEMENT | TWO ROW |
| KING BOLT BEARING TYPE | BALL |
| WHEEL QUANTITY | 1 |
| WHEEL TYPE | PNEUMATIC TIRE |
| FEATURES PROVIDED | SWIVEL LOCK AND SWIVEL LUBRICATION FITTING |
Restrictions/Controls & Freight Information | NSN 5340-00-653-1402
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 041725 | CASTERS NOI IN BAGS/BBL/BX |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-653-1402
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
