Product Details | ROD END CLEVIS
5340-00-629-8903 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 1788006, 5340-00-629-8903, 00-629-8903, 5340006298903, 006298903
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-629-8903 | 03796 ( CLEVIS, ROD END ) |

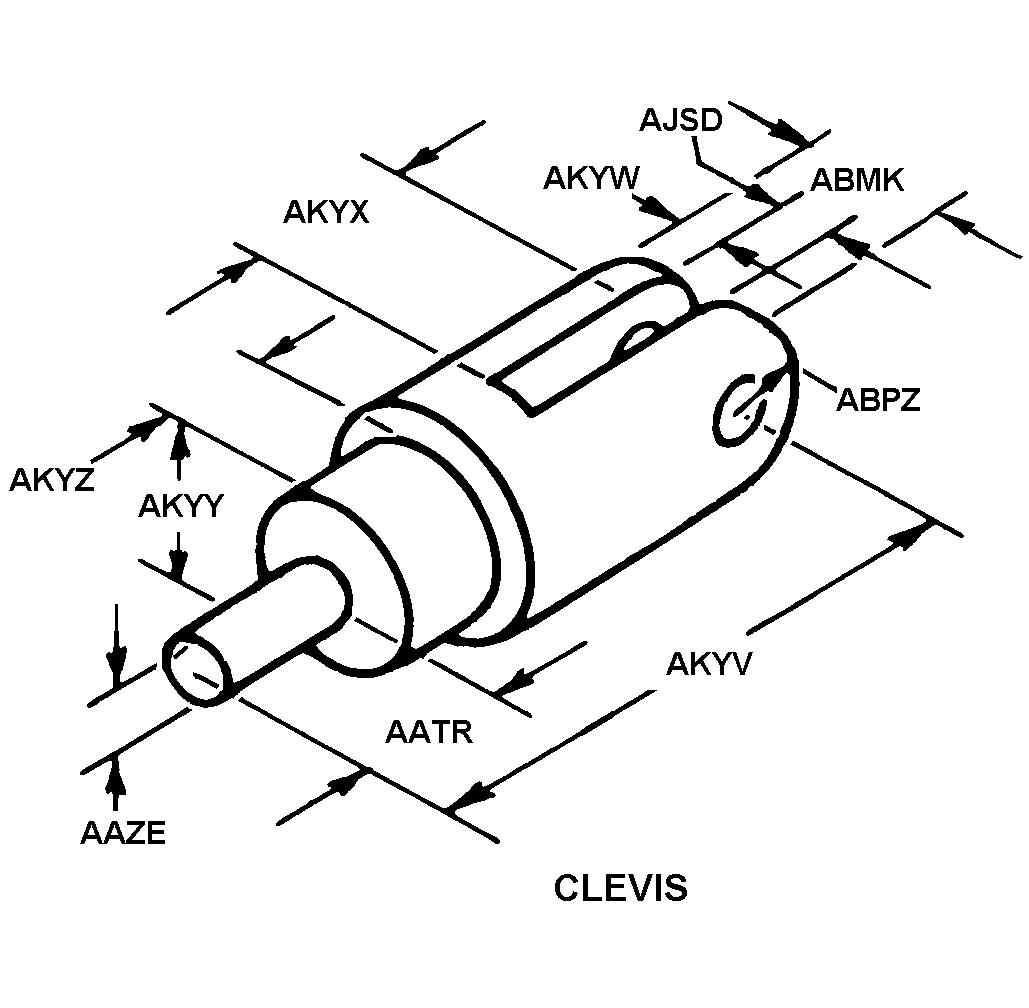

Drawings & Photos | NSN 5340-00-629-8903
Cross Reference | NSN 5340-00-629-8903
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1788006 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-629-8903
Technical Data | NSN 5340-00-629-8903
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/9 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 14 CLEVIS |
| SHANK LENGTH | 0.812 INCHES NOMINAL |
| SHANK DIAMETER | 0.310 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| END RADIUS | 0.250 INCHES NOMINAL |
| FORK SPAN WIDTH | 0.204 INCHES NOMINAL |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 1.750 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.148 INCHES NOMINAL |
| FORK DEPTH | 0.312 INCHES NOMINAL |
| SHANK SHOULDER DIAMETER | 0.500 INCHES NOMINAL |
| SHANK SHOULDER LENGTH | 0.532 INCHES NOMINAL |
| HOLE DIAMETER | 0.188 INCHES MINIMUM AND 0.193 INCHES MAXIMUM |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 1788006 |
