Product Details | HELICAL COMPRESSION SPRING SEAT
5340-00-628-7408 A circular item, usually having a flat or grooved flange, boss(es), and/or counterbore designed to accommodate the end of the spring. It is used to position the spring, but does not encase the spring or restrain lateral motion. It may be used in conjunction with a RETAINER, HELICAL COMPRESSION SPRING. Excludes WASHER (1), (as modified); SEAT, BALL SOCKET and HOLDER, SPRING. See also ROTOR, ENGINE POPPET VALVE.
Part Alternates: 537854, 5340-00-628-7408, 00-628-7408, 5340006287408, 006287408
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-628-7408 | 24328 ( SEAT, HELICAL COMPRESSION SPRING ) |

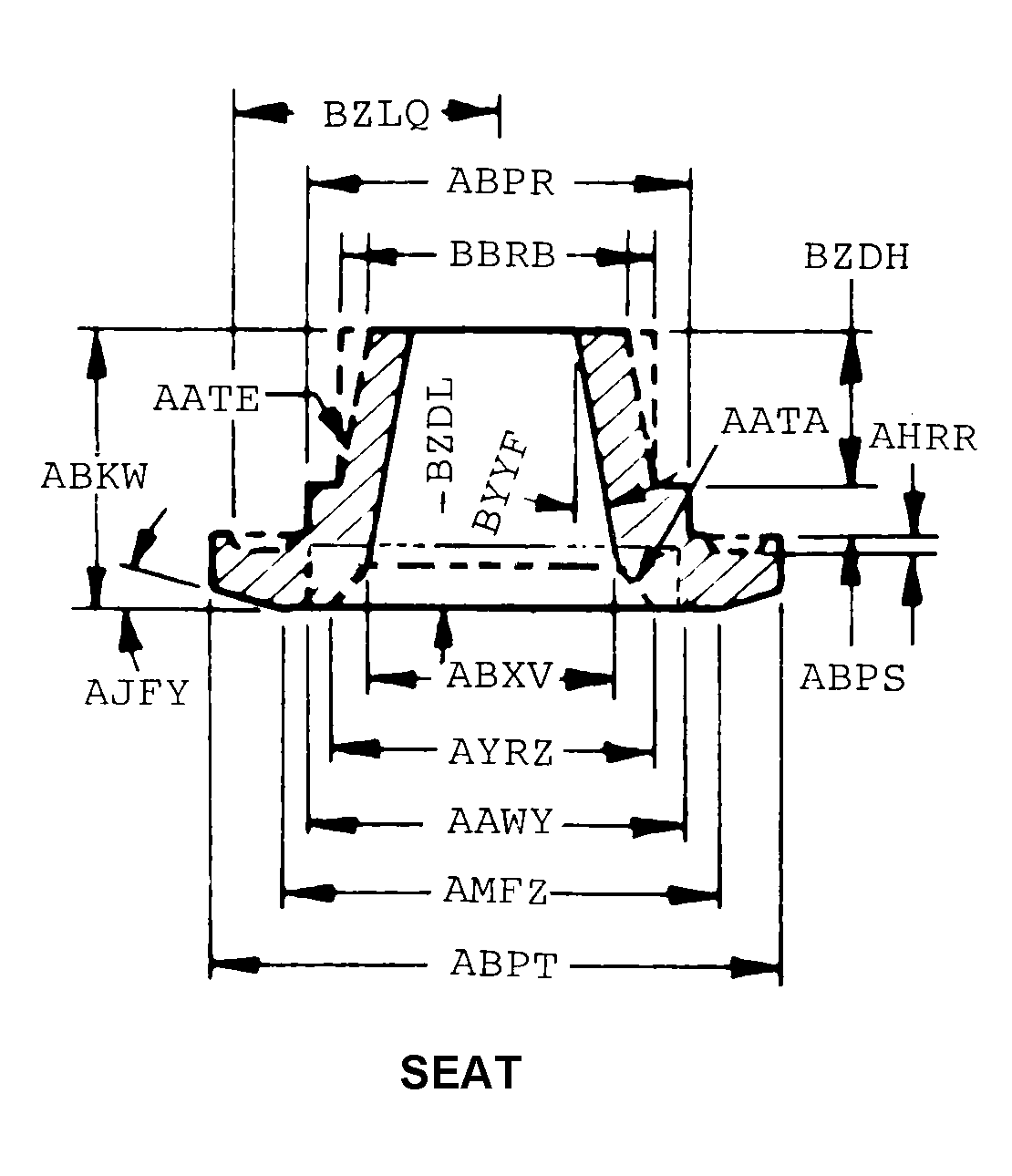

Drawings & Photos | NSN 5340-00-628-7408
Cross Reference | NSN 5340-00-628-7408
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 537854 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-628-7408
Related Products | NSN 5340-00-628-7408
Technical Data | NSN 5340-00-628-7408
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AMS 6415 |
| MATERIAL HARDNESS RATING | 32.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | N7 SEAT |
| OVERALL HEIGHT | 2.6450 INCHES MINIMUM AND 2.6550 INCHES MAXIMUM |
| END DIAMETER | 1.0800 INCHES NOMINAL |
| FIRST STEP DIAMETER | 1.7050 INCHES NOMINAL |
| SECOND STEP DIAMETER | 2.2000 INCHES NOMINAL |
| BORE DIAMETER | 1.1250 INCHES MINIMUM AND 1.1300 INCHES MAXIMUM |
| RIDGE HEIGHT | 0.2500 INCHES MINIMUM AND 0.3000 INCHES MAXIMUM |
| SEAT ANGLE IN DEG | 7.0 |
| DESIGN TYPE | SOLID |
| SPECIAL FEATURES | NOT CASEHARDENED |
| MANUFACTURERS CODE | 73030 |
| DESIGN CONTROL REFERENCE | 537854 |
Restrictions/Controls & Freight Information | NSN 5340-00-628-7408
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
