NSN 5340-00-598-9833 668410FR, 668-4-10FR, 00-598-9833
Product Details | LINE SUPPORTING STRAP
5340-00-598-9833 A flexible strap, furnished with a buckle, specificifically designed to support other items, such as cable(s), wire(s), tube(s), and the like. The buckle may be permanently assembled and may be provided with a mounting feature. The strap may be used to bridge a channel by mounting the buckle and strap separately. Excludes CLAMP, LOOP; STRAP, RETAINING; STRAP, LEATHER; and STRAP, WEBBING.20253400020Hardware, Commercial59750032Electrical Hardware and Supplies
Part Alternates: 668410FR, 668-4-10FR, 5340-00-598-9833, 00-598-9833, 5340005989833, 005989833
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-598-9833 | 22129 ( STRAP, LINE SUPPORTING ) |

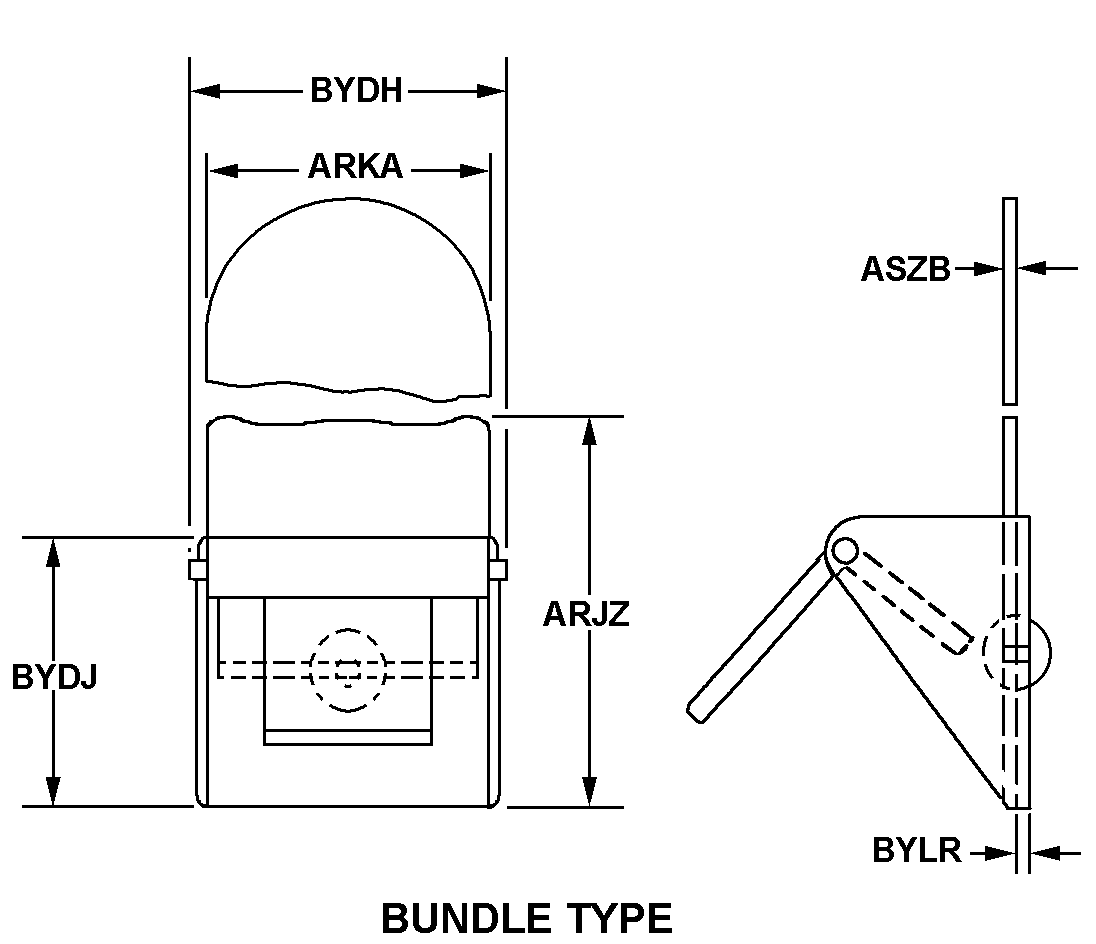

Drawings & Photos | NSN 5340-00-598-9833
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-598-9833
Related Products | NSN 5340-00-598-9833
Technical Data | NSN 5340-00-598-9833
| Characteristic | Specifications |
|---|---|
| STRAP MATERIAL | FIBERGLASS, SYNTHETIC RUBBER IMPREGNATED |
| BUCKLE MATERIAL | STEEL |
| BUCKLE SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | J2 BUNDLE TYPE |
| STRAP LENGTH | 10.000 INCHES NOMINAL |
| STRAP WIDTH | 0.625 INCHES NOMINAL |
| STRAP THICKNESS | 0.063 INCHES NOMINAL |
| BUCKLE OVERALL WIDTH | 0.938 INCHES NOMINAL |
| BUCKLE LENGTH | 0.438 INCHES NOMINAL |
| BUCKLE MATERIAL THICKNESS | 0.035 INCHES NOMINAL |
| ANTIABRASION PAD | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 5340-00-598-9833
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 157170 | PLASTIC/RUBR STRAPS/ROPE/CORD/STRIP |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-598-9833
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
