NSN 5340-00-598-3218 7104, 00-598-3218, 005983218
Product Details | ACCESS COVER
5340-00-598-3218 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 7104, 5340-00-598-3218, 00-598-3218, 5340005983218, 005983218
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-598-3218 | 29785 ( COVER, ACCESS ) |
Drawings & Photos | NSN 5340-00-598-3218
Cross Reference | NSN 5340-00-598-3218
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7104 | 81601 | NORFOLK NAVAL SHIPYARD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-598-3218
Technical Data | NSN 5340-00-598-3218
| Characteristic | Specifications |
|---|---|
| PERIPHERAL SHAPE STYLE | 7 RECTANGLE, MULTI HOLES |
| WIDTH | 4.562 INCHES NOMINAL |
| LENGTH | 31.812 INCHES NOMINAL |
| DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG LENGTH | 1.969 INCHES NOMINAL |
| DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG WIDTH | 2.188 INCHES NOMINAL |
| HOLE QUANTITY ALONG LENGTH | 4 |
| CORNER RADIUS | 1.375 INCHES NOMINAL |

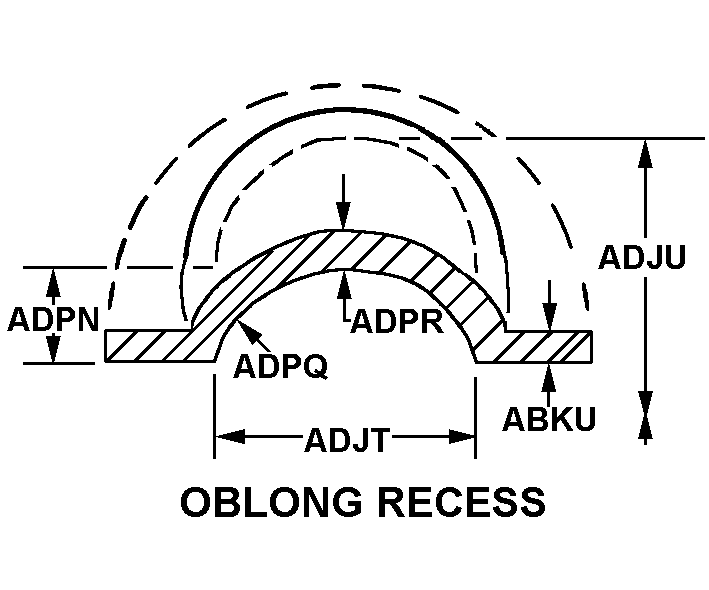

| CROSS-SECTIONAL SHAPE STYLE | 4 OBLONG RECESS |
| FLANGE THICKNESS | 0.078 INCHES NOMINAL |
| INSIDE WIDTH | 3.000 INCHES NOMINAL |
| INSIDE LENGTH | 30.250 INCHES NOMINAL |
| FIRST RECESS INSIDE HEIGHT | 0.625 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 3.750 INCHES NOMINAL |
| BODY THICKNESS | 0.078 INCHES NOMINAL |
| MATERIAL | STEEL |
| SECURING DEVICE TYPE | THREADED FASTENER |
| MOUNTING OPENING SHAPE STYLE | 1 UNTHREADED HOLE |
| HOLE DIAMETER | 0.531 INCHES NOMINAL |
| FSC APPLICATION DATA | DIESEL ENGINES |
| MANUFACTURERS CODE | 81601 |
| DESIGN CONTROL REFERENCE | 7104 |
Restrictions/Controls & Freight Information | NSN 5340-00-598-3218
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-598-3218
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
