Product Details | HAND CRANK

5340-00-598-3250 An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR.20229900045Miscellaneous Engine Accessories, Nonaircraft53400020Hardware, Commercial

Part Alternates: 8343453, 5340-00-598-3250, 00-598-3250, 5340005983250, 005983250

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-598-3250

Drawings & Photos | NSN 5340-00-598-3250


Cross Reference | NSN 5340-00-598-3250

Part Number Cage Code Manufacturer
8343453 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-598-3250

Technical Data | NSN 5340-00-598-3250

Characteristic Specifications
MATERIAL AND LOCATION IRON,MALLIABLE,QQ-I-666,GRADE 2,ARM STEEL,QQ-S-630,FSC1015 TO 1025,HANDLE STEEL,QQ-T-830,MT1010 TO MTX1020,BUSHING
SURFACE TREATMENT AND LOCATION ZINC, QQ-Z-325, TYPE 2, CLASS 2 HANDLE
ARM STYLE 7 STRAIGHT
CRANK THROW LENGTH 9.000 INCHES NOMINAL
DRIVE END STYLE 106 EXTERNAL
DRIVE END OUTSIDE DIAMETER 1.750 INCHES NOMINAL
SHANK HEIGHT 1.750 INCHES NOMINAL
DRIVE FACILITY STYLE 123 ROUND
INSIDE DIAMETER 0.686 INCHES MINIMUM AND 0.689 INCHES MAXIMUM
CRANK OVERALL LENGTH 16.250 INCHES NOMINAL
MOUNTING FACILITY UNTHREADED MOUNTING HOLES
MOUNTING FACILITY DIAMETER 1.000 INCHES MINIMUM AND 1.004 INCHES MAXIMUM
HANDLE MOUNTING METHOD PIN

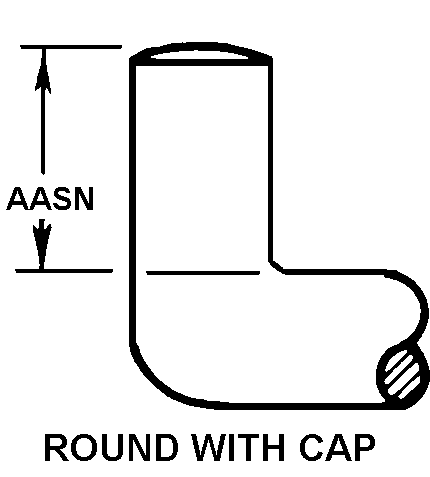

HANDLE STYLE 65 ROUND WITH CAP
HANDLE LENGTH 5.500 INCHES NOMINAL
HANDLE ROTATING FEATURE INCLUDED
RATCHET NOT INCLUDED
