NSN 5340-00-597-8594 AN66510L, AN665-10L, T5683
Product Details | ROD END CLEVIS
5340-00-597-8594 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: AN66510L, AN665-10L, T5683, 5340-00-597-8594, 00-597-8594, 5340005978594, 005978594
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-597-8594 | 03796 ( CLEVIS, ROD END ) |

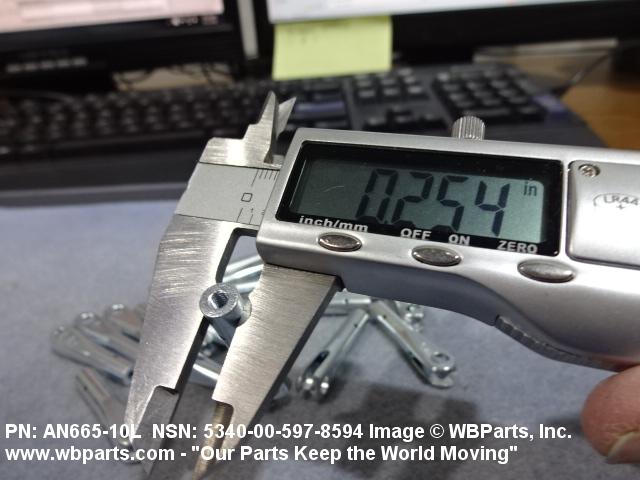

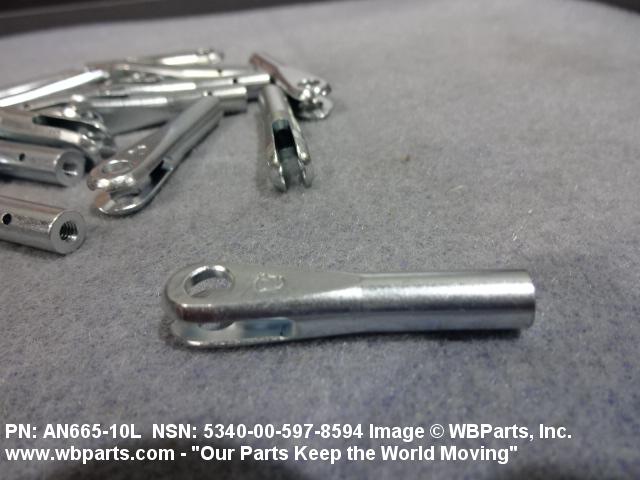

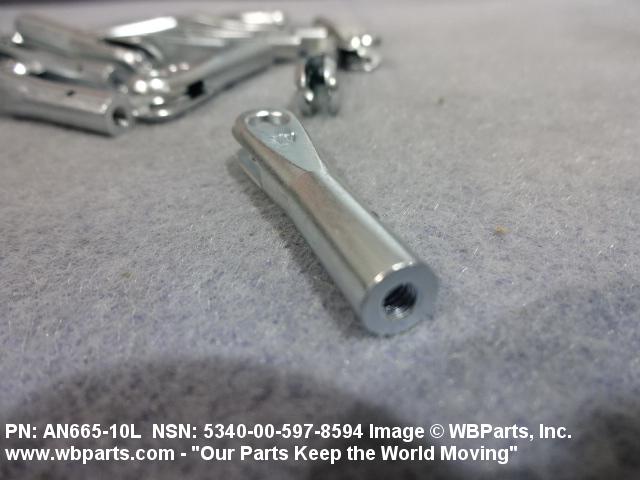

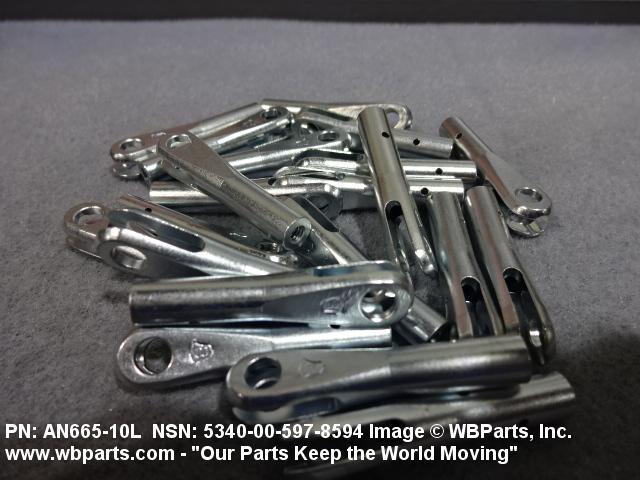

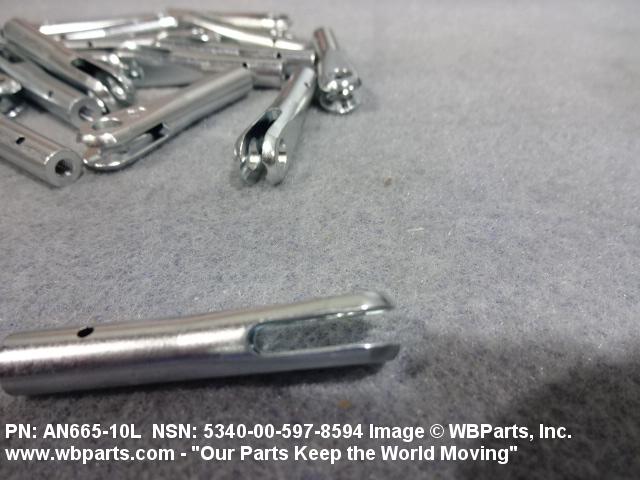

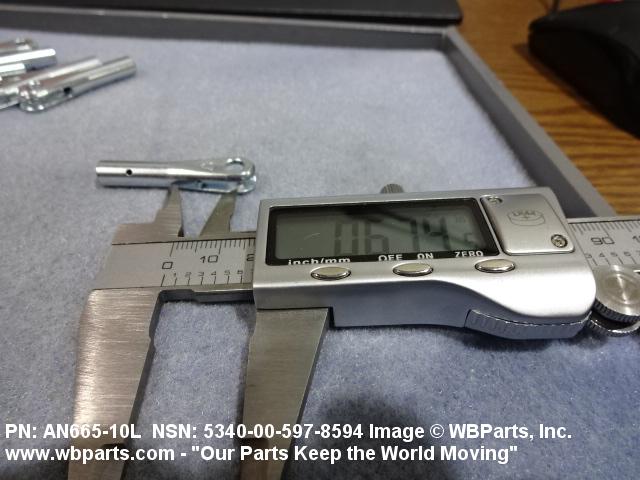

Drawings & Photos | NSN 5340-00-597-8594
Demand History | NSN 5340-00-597-8594
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN66510L | 2023-03-86 | 1 | US |
| AN66510L | 2021-04-98 | 5 | United States |
| AN66510L | 2021-04-98 | 10 | United States |
| AN66510L | 2020-11-318 | 20 | US |
| AN66510L | 2020-03-64 | 2 | United States |
| AN66510L | 2019-02-57 | 25 | United States |
| AN66510L | 2016-11-321 | 10 | United States |
| 5340-00-597-8594 | 2016-04-95 | 27 | DIBBS |
| 5340-00-597-8594 | 2016-03-87 | 27 | DIBBS |
| AN66510L | 2014-01-15 | 3 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-597-8594
Related Products | NSN 5340-00-597-8594
Technical Data | NSN 5340-00-597-8594
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| METALLIC HARDNESS RATING | 26.0 MINIMUM ROCKWELL C AND 31.0 MAXIMUM ROCKWELL C |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.138 INCHES ROD CONNECTION |
| THREAD CLASS | 3B ROD CONNECTION |
| THREAD DIRECTION | LEFT-HAND ROD CONNECTION |
| THREAD LENGTH | 0.203 INCHES MINIMUM AND 0.297 INCHES MAXIMUM ROD CONNECTION |
| STYLE DESIGNATOR | 36 CLEVIS |
| SHANK LENGTH | 0.673 INCHES MINIMUM AND 0.783 INCHES MAXIMUM |
| SHANK DIAMETER | 0.250 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| OVERALL WIDTH | 0.255 INCHES MINIMUM AND 0.265 INCHES MAXIMUM |
| END RADIUS | 0.188 INCHES NOMINAL |
| FORK SPAN WIDTH | 0.109 INCHES MINIMUM AND 0.119 INCHES MAXIMUM |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 1.298 INCHES MINIMUM AND 1.328 INCHES MAXIMUM |
| FORK ARM THICKNESS | 0.068 INCHES MINIMUM AND 0.073 INCHES MAXIMUM |
| FORK DEPTH | 0.375 INCHES NOMINAL |
| SECURING PIN HOLE DIAMETER | 0.046 INCHES NOMINAL |
| DISTANCE FROM CENTER OF SECURING PIN HOLE TO ROD END | 0.313 INCHES NOMINAL |
| HOLE DIAMETER | 0.190 INCHES MINIMUM AND 0.192 INCHES MAXIMUM |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN665-10L |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | T5683 |
Restrictions/Controls & Freight Information | NSN 5340-00-597-8594
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094140 | CLEVISES IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-597-8594
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
