NSN 5340-00-584-6543 C26941561, C2694-156-1, 28G1466
Product Details | SPLIT TUBULAR CLIP
5340-00-584-6543 A tubular item of resilient metallic material, split along its entire length and having a flange at one end, usually with projecting arms or prongs extending from the body. It is designed to be inserted into a hole in a panel and held in place by spring tension. It is used to retain unthreaded items such as a pin or a rivet.
Part Alternates: C26941561, C2694-156-1, 28G1466, 5340-00-584-6543, 00-584-6543, 5340005846543, 005846543
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-584-6543 | 19770 ( CLIP, SPLIT TUBULAR ) |
Drawings & Photos | NSN 5340-00-584-6543
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-584-6543
Related Products | NSN 5340-00-584-6543
Technical Data | NSN 5340-00-584-6543
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, SAE 1060 |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |

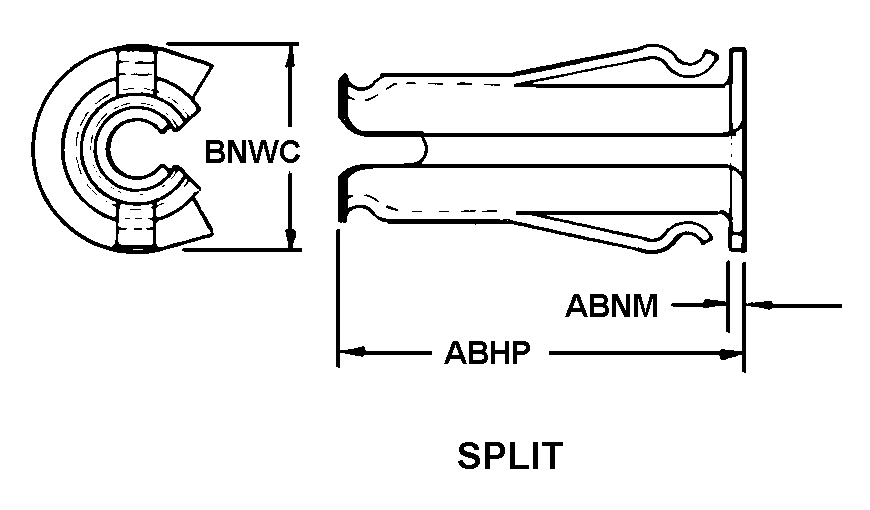

| STYLE DESIGNATOR | D2 SPLIT |
| OVERALL LENGTH | 0.469 INCHES NOMINAL |
| THICKNESS | 0.012 INCHES NOMINAL |
| DISTANCE ACROSS FLANGE | 0.312 INCHES NOMINAL |
| PANEL THICKNESS ACCOMMODATED | 0.188 INCHES NOMINAL |
| SHANK SIZE ACCOMMODATED | 0.187 INCHES NOMINAL |
| PANEL HOLE SIZE FOR WHICH DESIGNED | 0.228 INCHES NOMINAL |
| MANUFACTURERS CODE | 06481 |
| DESIGN CONTROL REFERENCE | 28G1466 |
Restrictions/Controls & Freight Information | NSN 5340-00-584-6543
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
