Product Details | LOOP CLAMP
5340-00-584-6556 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: MS21104C10, MS21104D10, MS21919DG10, MS21919WDG10, AS21919WDG10, JM44LC33WD10R, TA025035WDC10HW, TA1718WD10X, 2822696, 09A067WD10R, 10082539, 577R388H09, 815WD10R, 890AN0057, 9463511810, 946351-1810, 5340-00-584-6556, 00-584-6556, 5340005650004 , 5340005846556, 005846556, 157618236
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-584-6556 | 17532 ( CLAMP, LOOP ) |

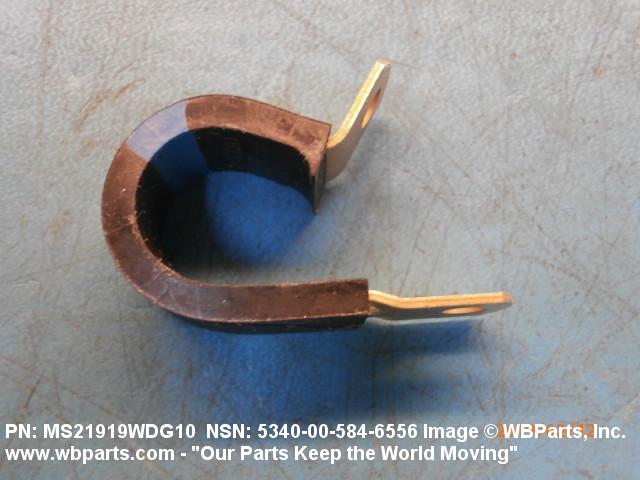

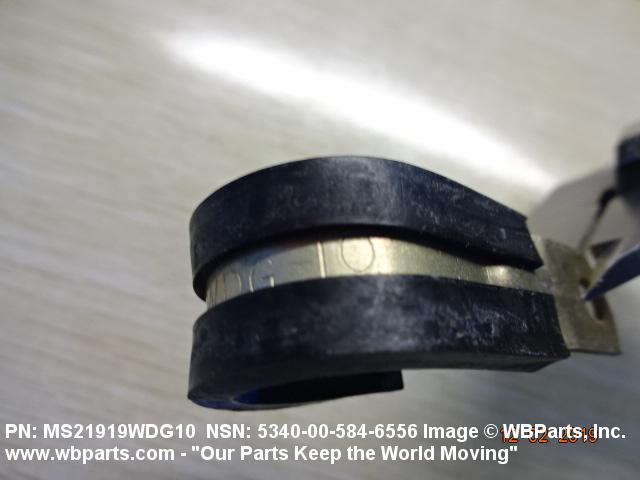

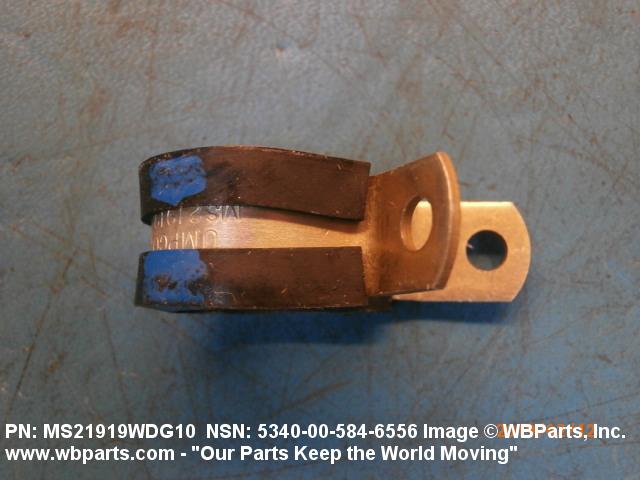

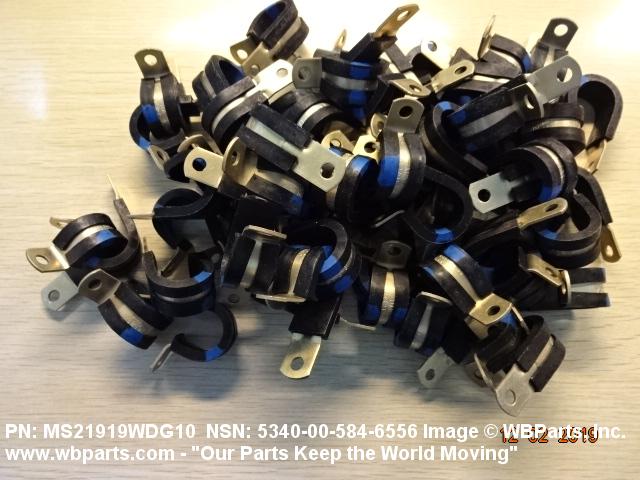

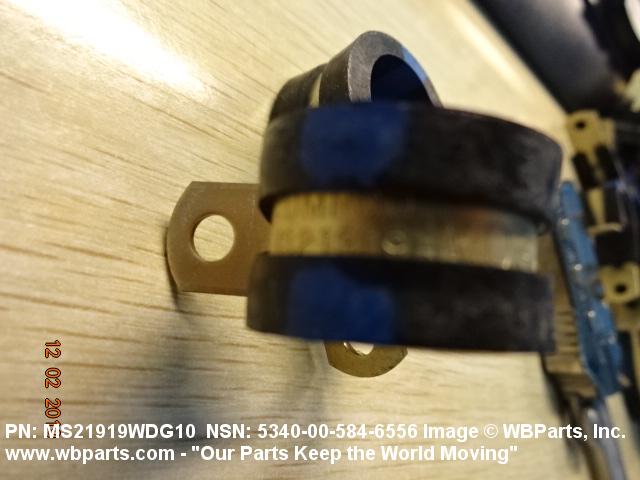

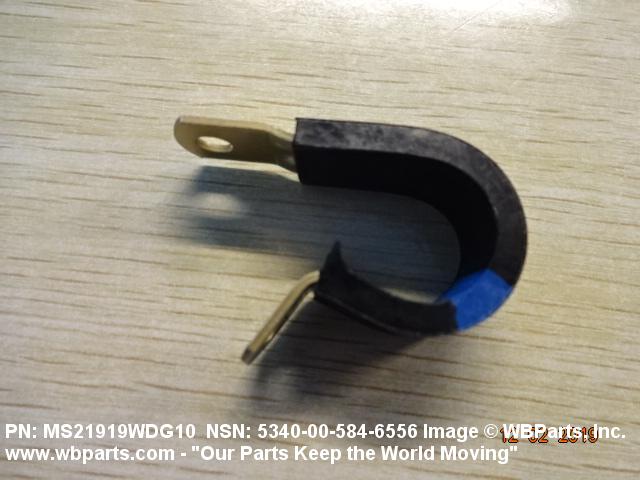

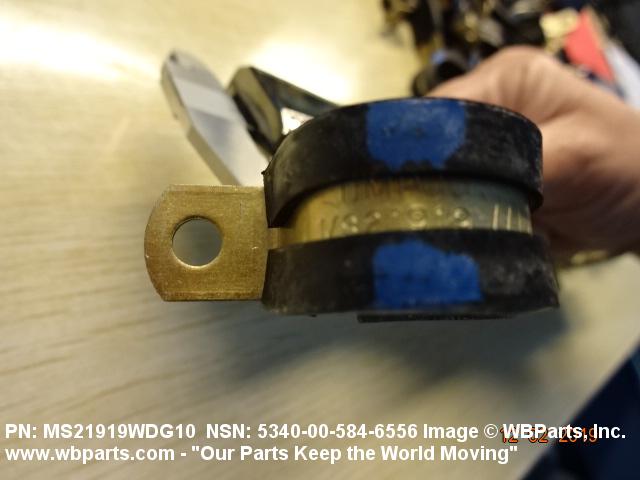

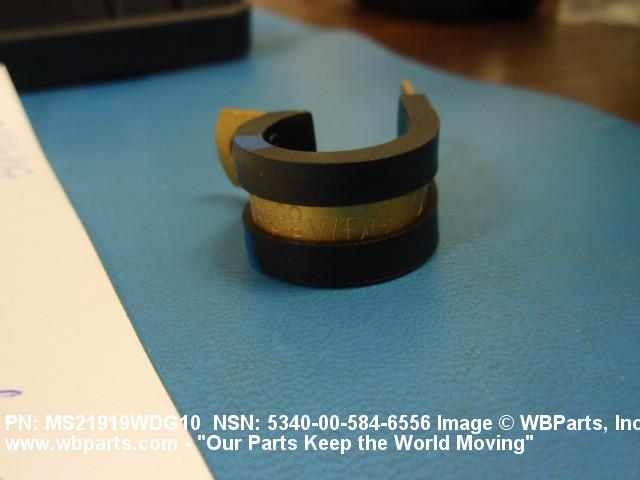

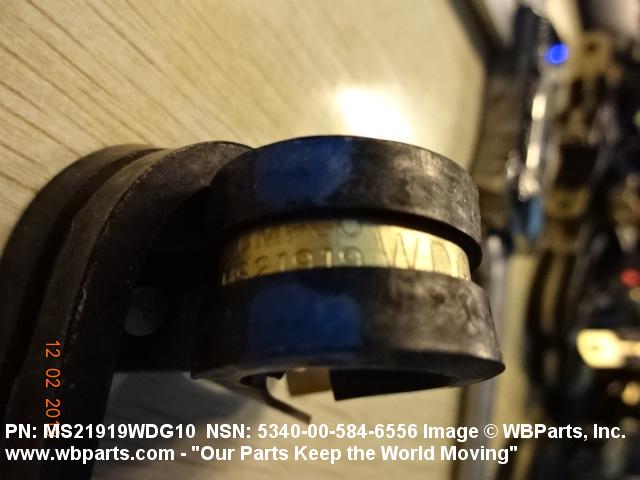

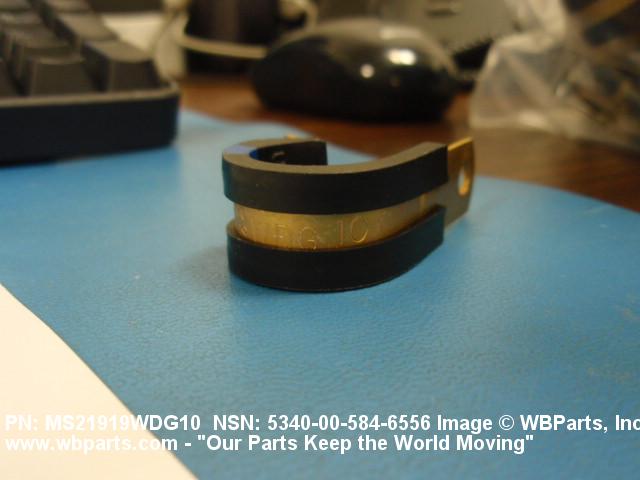

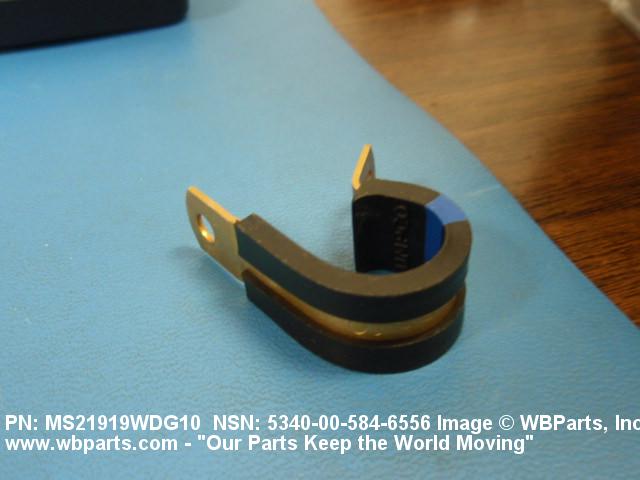

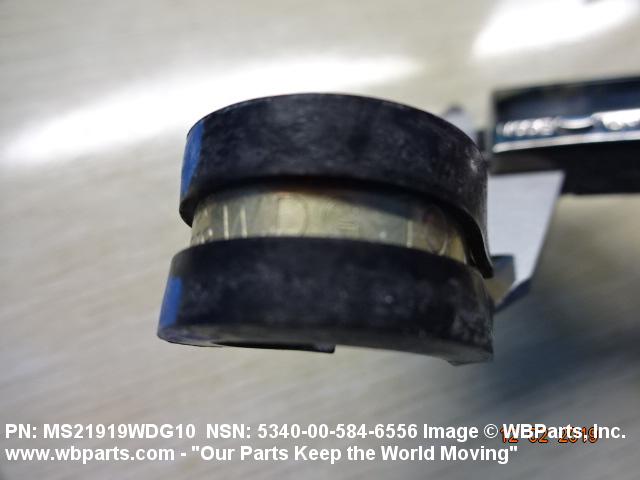

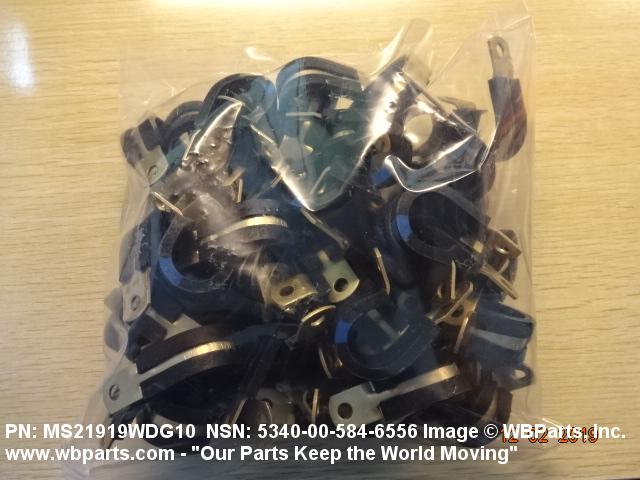

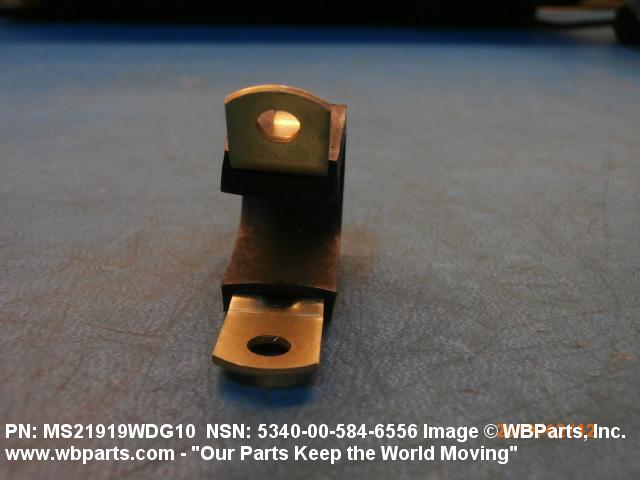

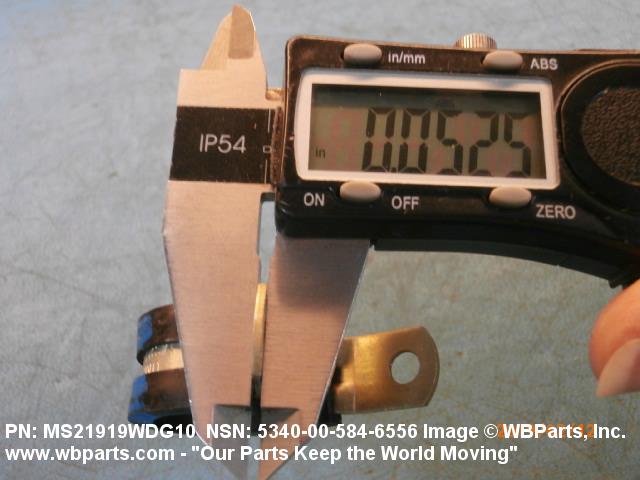

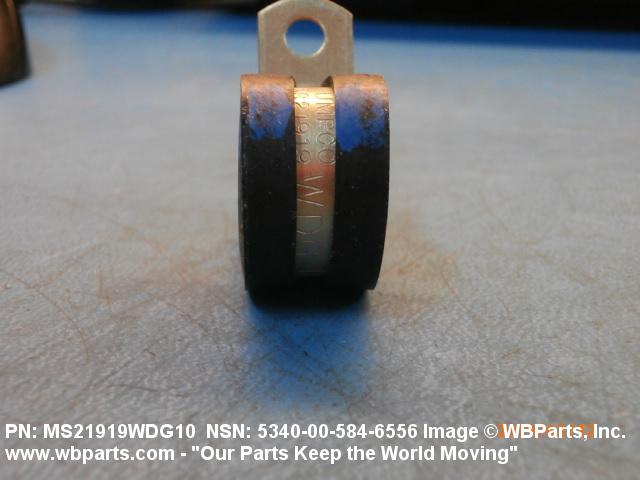

Drawings & Photos | NSN 5340-00-584-6556
Demand History | NSN 5340-00-584-6556
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21919WDG10 | 2024-05-23 | 80 | AE |
| AS21919WDG10 | 2024-05-16 | 20 | United States |
| 5340-00-584-6556 | 2024-03-01 | 400 | US |
| MS21919WDG10 | 2023-11-10 | 309 | us |
| MS21919WDG10 | 2023-10-31 | 140 | United States |
| MS21919WDG10 | 2023-08-03 | 100 | India |
| MS21919WDG10 | 2023-05-29 | 5 | Germany |
| MS21919WDG10 | 2023-01-11 | 305 | IN |
| AS21919WDG10 | 2020-10-22 | 4 | United States |
| AS21919WDG10 | 2020-04-16 | 14 | us |
| 5340-00-584-6556 | 2020-04-08 | 200 | United States |
| AS21919WDG10 | 2020-02-13 | 6 | United States |
| 5340-00-584-6556 | 2020-01-13 | 320 | Taiwan |
| MS21919WDG10 | 2019-09-05 | 250 | Sri Lanka |
| 5340-00-584-6556 | 2019-06-14 | 135 | United States |
| AS21919WDG10 | 2019-02-11 | 20 | Lebanon |
| MS21919WDG10 | 2019-02-06 | 250 | United States |
| 5340-00-584-6556 | 2018-09-07 | 150 | US |
| MS21919WDG10 | 2017-05-01 | 100 | US |
| 5340-00-584-6556 | 2017-02-28 | 100 | Pakistan |
| 5340-00-584-6556 | 2017-02-27 | 100 | Pakistan |
| MS21919WDG10 | 2017-02-09 | 30 | United States |
| AS21919WDG10 | 2015-08-05 | 90 | United States |
| AS21919WDG10 | 2015-07-09 | 4 | United States |
| MS21919WDG10 | 2015-06-07 | 2 | AE |
| 5340-00-584-6556 | 2015-06-05 | 75 | US |
| MS21919WDG10 | 2015-04-17 | 100 | US |
| MS21919WDG10 | 2015-04-01 | 5 | Greece |
| MS21919WDG10 | 2014-07-28 | 100 | CA |
| JM44LC33WD10R | 2014-03-05 | 5000 | United Kingdom |
| 10082539 | 2013-11-19 | 16 | United States |
| MS21919WDG10 | 2013-10-03 | 550 | PK |
| MS21919WDG10 | 2013-09-16 | 2 | United States |
| AS21919WDG10 | 2013-06-11 | 6 | United States |
| MS21919WDG10 | 2012-11-05 | 50 | |
| MS21919DG10 | 2012-10-29 | 300 | United States |
| MS21919WDG10 | 2012-10-29 | 300 | United States |
| MS21919WDG10 | 2012-07-05 | 10 | KR |
| MS21919WDG10 | 2012-04-02 | 66 | US |
| AS21919WDG10 | 2012-03-22 | 100 | US |
| MS21919WDG10 | 2011-07-27 | 60 | CL |
| MS21919WDG10 | 2011-07-11 | 60 | CL |
| 5340-00-584-6556 | 2011-06-01 | 9 | US |
| MS21919WDG10 | 2011-05-31 | 100 | Canada |
| MS21104C10 | 2011-04-05 | 32 | United States |
| MS21919WDG10 | 2011-01-19 | 100 | Canada |
| MS21919DG10 | 2010-11-29 | 383 | |
| 5340-00-584-6556 | 2010-09-11 | 25 | US |
| MS21919WDG10 | 2010-01-05 | 50 | United States |
| MS21104C10 | 2009-09-28 | 25 | EC |
| MS21919WDG10 | 2009-08-18 | 284 | United States |
| MS21919WDG10 | 2009-06-19 | 10 | United States |
| MS21919WDG10 | 2009-02-19 | 100 | China |
| 5340-00-584-6556 | 2008-05-15 | 500 | US |
| MS21919WDG10 | 2006-07-18 | 50 | US |
Cross Reference | NSN 5340-00-584-6556
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 09A067WD10R | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 157618236 | A0199 | OTO MELARA SPA |
| 2822696 | 001JK | EMBRAER S/A |
| 2822696 | FB459 | EMBRAER AVIATION INTERNATIONAL |
| 2822696 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 5340005650004 | A00AM | E.C.A ETABLISSEMENT CENTRAL DESAPPROVISIONNEMENTS DES FORCES |
| 577R388H09 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 815WD10R | 83930 | TRANSDIGM INC DBA ADEL WIGGINS GROUP-COMMERCIAL |
| 890AN0057 | A0199 | OTO MELARA SPA |
| 946351-1810 | 13975 | CONNER TOOL AND CUTTER CO |
| AS21919WDG10 | 01CM4 | CENTON INDUSTRIES INC. DIV CENTON WEST |
| AS21919WDG10 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| JM44LC33WD10R | 22175 | J & M PRODUCTS, INC. |
| MS21104C10 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS21104D10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21104D10 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS21919DG10 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS21919WDG10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| TA025035WDC10HW | 84971 | KIRKHILL-TA CO. DBA TA DIVISION |
| TA1718WD10X | 84971 | KIRKHILL-TA CO. DBA TA DIVISION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-00-584-6556
Related Products | NSN 5340-00-584-6556
5340-00-584-6559, 5340-00-584-6560, 5340-00-584-6561, 5340-00-584-6562, 5340-00-584-6563
Technical Data | NSN 5340-00-584-6556
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER CHLOROPRENE CLASS CR CUSHION |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5 FED SPEC SINGLE MATERIAL RESPONSE BAND AMS 3209 ASSN STD SINGLE MATERIAL RESPONSE CUSHION |
| SURFACE TREATMENT | CHROMATE BAND |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE BAND |
| STYLE DESIGNATOR | A5 OFFSET MOUNT |

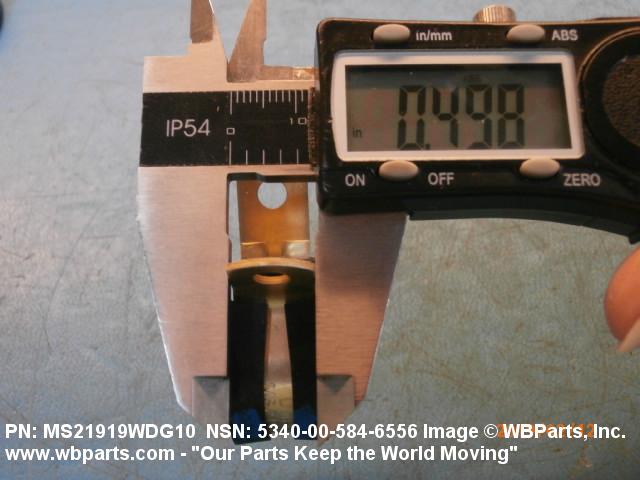

| OVERALL WIDTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.050 INCHES NOMINAL |

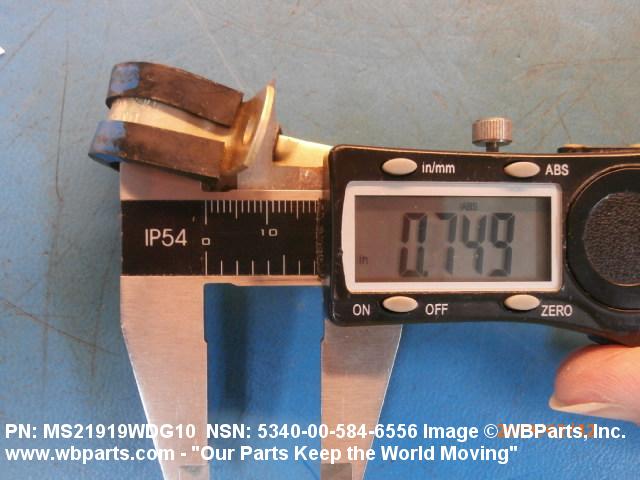

| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 0.768 INCHES MINIMUM AND 0.798 INCHES MAXIMUM |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 1.001 INCHES NOMINAL |

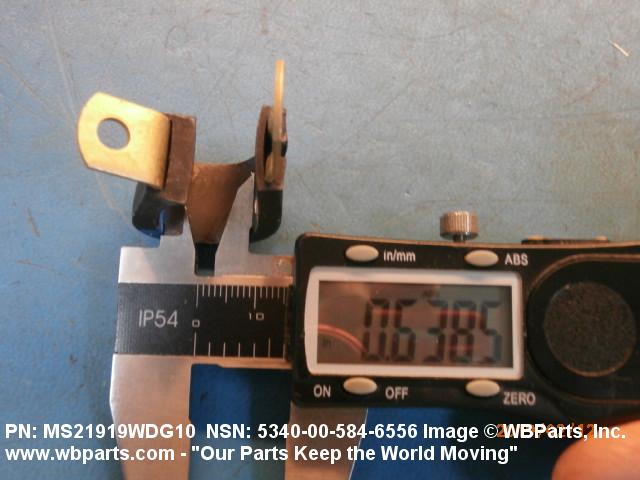

| LOOP INSIDE DIAMETER | 0.610 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |

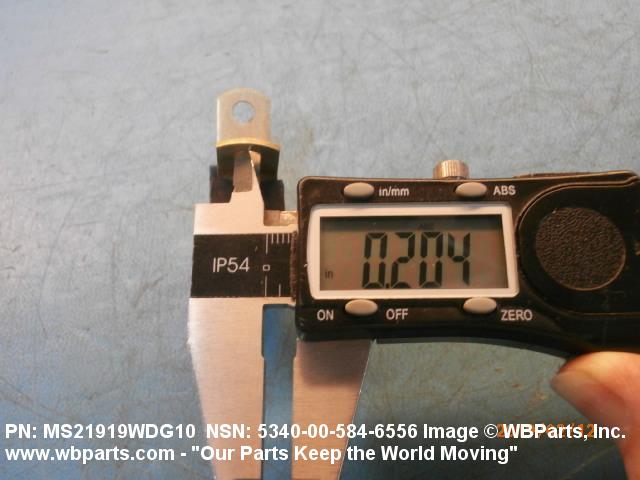

| DIAMETER | 0.204 INCHES NOMINAL |
| CUSHIONING ENVIRONMENTAL PROTECTION | WEATHER RESISTANT |
Restrictions/Controls & Freight Information | NSN 5340-00-584-6556
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-584-6556
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | GC | TG:UH/60A BLACKHAWK |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
