NSN 5340-00-550-5036 MS20001P57200, MS20001P5-7200, 00-550-5036
Product Details | BUTT HINGE

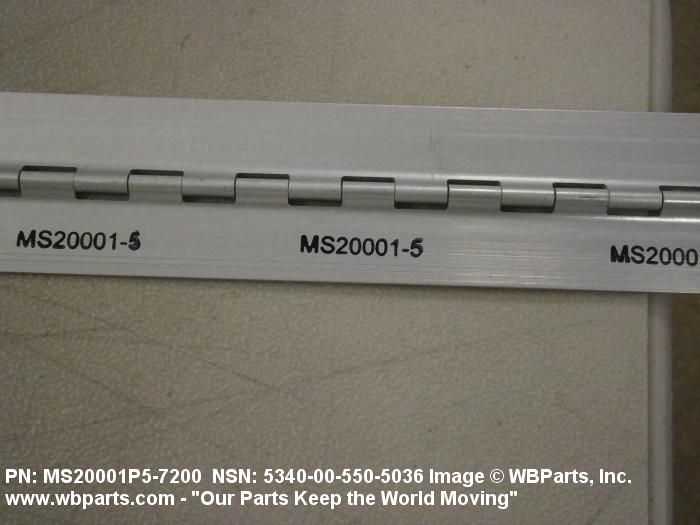

5340-00-550-5036 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: MS20001P57200, MS20001P5-7200, 5340-00-550-5036, 00-550-5036, 5340005505036, 005505036
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-550-5036 | 22894 ( HINGE, BUTT ) |

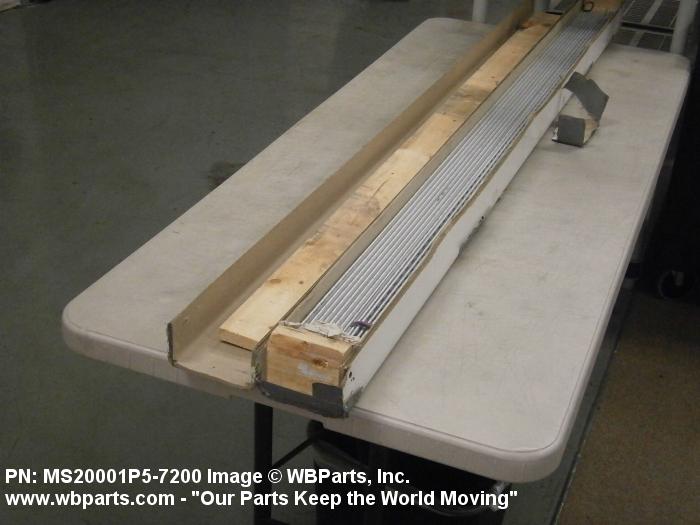

Drawings & Photos | NSN 5340-00-550-5036
Demand History | NSN 5340-00-550-5036
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-550-5036 | 2024-05-17 | 290 | DIBBS |
| 5340-00-550-5036 | 2024-05-06 | 290 | DIBBS |
| 5340-00-550-5036 | 2022-03-13 | 23 | DIBBS |
| MS20001P57200 | 2021-03-11 | 4 | US |
| 5340-00-550-5036 | 2020-10-04 | 140 | DIBBS |
| 5340-00-550-5036 | 2020-06-07 | 49 | DIBBS |
| 5340-00-550-5036 | 2019-04-21 | 170 | DIBBS |
| 5340-00-550-5036 | 2019-01-29 | 219 | DIBBS |
| 5340-00-550-5036 | 2018-11-26 | 345 | DIBBS |
| 5340-00-550-5036 | 2018-07-23 | 219 | DIBBS |
| 5340-00-550-5036 | 2018-07-15 | 219 | DIBBS |
| 5340-00-550-5036 | 2018-04-05 | 345 | DIBBS |
| 5340-00-550-5036 | 2018-03-28 | 345 | DIBBS |
| 5340-00-550-5036 | 2018-02-22 | 50 | us |
| 5340-00-550-5036 | 2017-12-13 | 345 | US |
| 5340-00-550-5036 | 2017-12-07 | 345 | DIBBS |
| 5340-00-550-5036 | 2017-11-29 | 345 | DIBBS |
| 5340-00-550-5036 | 2017-06-06 | 156 | DIBBS |
| 5340-00-550-5036 | 2017-04-25 | 156 | DIBBS |
| 5340-00-550-5036 | 2017-04-16 | 156 | DIBBS |
| 5340-00-550-5036 | 2016-12-07 | 80 | DIBBS |
| 5340-00-550-5036 | 2016-10-26 | 8 | DIBBS |
| 5340-00-550-5036 | 2016-08-07 | 38 | DIBBS |
| 5340-00-550-5036 | 2015-10-22 | 1 | DIBBS-RFPs |
| MS20001P57200 | 2013-07-19 | 50 | United States |
| 5340-00-550-5036 | 2012-08-02 | 73 | DIBBS |
| 5340-00-550-5036 | 2012-06-21 | 79 | DIBBS |
| 5340-00-550-5036 | 2012-01-25 | 46 | DIBBS |
| 5340-00-550-5036 | 2009-09-10 | 297 | DIBBS |
| 5340-00-550-5036 | 2009-07-31 | 115 | DIBBS |
| 5340-00-550-5036 | 2009-05-05 | 450 | DIBBS |
| 5340-00-550-5036 | 2009-04-23 | 182 | DIBBS |
| 5340-00-550-5036 | 2009-03-26 | 38 | DIBBS |
| 5340-00-550-5036 | 2009-01-29 | 155 | DIBBS |
| 5340-00-550-5036 | 2008-06-27 | 600 | DIBBS |
| 5340-00-550-5036 | 2008-06-24 | 600 | DIBBS |
| 5340-00-550-5036 | 2008-03-18 | 1000 | DIBBS |
Cross Reference | NSN 5340-00-550-5036
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20001P5-7200 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-550-5036
Related Products | NSN 5340-00-550-5036
Technical Data | NSN 5340-00-550-5036
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY, QQ-A-200/3, ALLOY 2024, T4 BODY AND STEEL, CORROSION RESISTING PIN |
| SURFACE TREATMENT AND LOCATION | ANODIZED, MIL-A-8625 BODY AND CADMIUM PIN AND OXIDE FILM, MIL-C-5541 BODY |
| STYLE DESIGNATOR | 18 BUTT |

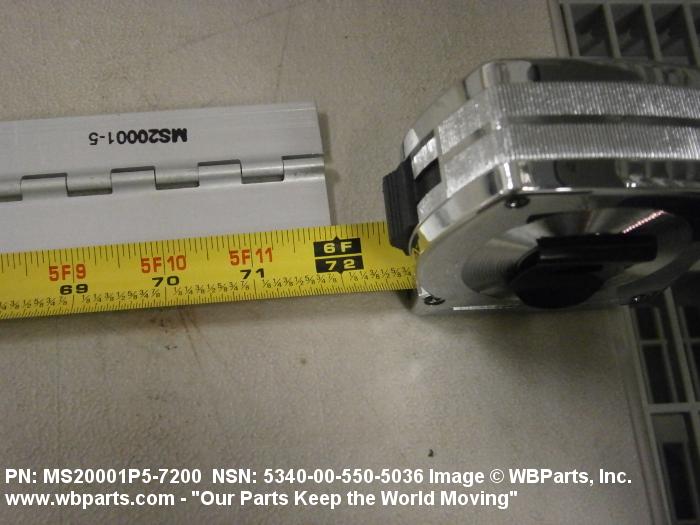

| OVERALL LENGTH | 72.000 INCHES NOMINAL |

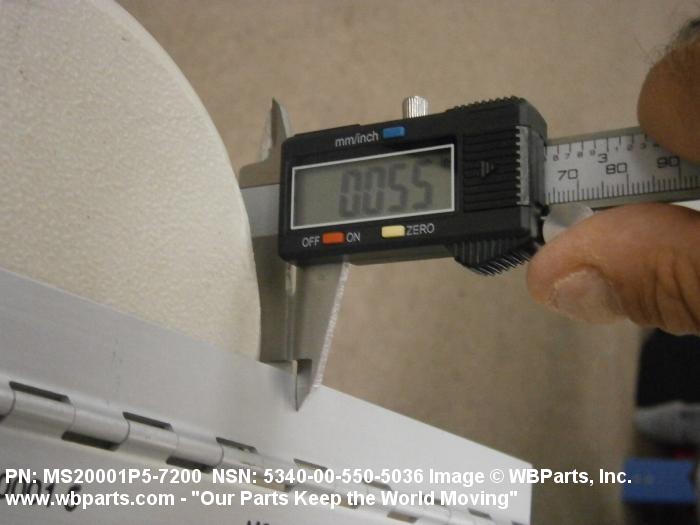

| MATERIAL THICKNESS | 0.044 INCHES MINIMUM AND 0.056 INCHES MAXIMUM |
| PIN DIAMETER | 0.093 INCHES MINIMUM AND 0.098 INCHES MAXIMUM |

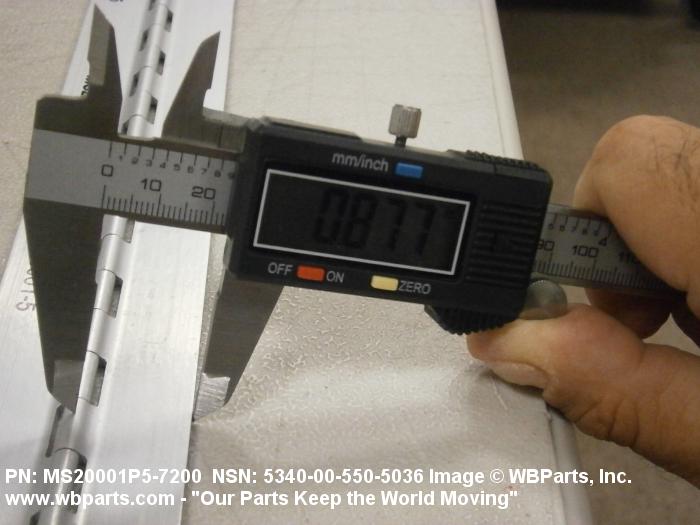

| PIN CENTER TO BODY EDGE DISTANCE | 0.875 INCHES NOMINAL |
