NSN 5340-00-530-5353 AN66521R, AN665-21R, AN665C21R
Product Details | ROD END CLEVIS

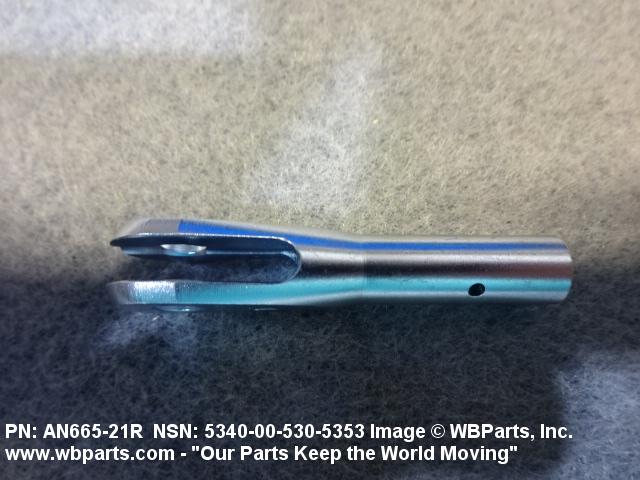

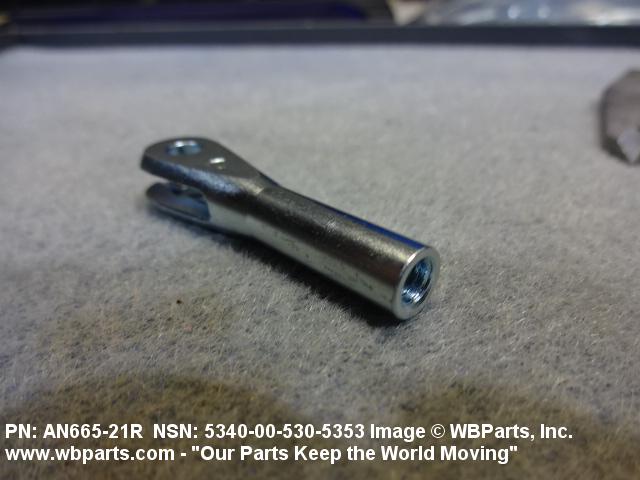

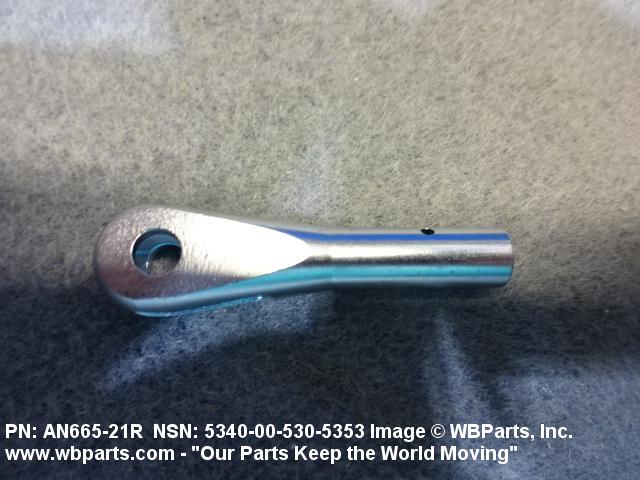

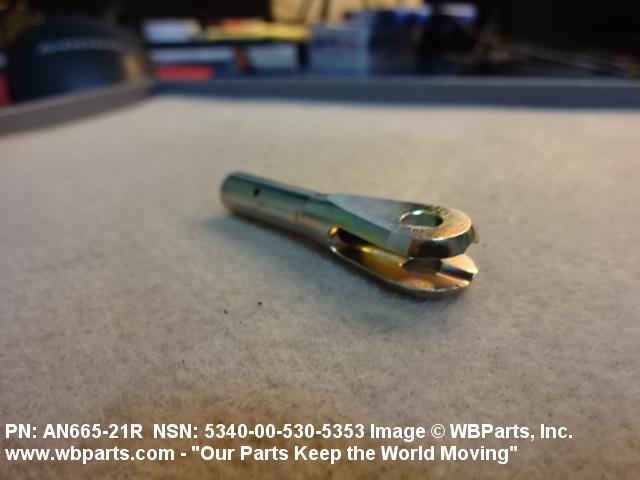

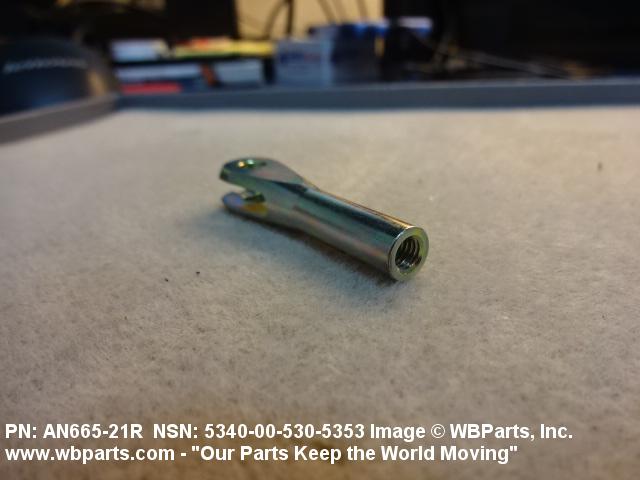

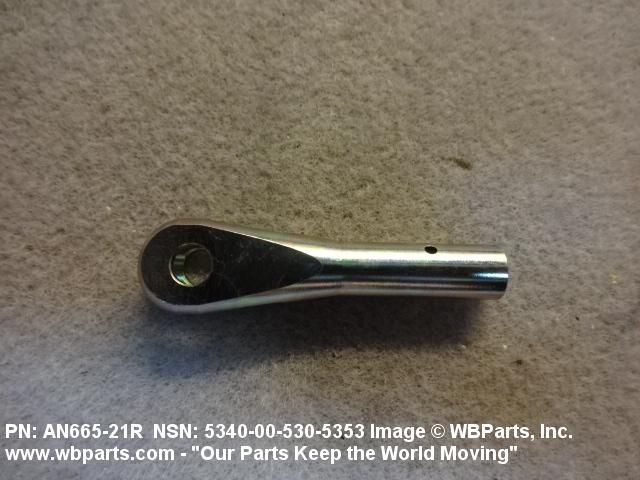

5340-00-530-5353 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: AN66521R, AN665-21R, AN665C21R, 126898B, 488 327, 488327, 80713900, 807139-00, 941.93.28.104, 9419328104, 5340-00-530-5353, 00-530-5353, 5340005305353, 005305353
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-530-5353 | 03796 ( CLEVIS, ROD END ) |

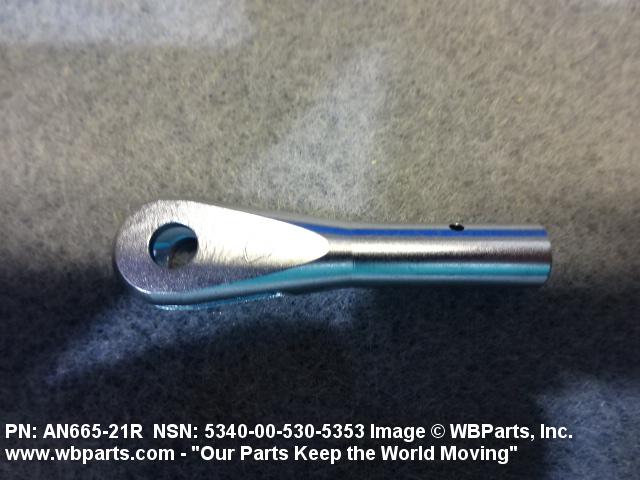

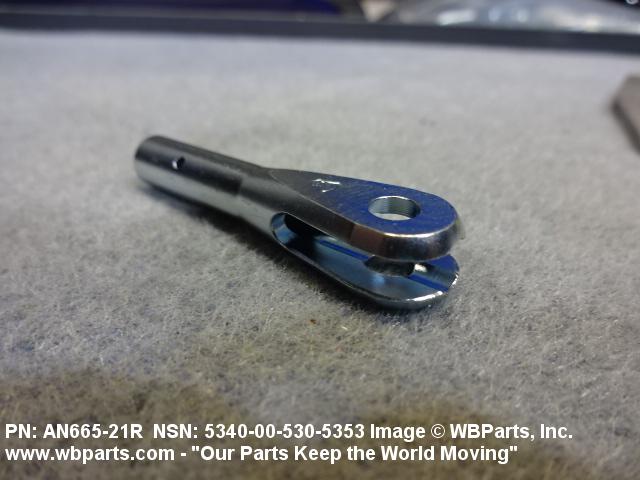

Drawings & Photos | NSN 5340-00-530-5353
Demand History | NSN 5340-00-530-5353
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-530-5353 | 2022-09-255 | 464 | DIBBS |
| AN66521R | 2022-02-48 | 21 | United States |
| AN665-21R | 2018-11-324 | 2 | |
| AN66521R | 2018-10-292 | 2 | South Africa |
| 5340-00-530-5353 | 2018-05-141 | 1 | United States |
| 5340-00-530-5353 | 2016-06-176 | 20 | United States |
| 5340-00-530-5353 | 2015-06-175 | 1288 | DIBBS |
| 5340-00-530-5353 | 2014-04-96 | 969 | DIBBS |
| 5340-00-530-5353 | 2014-02-41 | 1333 | DIBBS |
| 5340-00-530-5353 | 2012-09-265 | 714 | DIBBS |
| 5340-00-530-5353 | 2012-02-39 | 3902 | DIBBS |
| 5340-00-530-5353 | 2011-10-304 | 2 | MANUAL |
| 5340-00-530-5353 | 2008-02-38 | 6 | US |
Cross Reference | NSN 5340-00-530-5353
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 126898B | 45152 | OSHKOSH CORPORATION |
| 126898B | 75Q65 | OSHKOSH DEFENSE, LLC |
| 488 327 | 77294 | PIPER AIRCRAFT INC. |
| 807139-00 | 32345 | DEFENSE REDUCTION AGENCY |
| 941.93.28.104 | S4080 | PILATUS AIRCRAFT LTD |
| AN665-21R | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN665C21R | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-530-5353
Related Products | NSN 5340-00-530-5353
Technical Data | NSN 5340-00-530-5353

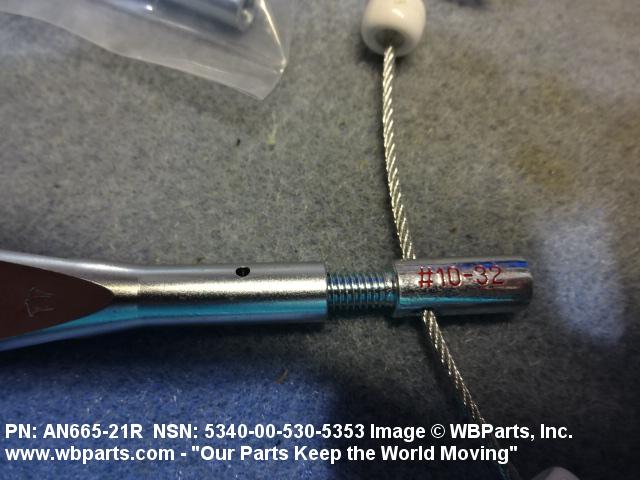

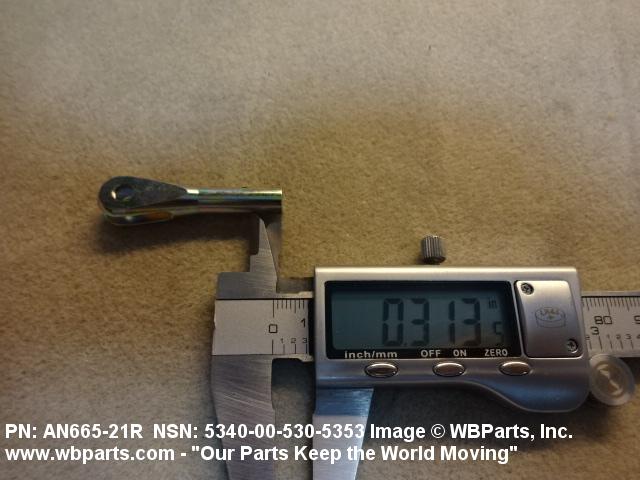

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| METALLIC HARDNESS RATING | 26.0 MINIMUM ROCKWELL C AND 31.0 MAXIMUM ROCKWELL C |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.190 INCHES ROD CONNECTION |
| THREAD CLASS | 3B ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 0.313 INCHES NOMINAL ROD CONNECTION |
| STYLE DESIGNATOR | 36 CLEVIS |

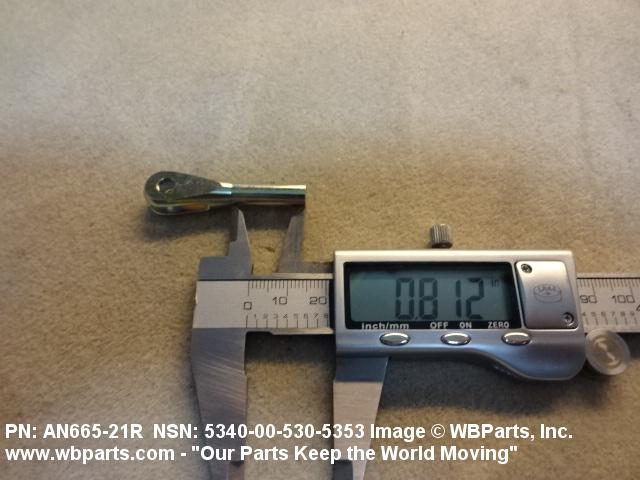

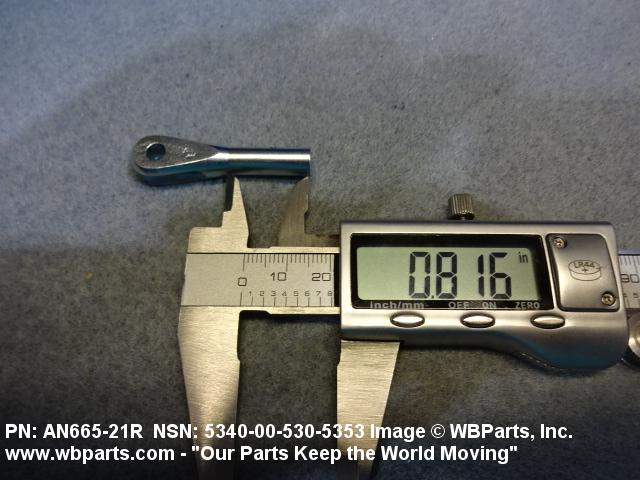

| SHANK LENGTH | 0.812 INCHES NOMINAL |

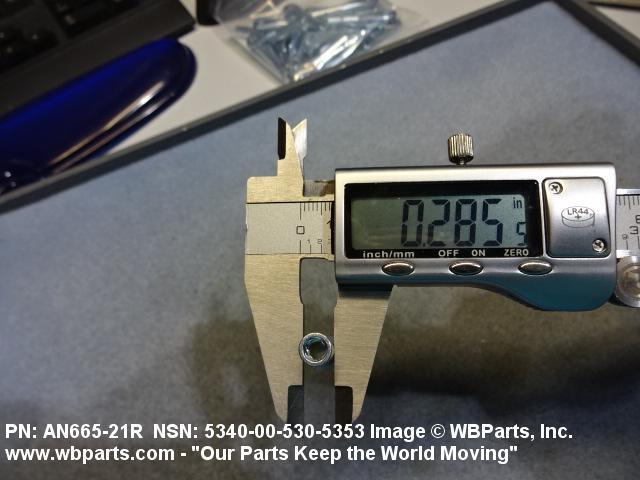

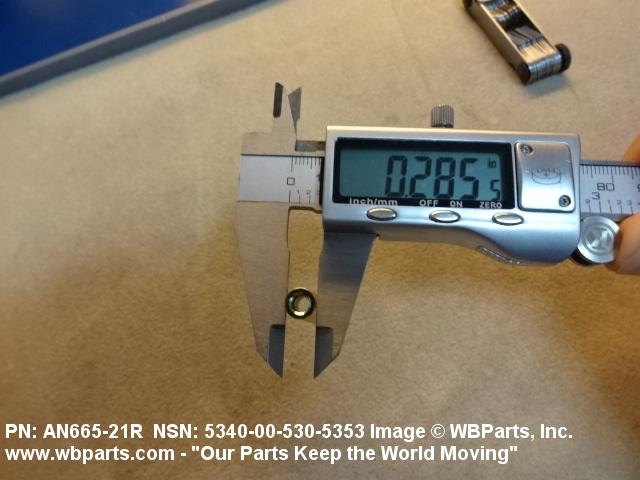

| SHANK DIAMETER | 0.281 INCHES NOMINAL |

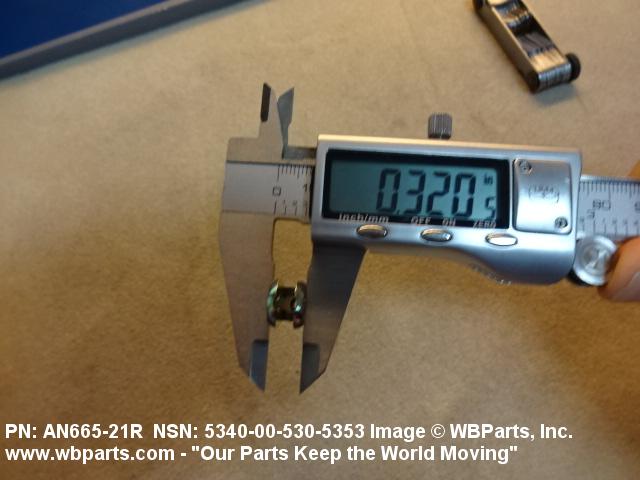

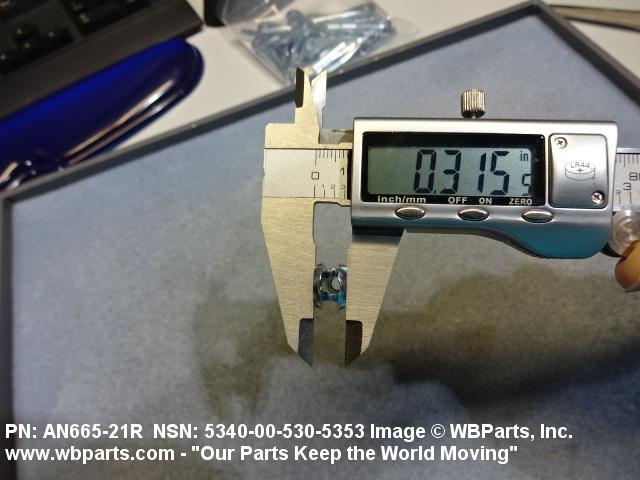

| OVERALL WIDTH | 0.313 INCHES NOMINAL |
| END RADIUS | 0.250 INCHES NOMINAL |

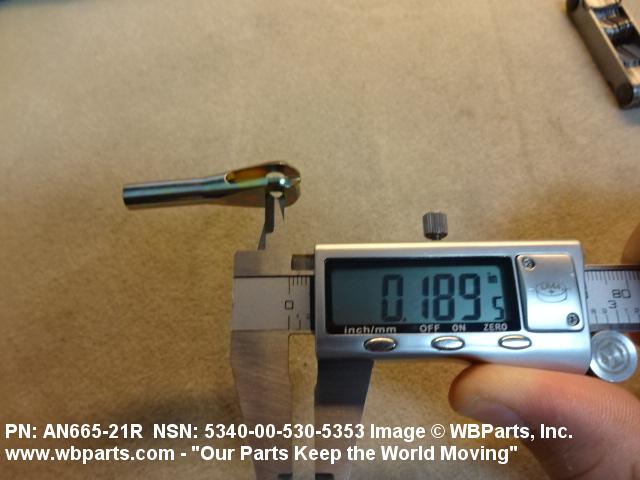

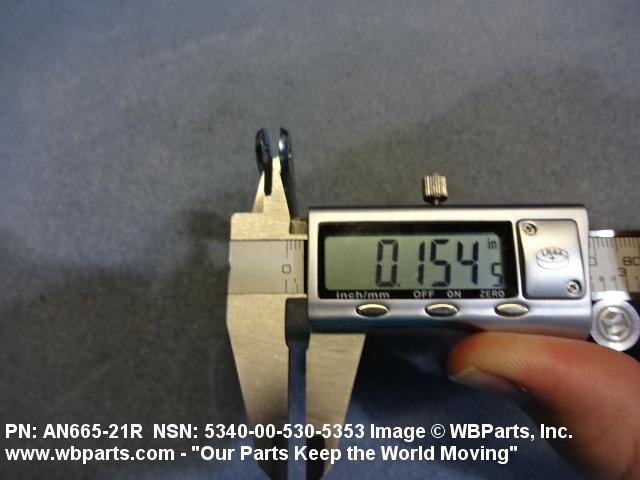

| FORK SPAN WIDTH | 0.150 INCHES NOMINAL |

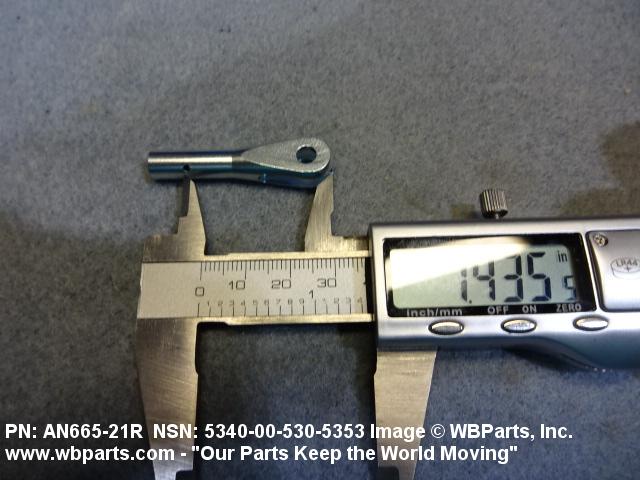

| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 1.531 INCHES NOMINAL |

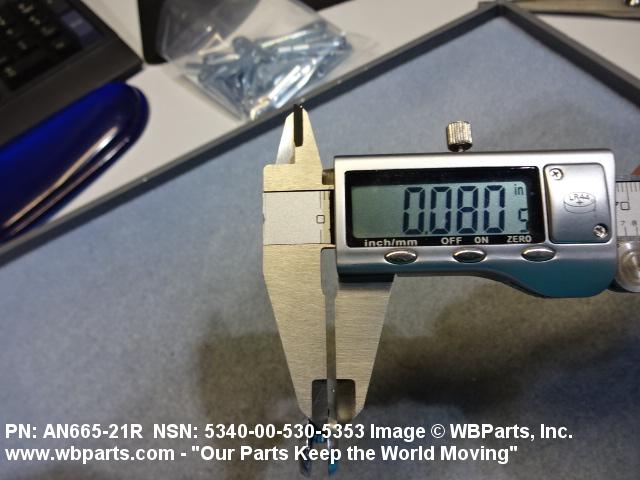

| FORK ARM THICKNESS | 0.082 INCHES NOMINAL |
| FORK DEPTH | 0.469 INCHES NOMINAL |
| SECURING PIN HOLE DIAMETER | 0.046 INCHES NOMINAL |
| DISTANCE FROM CENTER OF SECURING PIN HOLE TO ROD END | 0.375 INCHES NOMINAL |
| HOLE SHAPE | ROUND |
| HOLE DIAMETER | 0.190 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | NSN 2320-01-318-9902 HET (HEAVY EQUIPMENT TRANSPORTER); NSN 2320-01-097-0260 HEMTT (HEAVY EXPANDED MOBILITY TACTICAL TRUCK); NSN 4210-01-486-1035 TFFT (TACTICAL FIRE FIGHTING TRUCK) |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN665-21R |
