NSN 5340-00-432-3642 FFH116, 1479A14, 00-432-3642
Product Details | BUTT HINGE
5340-00-432-3642 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: FFH116, 1479A14, 5340-00-432-3642, 00-432-3642, 5340004323642, 004323642
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 MAY 1974 | 00-432-3642 | 22894 ( HINGE, BUTT ) |
Drawings & Photos | NSN 5340-00-432-3642
Demand History | NSN 5340-00-432-3642
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-432-3642 | 2008-06-173 | 4 | DIBBS |
| 5340-00-432-3642 | 2008-04-115 | 14 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-432-3642
Related Products | NSN 5340-00-432-3642
Technical Data | NSN 5340-00-432-3642
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, WROUGHT OVERALL |
| SURFACE TREATMENT AND LOCATION | DEAD BLACK, FF-H-116, US1D OVERALL |

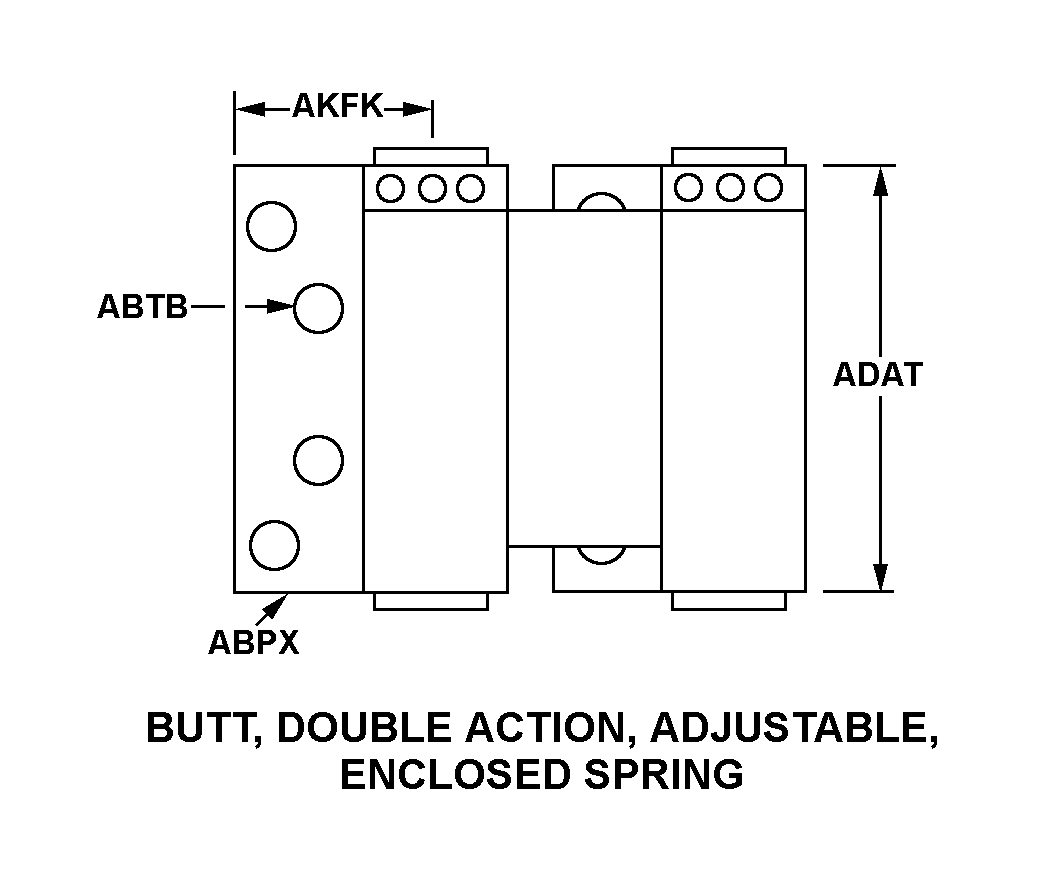

| STYLE DESIGNATOR | 31 BUTT, DOUBLE ACTION, ADJUSTABLE ENCLOSED SPRING |
| MATERIAL THICKNESS | 0.102 INCHES MINIMUM |
| MOUNTING HOLE DIAMETER | 0.144 INCHES NOMINAL |
| BODY WIDTH | 6.000 INCHES NOMINAL |
| PIN CENTER TO BODY EDGE DISTANCE | 1.250 INCHES NOMINAL |

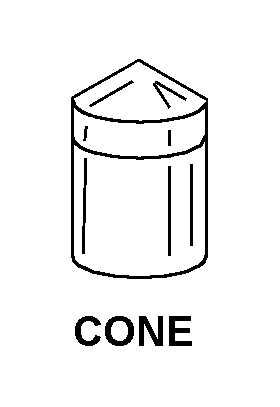

| PIN TIP STYLE | 1 CONE |
| HINGE MOUNTING TYPE | HALF MORTISE |
| REVERSIBLE FEATURE | INCLUDED |
| PIN REMOVABILITY | NONREMOVABLE |
| KNUCKLE TYPE | BALL BEARING |
| KNUCKLE QUANTITY | 1 |
| MOUNTING HOLE QUANTITY | 5 |
| PERFORMANCE TYPE | NOT RATED |
| NONDEFINITIVE SPEC/STD DATA | 2330A TYPE AND 6 SIZE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFH116 |
Restrictions/Controls & Freight Information | NSN 5340-00-432-3642
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095300 | HINGES/BUTTS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
