NSN 5340-00-432-1626 3F6032, 00-432-1626, 004321626
Product Details | ROD END CLEVIS
5340-00-432-1626 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 3F6032, 5340-00-432-1626, 00-432-1626, 5340004321626, 004321626
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 MAY 1971 | 00-432-1626 | 03796 ( CLEVIS, ROD END ) |

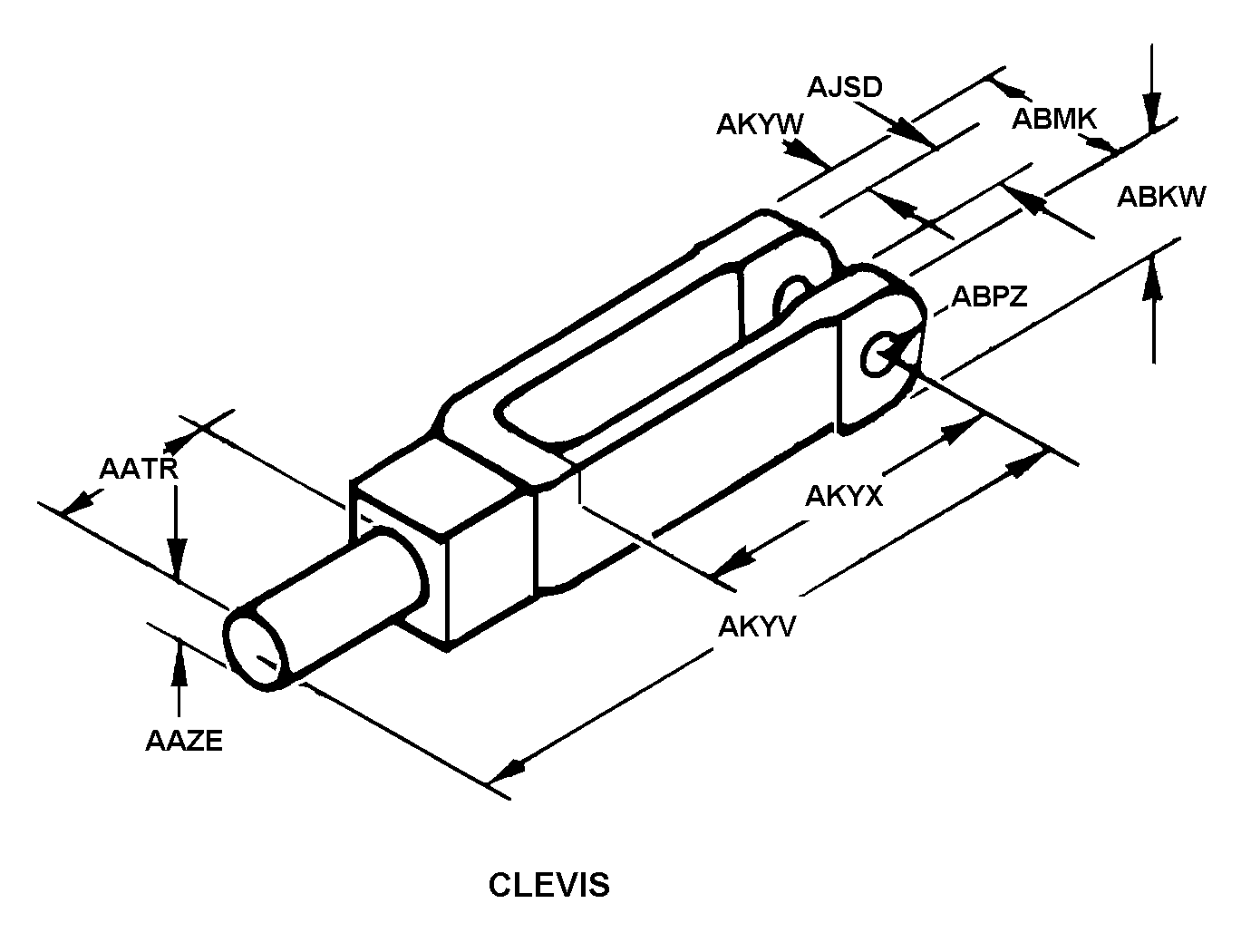

Drawings & Photos | NSN 5340-00-432-1626
Cross Reference | NSN 5340-00-432-1626
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3F6032 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-432-1626
Technical Data | NSN 5340-00-432-1626
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON MALLEABLE OVERALL |
| STYLE DESIGNATOR | 35 CLEVIS |
| SHANK LENGTH | 2.000 INCHES NOMINAL |
| SHANK DIAMETER | 1.125 INCHES NOMINAL |
| OVERALL HEIGHT | 1.250 INCHES NOMINAL |
| OVERALL WIDTH | 3.749 INCHES NOMINAL |
| FORK SPAN WIDTH | 3.125 INCHES NOMINAL |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 4.624 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.684 INCHES NOMINAL |
| FORK DEPTH | 1.093 INCHES NOMINAL |
| SPECIAL FEATURES | THE PRONGS HAVE 0.344 INCH DIA HOLE PERPENDICULAR TO THE LARGER HOLE,THERE IS A 0.125 INCH SLOT CUT FROM END OF PRONG TO THE LARGER HOLE |
Restrictions/Controls & Freight Information | NSN 5340-00-432-1626
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
