NSN 5340-00-406-3683 NAS1211C20, 00-406-3683, 004063683
Product Details | STRAP FASTENER LOOP
5340-00-406-3683 An item of rigid material having an aperture or opening through which the end(s) of a strap(s) or belt(s) is designed to be inserted, folded, and secured to itself by sewing, riveting, or the like. It is used to fasten the end(s) of a strap or belt to itself, to another belt or strap, or to an object or structure.
Part Alternates: NAS1211C20, 5340-00-406-3683, 00-406-3683, 5340004063683, 004063683
Hardware and Abrasives | Hardware, Commercial
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 13 APR 1970 | 00-406-3683 | 20539 ( LOOP, STRAP FASTENER ) |
Demand History | NSN 5340-00-406-3683
Part Number | Request Date | QTY | Origin |
---|---|---|---|
NAS1211C20 | 2024-08-29 | 20 | FR |
NAS1211C20 | 2024-08-28 | 20 | FR |
NAS1211C20 | 2024-08-28 | 20 | FR |
5340-00-406-3683 | 2024-02-27 | 8 | LV |
5340-00-406-3683 | 2022-01-20 | 24 | US |
NAS1211C20 | 2019-06-06 | 4 | US |
5340-00-406-3683 | 2018-07-12 | 3 | US |
NAS1211C20 | 2018-04-03 | 3 | US |
5340-00-406-3683 | 2018-01-29 | 10 | US |
5340-00-406-3683 | 2017-12-13 | 19 | DIBBS |
5340-00-406-3683 | 2017-11-08 | 2 | US |
5340-00-406-3683 | 2017-08-11 | 19 | DIBBS |
5340-00-406-3683 | 2017-08-03 | 19 | DIBBS |
5340-00-406-3683 | 2017-07-12 | 3 | DIBBS |
5340-00-406-3683 | 2017-07-03 | 3 | DIBBS |
5340-00-406-3683 | 2017-06-26 | 3 | DIBBS |
5340-00-406-3683 | 2015-11-24 | 2 | US |
5340-00-406-3683 | 2014-06-16 | 2 | US |
5340-00-406-3683 | 2014-03-07 | 43 | United States |
NAS1211C20 | 2014-01-08 | 43 | United States |
NAS1211C20 | 2013-01-30 | 20 | Taiwan |
NAS1211C20 | 2009-05-28 | 15 | US |
5340-00-406-3683 | 2009-05-19 | 24 | US |
NAS1211C20 | 2009-05-08 | 24 | US |
NAS1211C20 | 2009-04-24 | 24 | US |
5340-00-406-3683 | 2008-01-21 | 25 | us |
5340-00-406-3683 | 2008-01-20 | 12 | Australia |
NAS1211C20 | 2007-09-18 | 6 | US |
Cross Reference | NSN 5340-00-406-3683
Part Number | Cage Code | Manufacturer |
---|---|---|
NAS1211C20 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-406-3683
Related Products | NSN 5340-00-406-3683
Technical Data | NSN 5340-00-406-3683
Characteristic | Specifications |
---|---|
MATERIAL | STEEL, MIL-S-6758, COMP 4130 |
SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 2, CLASS 3 |
PAINTED FEATURE | NOT INCLUDED |

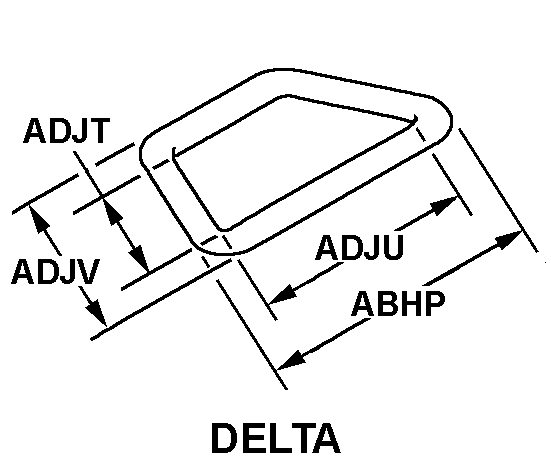

STYLE DESIGNATOR | D13 DELTA |
OVERALL LENGTH | 2.500 INCHES NOMINAL |
INSIDE WIDTH | 1.560 INCHES MINIMUM AND 1.820 INCHES MAXIMUM |
INSIDE LENGTH | 2.000 INCHES NOMINAL |
OUTSIDE WIDTH | 2.190 INCHES NOMINAL |
SPECIFICATION/STANDARD DATA | 80205-NAS1211 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5340-00-406-3683
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 179580 | STRAPS LEATHER IMITATION LEATHER |
Less than car load rating | ||
Less than truck load rating | J | 100.2 |
Water commodity Code | 772 | unknown |
Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-406-3683
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
Price Validation | V | The current standard price has been validated.
|
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
