NSN 5340-00-032-2711 NASM519391, NASM51939-1, 549637
Product Details | STRAP FASTENER LOOP
5340-00-032-2711 An item of rigid material having an aperture or opening through which the end(s) of a strap(s) or belt(s) is designed to be inserted, folded, and secured to itself by sewing, riveting, or the like. It is used to fasten the end(s) of a strap or belt to itself, to another belt or strap, or to an object or structure.
Part Alternates: NASM519391, NASM51939-1, 549637, 1165U, 5340-00-032-2711, 00-032-2711, 5340000322711, 000322711
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-032-2711 | 20539 ( LOOP, STRAP FASTENER ) |

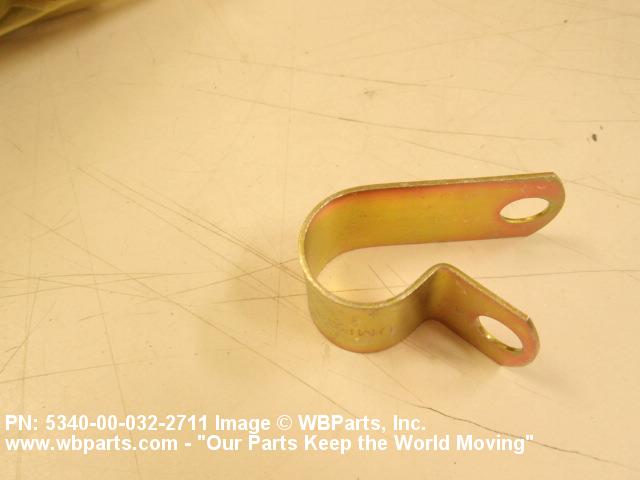

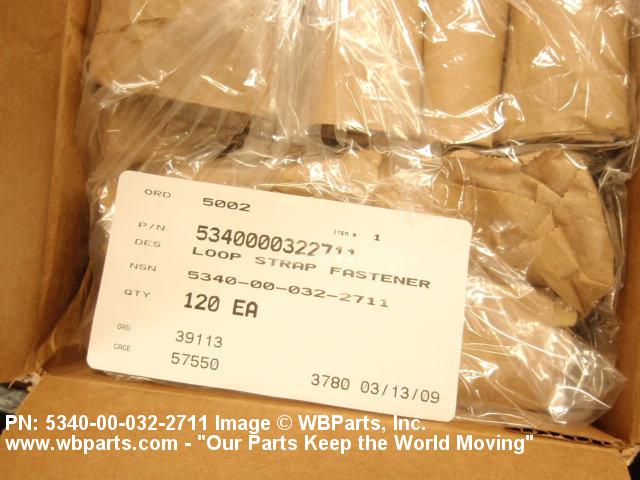

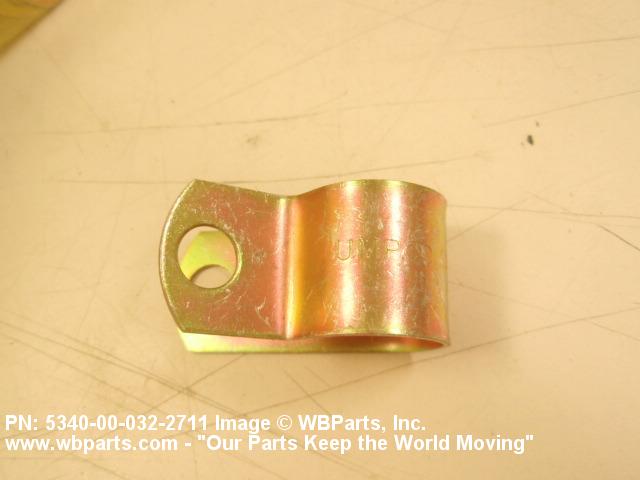

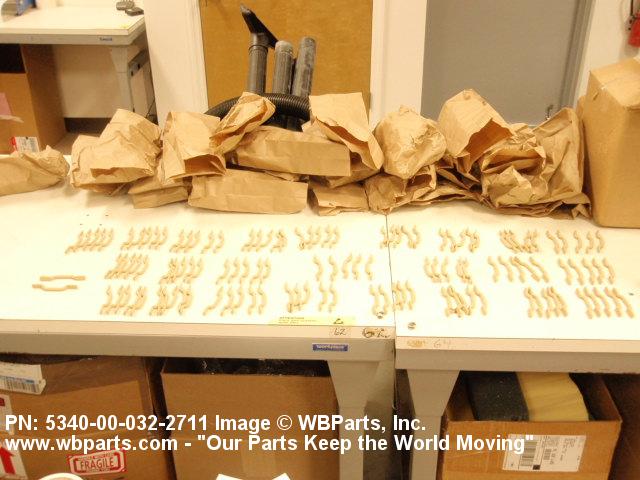

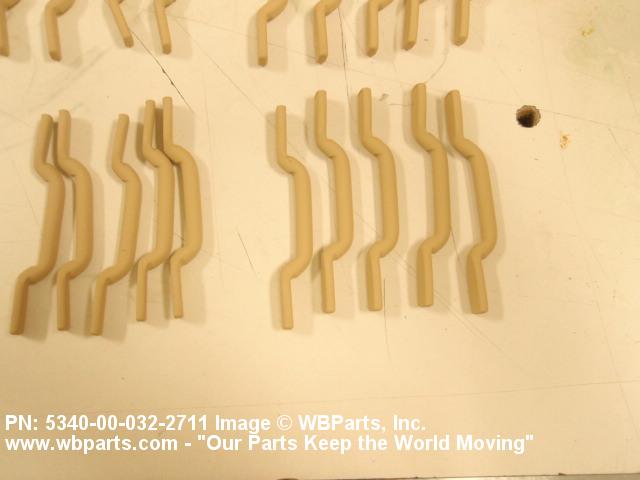

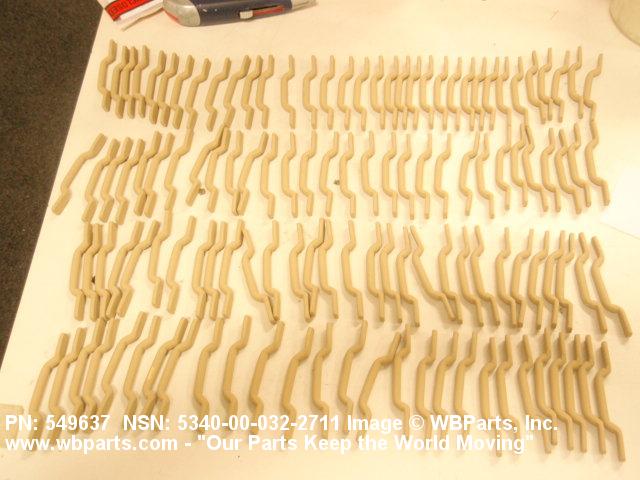

Drawings & Photos | NSN 5340-00-032-2711
Demand History | NSN 5340-00-032-2711
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-032-2711 | 2023-08-222 | 25 | United States |
| 5340-00-032-2711 | 2023-07-192 | 100 | United States |
| 5340-00-032-2711 | 2023-06-178 | 24 | United States |
| 5340-00-032-2711 | 2022-06-171 | 50 | DIBBS |
| 5340-00-032-2711 | 2021-08-229 | 16 | DIBBS |
| 549637 | 2018-08-225 | 152 | United States |
| 5340-00-032-2711 | 2010-02-54 | 16 | US |
| 5340-00-032-2711 | 2009-03-89 | 120 | United States |
| 5340-00-032-2711 | 2009-03-62 | 120 | United States |
| 5340-00-032-2711 | 2008-08-236 | 250 | DIBBS |
| 5340-00-032-2711 | 2008-04-94 | 100 | US |
| 5340-00-032-2711 | 2008-01-23 | 720 | Canada |
| 5340-00-032-2711 | 2008-01-21 | 350 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-032-2711
Related Products | NSN 5340-00-032-2711
Technical Data | NSN 5340-00-032-2711
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| PAINTED FEATURE | NOT INCLUDED |
| STYLE DESIGNATOR | D6 FOOTMANS LOOP |
| HOLE DIAMETER | ANY ACCEPTABLE |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | ANY ACCEPTABLE |
| INSIDE LENGTH | 1.375 INCHES NOMINAL |
| OUTSIDE WIDTH | 0.375 INCHES NOMINAL |
| INSIDE HEIGHT | 0.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-00-032-2711
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-032-2711
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
