NSN 5340-00-398-8753 SL8676PC24, SL8900PC26, SL9043PC26
Product Details | ROD END CLEVIS
5340-00-398-8753 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: SL8676PC24, SL8900PC26, SL9043PC26, DR83393, 1545P, 5340-00-398-8753, 00-398-8753, 5340003988753, 003988753
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-398-8753 | 03796 ( CLEVIS, ROD END ) |

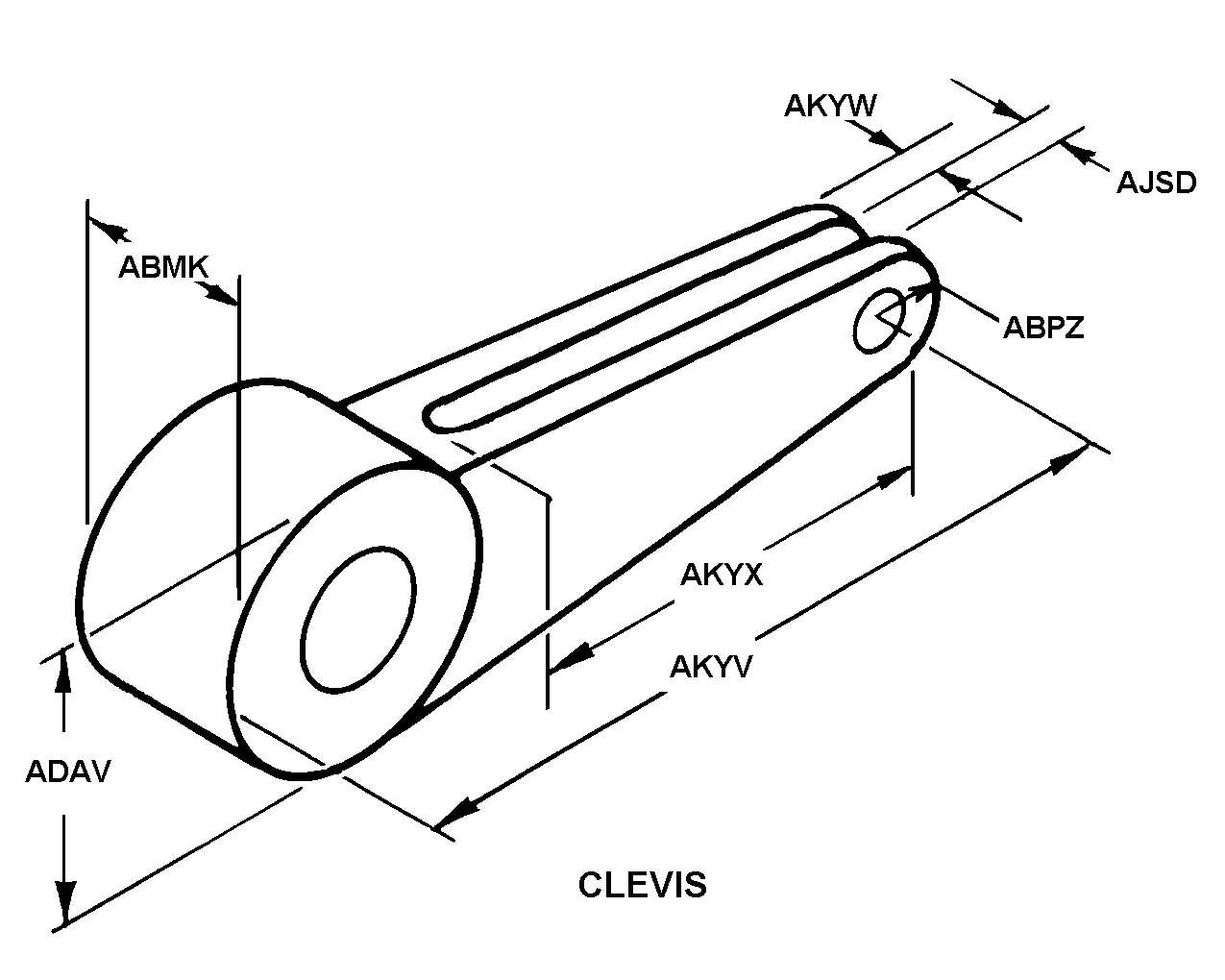

Drawings & Photos | NSN 5340-00-398-8753
Cross Reference | NSN 5340-00-398-8753
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1545P | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| DR83393 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL8676PC24 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL8900PC26 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL9043PC26 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
