NSN 5340-00-322-4328 SCB70099, 51769, 00-322-4328
Product Details | SPACING THREADED STANDOFF
5340-00-322-4328 A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance.
Part Alternates: SCB70099, 51769, 5340-00-322-4328, 00-322-4328, 5340003224328, 003224328
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-322-4328 | 40280 ( STANDOFF, THREADED, SPACING ) |
Drawings & Photos | NSN 5340-00-322-4328
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-322-4328
Technical Data | NSN 5340-00-322-4328
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE | HEXAGON |
| WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |

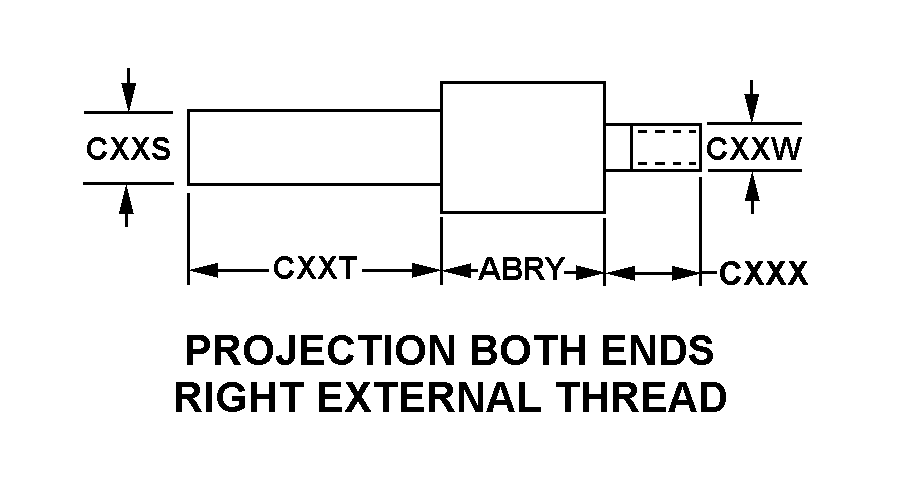

| STYLE DESIGNATOR | 21 PROJECTION BOTH ENDS RIGHT EXTERNAL THREAD |
| LENGTH | 0.118 INCHES NOMINAL |
| DISTANCE FROM END TO HOLE CENTER | 0.698 INCHES NOMINAL |
| HOLE QUANTITY PERPENDICULAR TO AXIS | 1 |
| (NON-CORE DATA) EXTERNAL THREAD LENGTH | 0.174 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PROJECTION LENGTH | 0.219 INCHES NOMINAL |
| (NON-CORE DATA) SECOND PROJECTION LENGTH | 0.438 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PROJECTION DIAMETER | 0.138 INCHES NOMINAL |
| (NON-CORE DATA) SECOND PROJECTION DIAMETER | 0.155 INCHES NOMINAL |
| (NON-CORE DATA) UNTHREADED HOLE SIZE PERPENDICULAR TO AXIS | 0.064 IN. DIA |
| (NON-CORE DATA) EXTERNAL THREAD CHARACTERISTICS | 0.138=40 UNF 2A |
| (NON-CORE DATA) MATERIAL | STEEL ASTM A582 TYPE 303 |
| (NON-CORE DATA) SURFACE TREATMENT | PASSIVATED |
| MANUFACTURERS CODE | 80063 |
| DESIGN CONTROL REFERENCE | SCB70099 |
