NSN 5340-00-322-2197 33022861, 3302286-1, 00-322-2197
Product Details | PLAIN SOLID DISK
5340-00-322-2197 A circular item with two parallel bearing surfaces without hole(s) or groove(s). It has an outside diameter greater than its length, and may be fabric reinforced. Do not use if a more specific item name applies. For items primarily designed to rupture at a predetermined pressure, see DISK, RUPTURABLE. For items made of felt, see FELT, MECHANICAL, PREFORMED. For metallic or plastic items with a laminated cross section, see SHIM. Excludes DIAPHRAGM, VALVE, FLAT; DIAPHRAGM, VALVE, SPECIAL SHAPED; DISK, VALVE, NONMETALLIC; FILTERING DISK FLUID; and INSULATOR, DISK.20310050018Guns, through 30mm53300028Packing and Gasket Materials53400020Hardware, Commercial
Part Alternates: 33022861, 3302286-1, 5340-00-322-2197, 00-322-2197, 5340003222197, 003222197
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 NOV 1973 | 00-322-2197 | 16584 ( DISK, SOLID, PLAIN ) |
Drawings & Photos | NSN 5340-00-322-2197
Demand History | NSN 5340-00-322-2197
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 33022861 | 2023-08-242 | 1 | United States |
| 5340-00-322-2197 | 2013-03-66 | 411 | DIBBS |
| 5340-00-322-2197 | 2013-02-43 | 411 | DIBBS |
| 5340-00-322-2197 | 2012-12-339 | 59 | DIBBS |
| 5340-00-322-2197 | 2012-04-96 | 109 | DIBBS |
| 5340-00-322-2197 | 2010-04-104 | 78 | DIBBS |
Cross Reference | NSN 5340-00-322-2197
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3302286-1 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-322-2197
Technical Data | NSN 5340-00-322-2197
| Characteristic | Specifications |
|---|---|
| MATERIAL | NYLON,MIL-P-17091,TY 1 |

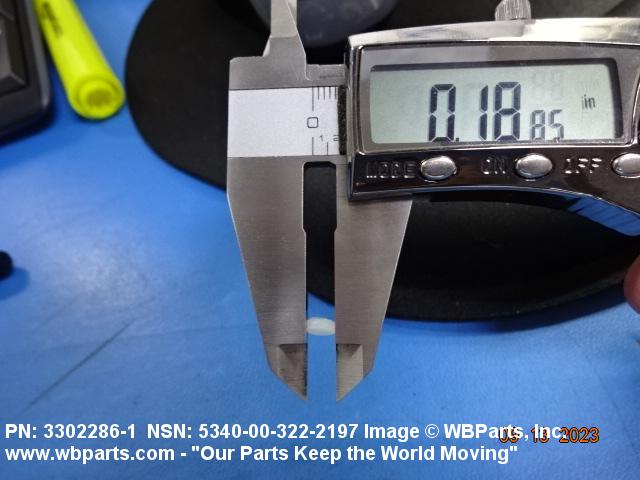

| DIAMETER | 0.190 INCHES NOMINAL |

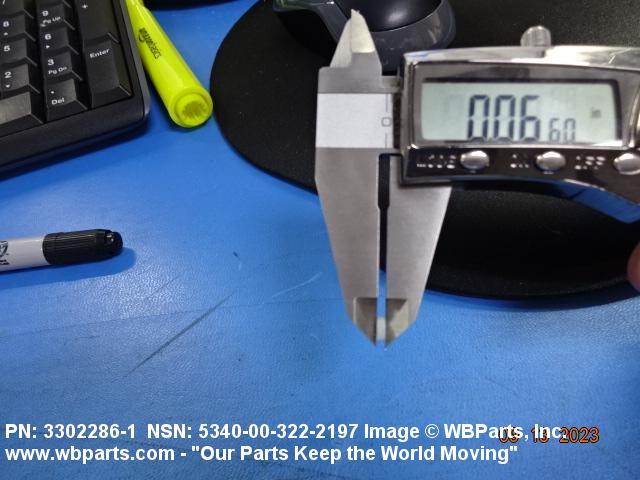

| THICKNESS | 0.062 INCHES NOMINAL |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 3302286-1 |
Restrictions/Controls & Freight Information | NSN 5340-00-322-2197
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | ZD | South Africa ZE ZF |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-322-2197
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
