NSN 5340-00-984-5707 12703, 00-984-5707, 009845707
Product Details | PLAIN SOLID DISK
5340-00-984-5707 A circular item with two parallel bearing surfaces without hole(s) or groove(s). It has an outside diameter greater than its length, and may be fabric reinforced. Do not use if a more specific item name applies. For items primarily designed to rupture at a predetermined pressure, see DISK, RUPTURABLE. For items made of felt, see FELT, MECHANICAL, PREFORMED. For metallic or plastic items with a laminated cross section, see SHIM. Excludes DIAPHRAGM, VALVE, FLAT; DIAPHRAGM, VALVE, SPECIAL SHAPED; DISK, VALVE, NONMETALLIC; FILTERING DISK FLUID; and INSULATOR, DISK.20310050018Guns, through 30mm53300028Packing and Gasket Materials53400020Hardware, Commercial
Part Alternates: 12703, 5340-00-984-5707, 00-984-5707, 5340009845707, 009845707
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 OCT 1966 | 00-984-5707 | 16584 ( DISK, SOLID, PLAIN ) |

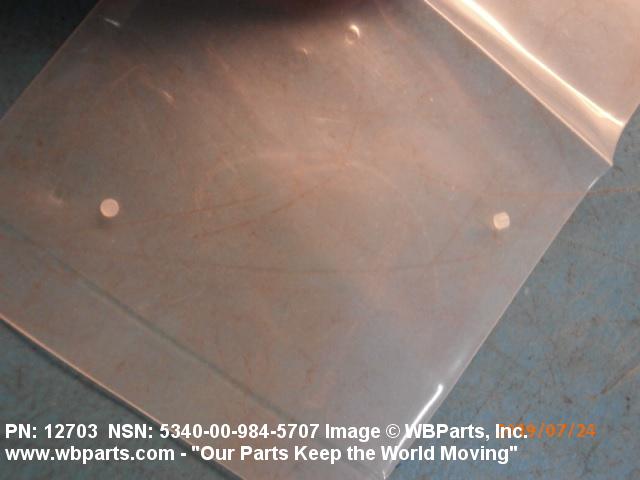

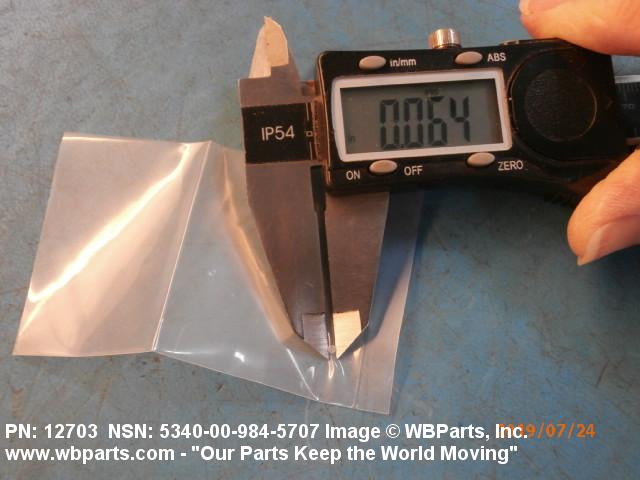

Drawings & Photos | NSN 5340-00-984-5707
Demand History | NSN 5340-00-984-5707
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12703 | 2024-04-113 | 187 | DIBBS |
| 12703 | 2024-02-51 | 187 | DIBBS |
| 12703 | 2022-11-320 | 2 | South Africa |
| 12703 | 2019-07-199 | 2 | United States |
| 5340-00-984-5707 | 2010-07-210 | 312 | DIBBS |
| 5340-00-984-5707 | 2010-06-174 | 154 | DIBBS |
| 5340-00-984-5707 | 2009-09-245 | 56 | DIBBS |
Cross Reference | NSN 5340-00-984-5707
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12703 | 99643 | EATON CORPORATION DBA EATON AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-984-5707
Technical Data | NSN 5340-00-984-5707
| Characteristic | Specifications |
|---|---|
| MATERIAL | POLYAMIDE NYLON |
| DIAMETER | 0.060 INCHES MINIMUM AND 0.064 INCHES MAXIMUM |
| THICKNESS | 0.045 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
| MANUFACTURERS CODE | 99643 |
| DESIGN CONTROL REFERENCE | 12703 |
Restrictions/Controls & Freight Information | NSN 5340-00-984-5707
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-984-5707
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
