NSN 5340-00-299-0354 68A4509532001, 68A450953-2001, 00-299-0354
Product Details | HELICAL COMPRESSION SPRING SEAT
5340-00-299-0354 A circular item, usually having a flat or grooved flange, boss(es), and/or counterbore designed to accommodate the end of the spring. It is used to position the spring, but does not encase the spring or restrain lateral motion. It may be used in conjunction with a RETAINER, HELICAL COMPRESSION SPRING. Excludes WASHER (1), (as modified); SEAT, BALL SOCKET and HOLDER, SPRING. See also ROTOR, ENGINE POPPET VALVE.
Part Alternates: 68A4509532001, 68A450953-2001, 5340-00-299-0354, 00-299-0354, 5340002990354, 002990354
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 OCT 1973 | 00-299-0354 | 24328 ( SEAT, HELICAL COMPRESSION SPRING ) |

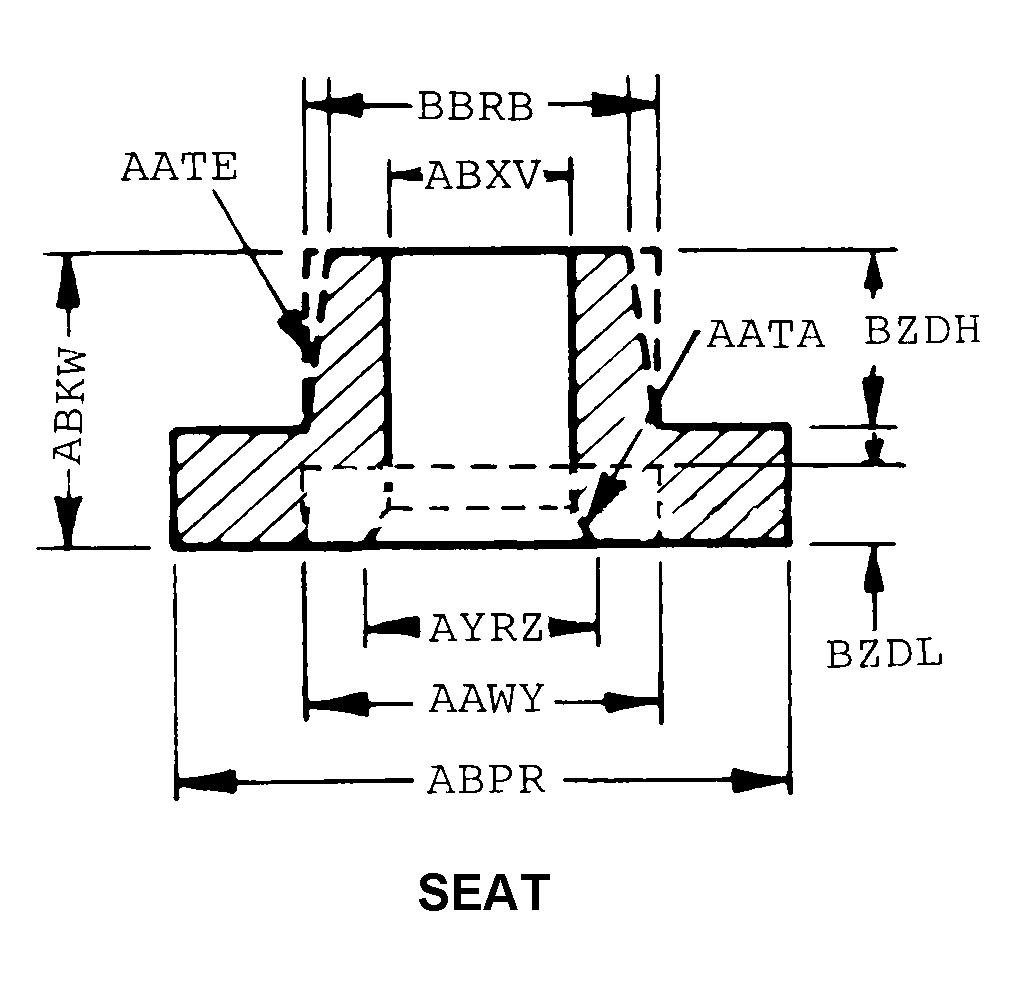

Drawings & Photos | NSN 5340-00-299-0354
Demand History | NSN 5340-00-299-0354
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-299-0354 | 2012-08-244 | 29 | DIBBS |
| 5340-00-299-0354 | 2012-03-90 | 14 | DIBBS |
| 5340-00-299-0354 | 2010-12-349 | 5 | DIBBS |
| 5340-00-299-0354 | 2010-08-215 | 5 | DIBBS |
| 5340-00-299-0354 | 2010-05-145 | 5 | DIBBS |
| 5340-00-299-0354 | 2010-04-113 | 3 | DIBBS |
| 5340-00-299-0354 | 2009-04-120 | 5 | DIBBS |
Cross Reference | NSN 5340-00-299-0354
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 68A450953-2001 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-299-0354
Related Products | NSN 5340-00-299-0354
Technical Data | NSN 5340-00-299-0354
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL HARDNESS RATING | NOT RATED |
| SURFACE TREATMENT | ANODIZED |
| STYLE DESIGNATOR | N1 SEAT |
| OVERALL HEIGHT | 0.4100 INCHES NOMINAL |
| END DIAMETER | 0.4250 INCHES MINIMUM AND 0.4350 INCHES MAXIMUM |
| DISTANCE FROM END TO FIRST STEP | 0.3400 INCHES NOMINAL |
| FIRST STEP DIAMETER | 0.7760 INCHES MINIMUM AND 0.7840 INCHES MAXIMUM |
| BORE DIAMETER | 0.3100 INCHES MINIMUM AND 0.3140 INCHES MAXIMUM |
| DESIGN TYPE | SOLID |
| SPECIAL FEATURES | NOT CASEHARDENED |
| III FSC APPLICATION DATA | STEER DAMPER,ACFT |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 68A450953-2001 |
Restrictions/Controls & Freight Information | NSN 5340-00-299-0354
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-299-0354
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LE | SU:LANDING GEAR SYSTEMS AND COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
