NSN 5340-00-291-5342 MS21919G8, MS21919WDG8, P/N 754-8-2-8
Product Details | LOOP CLAMP
5340-00-291-5342 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: MS21919G8, MS21919WDG8, P/N 754-8-2-8 , PN754828, TA1718WD8X, MILC8603, 207722, 362099, 53402915342 , 6981010C, 69810-10C, 99122, 0236109T00 , 10117324, 10C , 1151010, 115-10-10 , 1276-19-285 , 5340-00-291-5342, 00-291-5342, 5340002915342, 002915342, 137618181 , 127619285
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-291-5342 | 17532 ( CLAMP, LOOP ) |

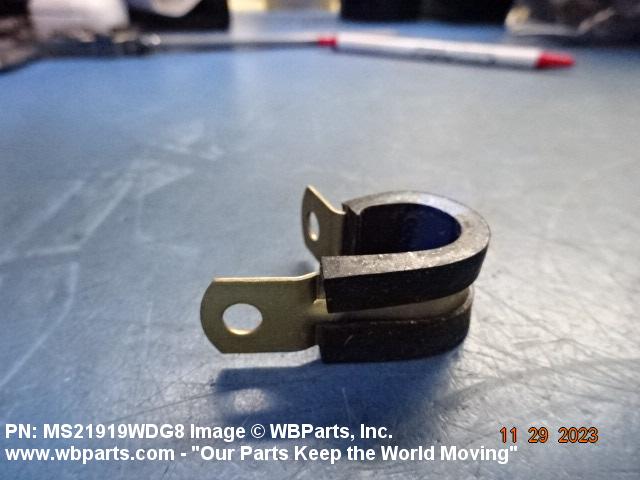

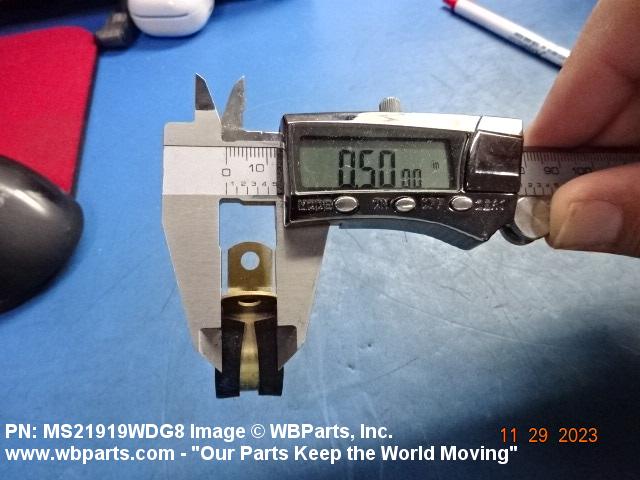

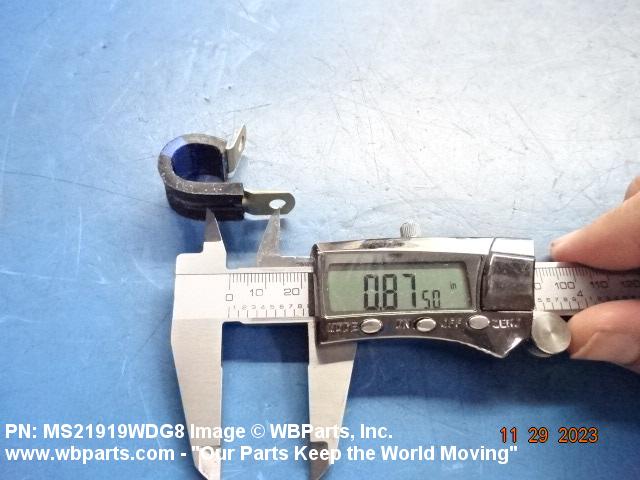

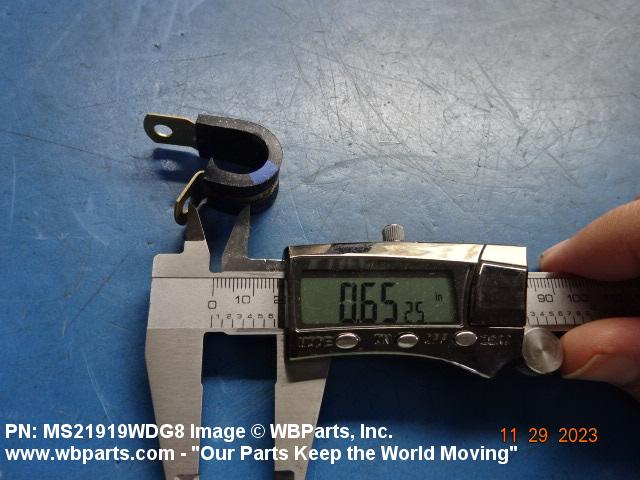

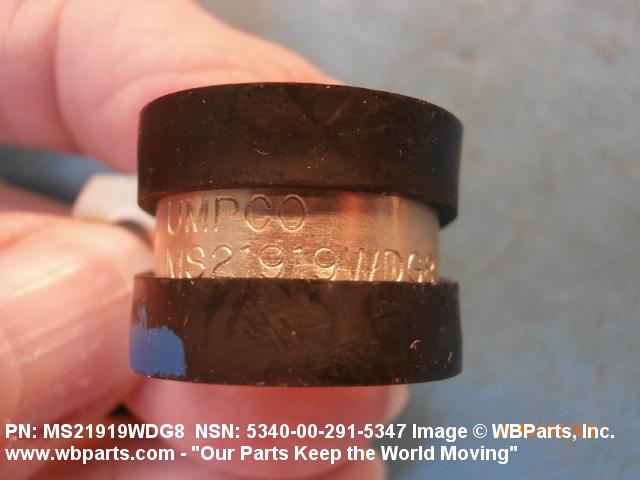

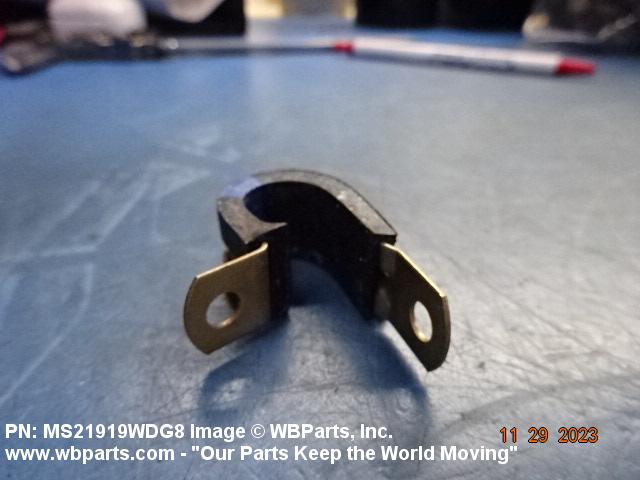

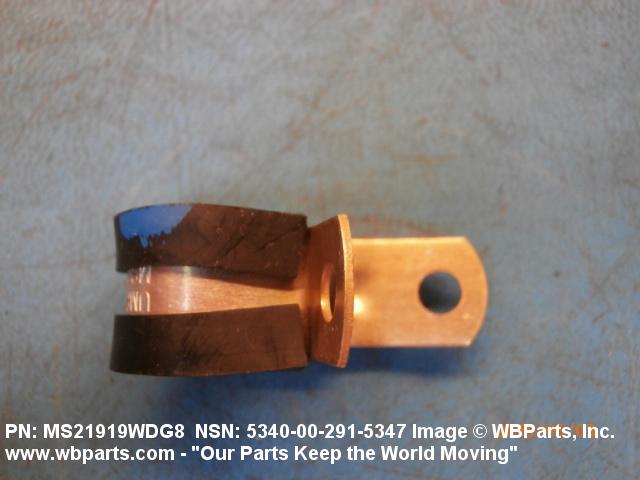

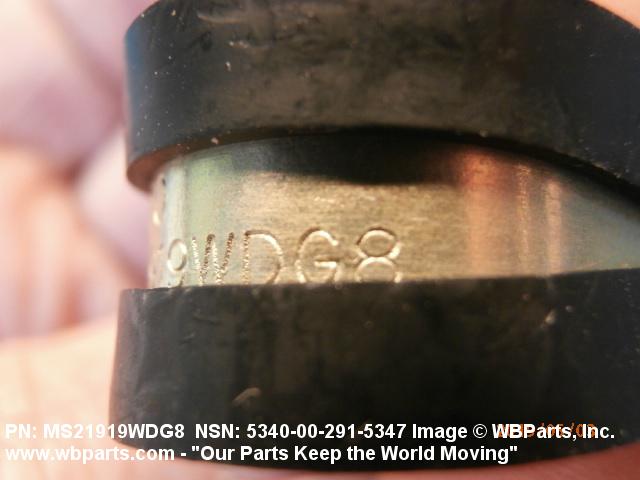

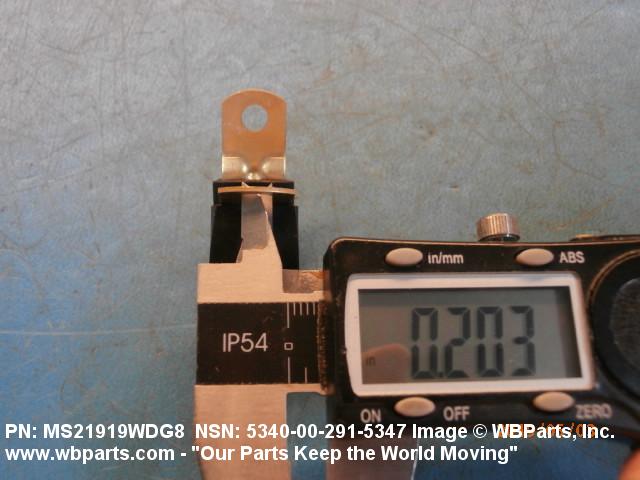

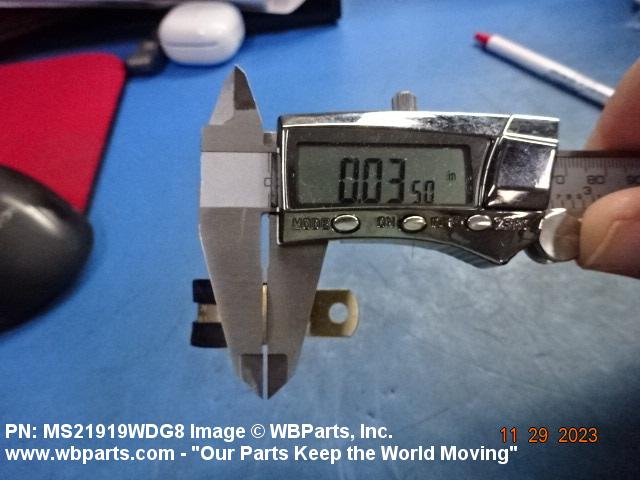

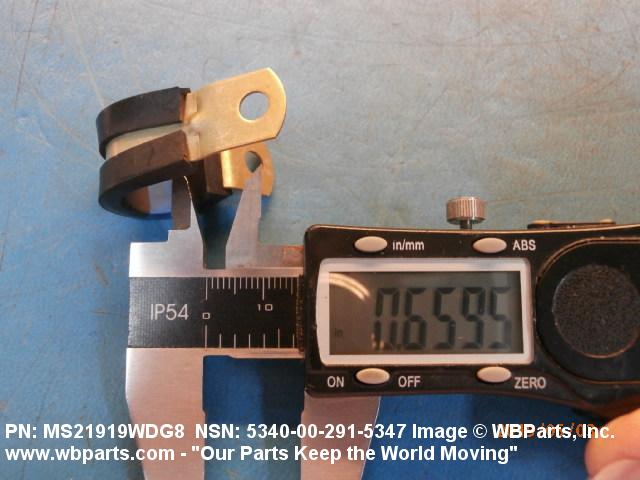

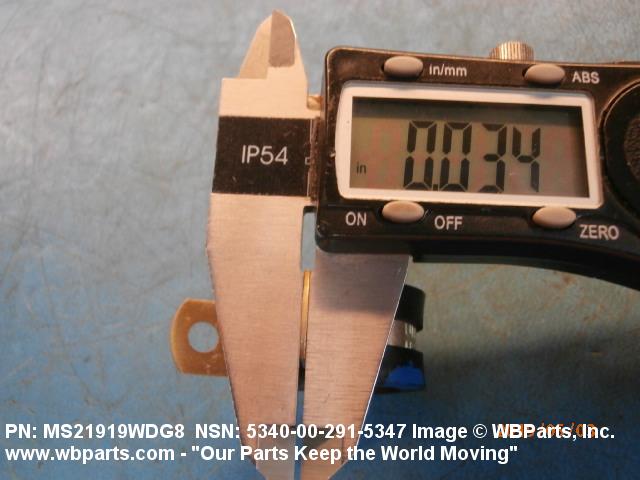

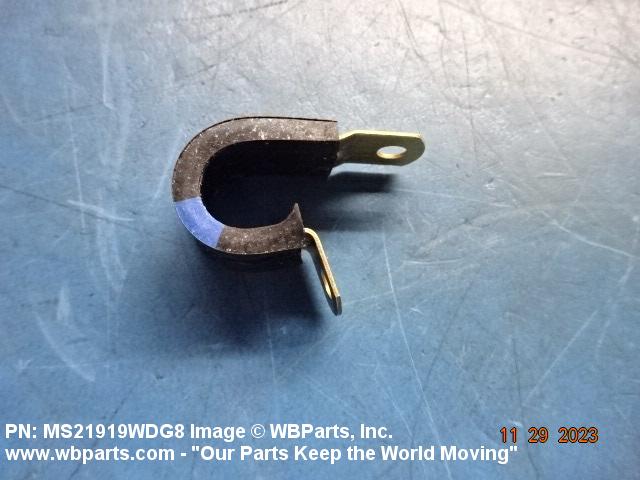

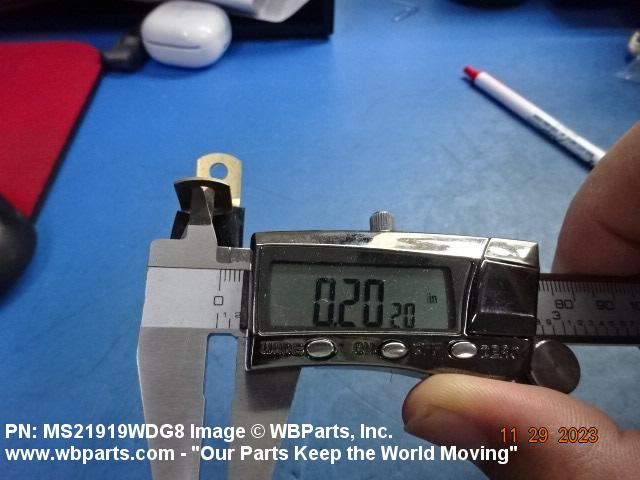

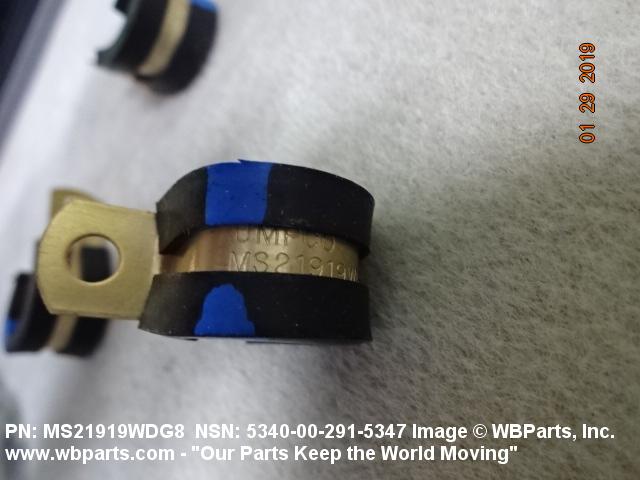

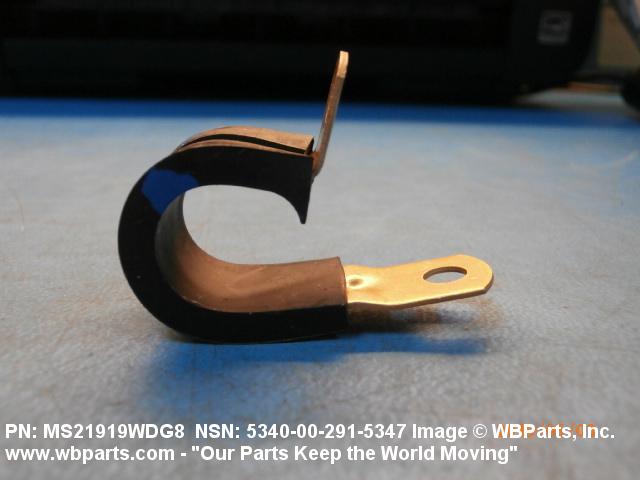

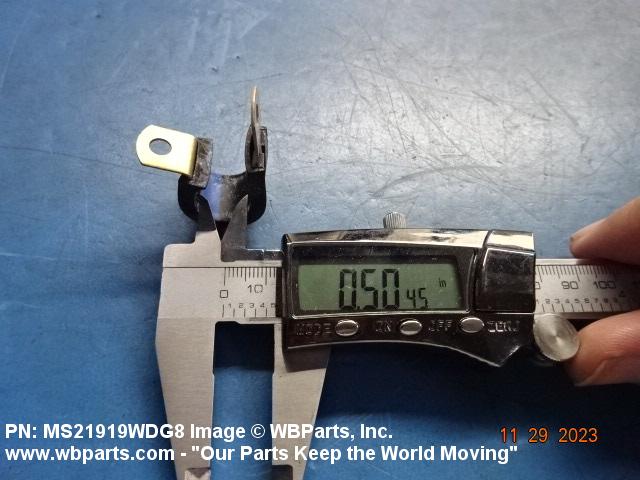

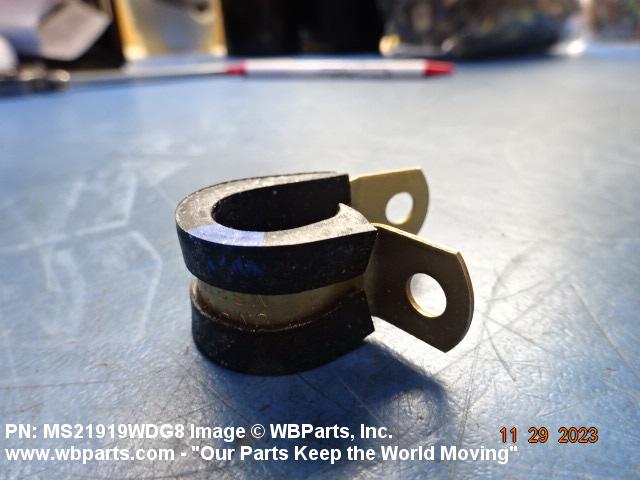

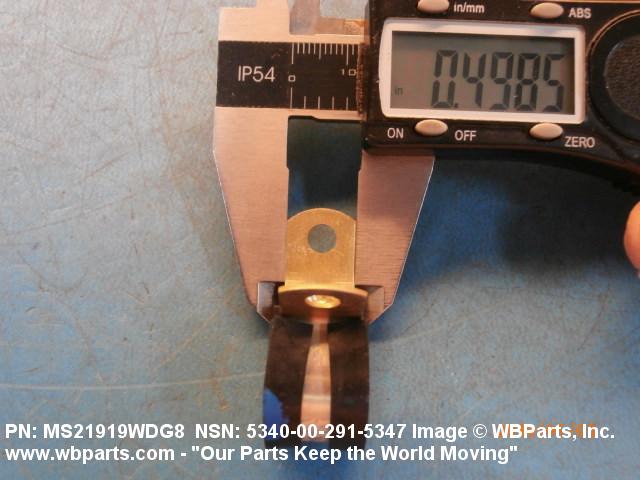

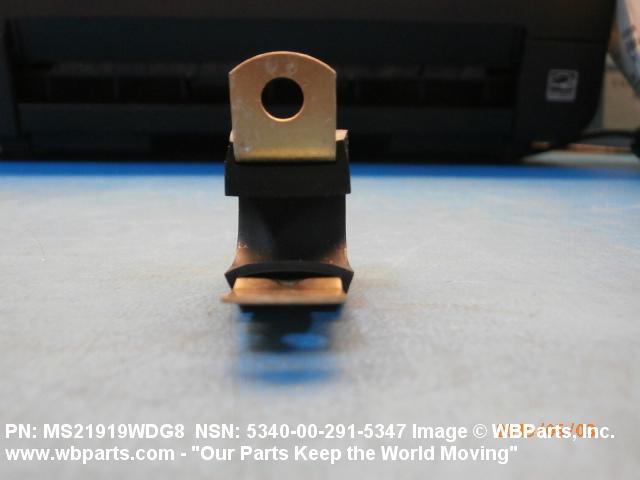

Drawings & Photos | NSN 5340-00-291-5342
Demand History | NSN 5340-00-291-5342
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21919WDG8 | 2024-11-311 | 200 | United States |
| MS21919WDG8 | 2024-09-268 | 37 | Spain |
| MS21919WDG8 | 2024-08-228 | 84 | US |
| MS21919WDG8 | 2024-04-110 | 80 | United States |
| MS21919WDG8 | 2024-04-110 | 80 | United States |
| MS21919WDG8 | 2023-11-314 | 123 | us |
| MS21919WDG8 | 2023-10-299 | 220 | United States |
| MS21919WDG8 | 2023-08-229 | 150 | United States |
| MS21919G8 | 2021-01-05 | 4 | AT |
| MS21919WDG8 | 2020-12-365 | 18 | United States |
| MS21919WDG8 | 2019-09-248 | 250 | Sri Lanka |
| MS21919WDG8 | 2019-04-119 | 300 | United States |
| MS21919WDG8 | 2018-09-257 | 20 | United States |
| MS21919WDG8 | 2018-07-183 | 40 | United States |
| MS21919WDG8 | 2017-02-59 | 100 | Pakistan |
| MS21919WDG8 | 2017-02-58 | 100 | Pakistan |
| MS21919WDG8 | 2017-02-40 | 60 | United States |
| MILC8603 | 2016-03-81 | 18 | United States |
| MS21919WDG8 | 2015-08-224 | 100 | Egypt |
| MS21919WDG8 | 2014-07-209 | 100 | CA |
| MS21919WDG8 | 2014-03-71 | 276 | United States |
| MS21919WDG8 | 2013-10-276 | 550 | PK |
| MS21919WDG8 | 2013-08-224 | 180 | us |
| MS21919WDG8 | 2012-11-310 | 50 | |
| MS21919WDG8 | 2012-07-187 | 90 | KR |
| MS21919WDG8 | 2011-03-74 | 935 | United States |
| MS21919WDG8 | 2010-01-05 | 100 | United States |
| MS21919WDG8 | 2009-08-230 | 520 | United States |
| MS21919WDG8 | 2009-02-55 | 15 | JO |
Cross Reference | NSN 5340-00-291-5342
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 362099 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 5340002915342 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 53402915342 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 69810-10C | 73030 | HAMILTON SUNDSTRAND CORPORATION |
| 99122 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| MILC8603 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS21919G8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-291-5342
Technical Data | NSN 5340-00-291-5342
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BAND RUBBER CUSHION |
| SURFACE TREATMENT | CADMIUM BAND |
| STYLE DESIGNATOR | A5 OFFSET MOUNT |
| OVERALL WIDTH | 0.375 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.029 INCHES MINIMUM AND 0.036 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 0.592 INCHES NOMINAL |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 0.780 INCHES NOMINAL |
| LOOP INSIDE DIAMETER | 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |
| DIAMETER | 0.204 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 4 TYPE AND B CLASS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC8603 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21919G8 |
Restrictions/Controls & Freight Information | NSN 5340-00-291-5342
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-291-5342
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
