NSN 5340-00-291-5343 MS21919WG11, C8603TYPE4ANDCLASSB, 00-291-5343

Product Details | LOOP CLAMP

5340-00-291-5343 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000

Part Alternates: MS21919WG11, C8603TYPE4ANDCLASSB, 5340-00-291-5343, 00-291-5343, 5340002915343, 002915343

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-291-5343	17532 ( CLAMP, LOOP )

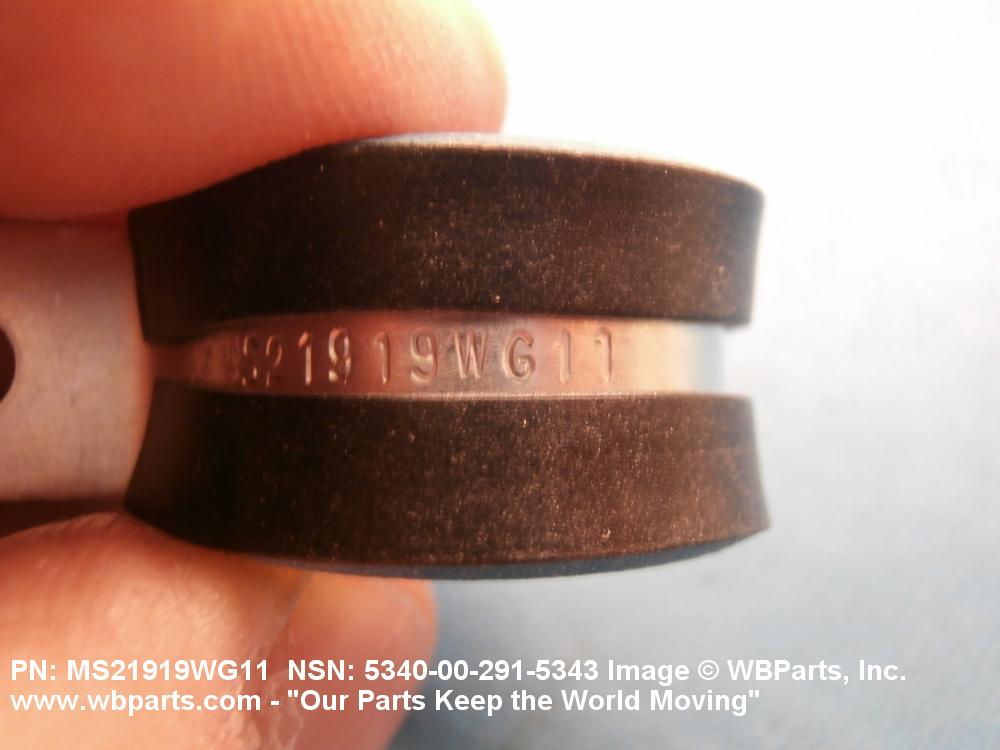

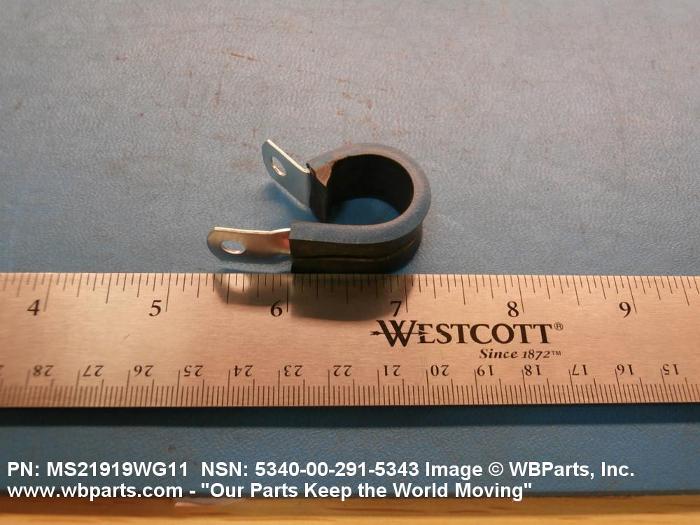

Drawings & Photos | NSN 5340-00-291-5343

Part Number	Request Date	QTY	Origin
5340-00-291-5343	2024-03-81	658	DIBBS
5340-00-291-5343	2024-03-66	658	DIBBS
5340-00-291-5343	2023-03-80	816	DIBBS
5340-00-291-5343	2023-03-65	816	DIBBS
5340-00-291-5343	2022-03-79	1320	DIBBS
5340-00-291-5343	2021-04-105	531	DIBBS
5340-00-291-5343	2021-04-102	1901	DIBBS
5340-00-291-5343	2021-03-87	1901	DIBBS
5340-00-291-5343	2019-01-22	3392	DIBBS
5340-00-291-5343	2016-10-305	3444	DIBBS
MS21919WG11	2013-03-66	72	United Kingdom
MS21919WG11	2013-03-65	72	United Kingdom
MS21919WG11	2011-01-07	500	United States

Cross Reference | NSN 5340-00-291-5343

Part Number	Cage Code	Manufacturer
C8603TYPE4ANDCLASSB	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS21919WG11	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-291-5343

Compare

Related Products | NSN 5340-00-291-5343

5340-00-291-5344, 5340-00-291-5345, 5340-00-291-5346, 5340-00-291-5347, 5340-00-291-5348

Technical Data | NSN 5340-00-291-5343

Characteristic	Specifications
MATERIAL	STEEL COMP 1008 OR STEEL COMP 1009 OR STEEL COMP 1015 OR STEEL COMP 1018 OR STEEL COMP 1020 BAND RUBBER CHLOROPRENE CLASS CR CUSHION
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 3209 ASSN STD SINGLE MATERIAL RESPONSE CUSHION
SURFACE TREATMENT	CADMIUM BAND
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 1 CL 2 FED SPEC SINGLE TREATMENT RESPONSE BAND
STYLE DESIGNATOR	A5 OFFSET MOUNT
OVERALL WIDTH	0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM
MATERIAL THICKNESS	0.032 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE	0.796 INCHES MINIMUM AND 0.826 INCHES MAXIMUM
DISTANCE FROM LOOP CENTER TO TONGUE END	1.029 INCHES NOMINAL
LOOP INSIDE DIAMETER	0.673 INCHES MINIMUM AND 0.703 INCHES MAXIMUM
TONGUE HOLE TYPE	ROUND, UNTHREADED
DIAMETER	0.204 INCHES NOMINAL
CUSHIONING ENVIRONMENTAL PROTECTION	WEATHER RESISTANT
NONDEFINITIVE SPEC/STD DATA	4 TYPE AND B CLASS
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	C8603TYPE4ANDCLASSB
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21919WG11

Restrictions/Controls & Freight Information | NSN 5340-00-291-5343

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-00-291-5343

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
