NSN 5340-00-291-5322 MS219193, MS21919-3, MS21919DG3

Product Details | LOOP CLAMP

5340-00-291-5322 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000

Part Alternates: MS219193, MS21919-3, MS21919DG3, MS21919WDG3, MS21919-WDG3, AS21919WDG3, 0146314S00 , 10117323, 115105 , 115-10-5 , 20914015, 2091401-5, 5C , 8036, 5340-00-291-5322, 00-291-5322, 5340002915322, 002915322

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-291-5322	17532 ( CLAMP, LOOP )

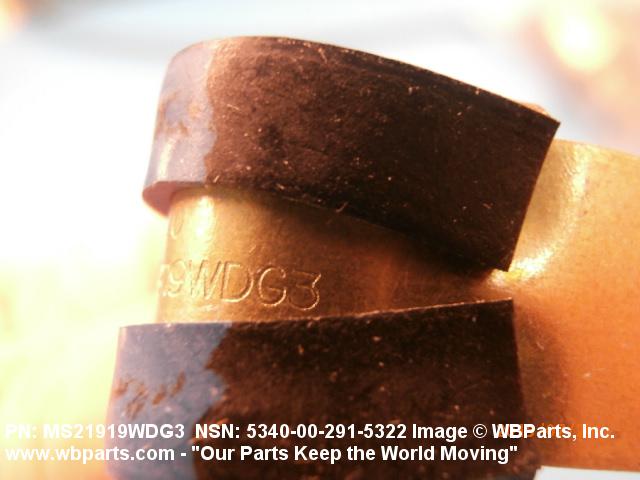

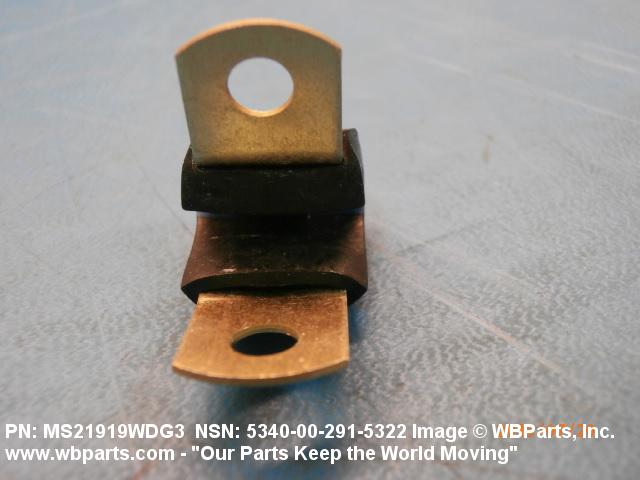

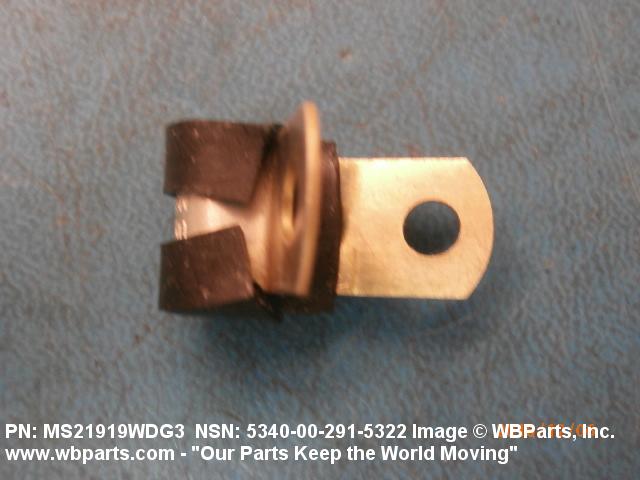

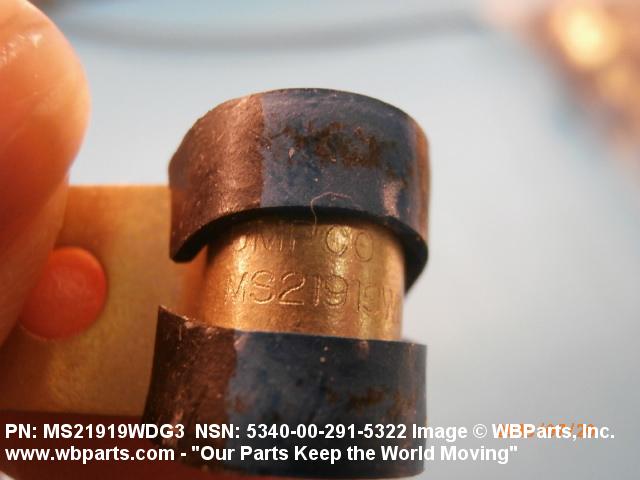

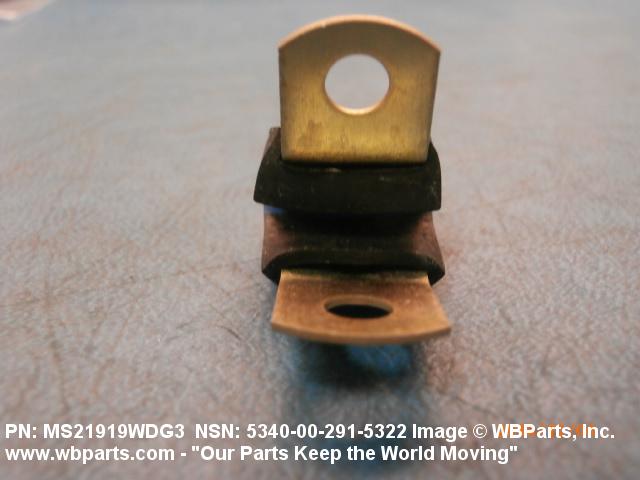

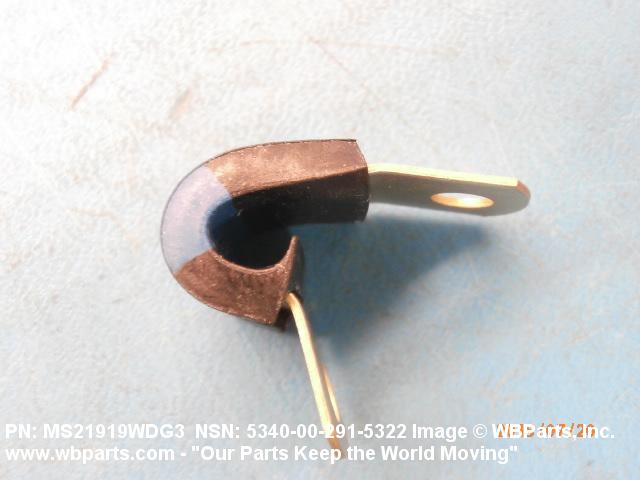

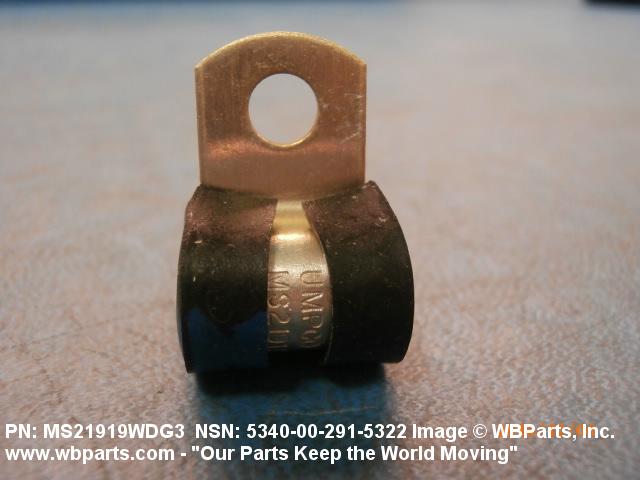

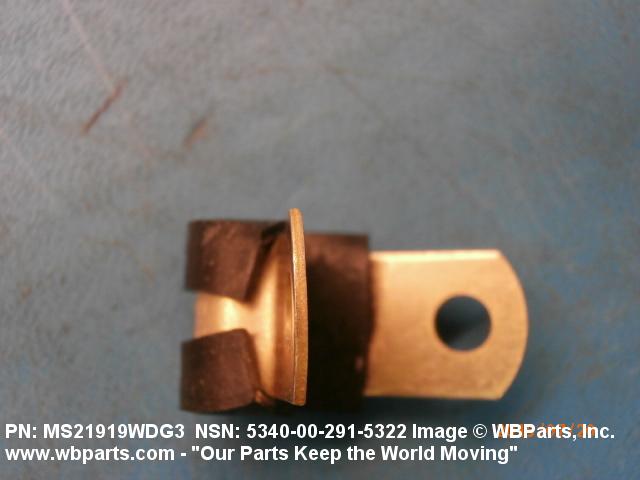

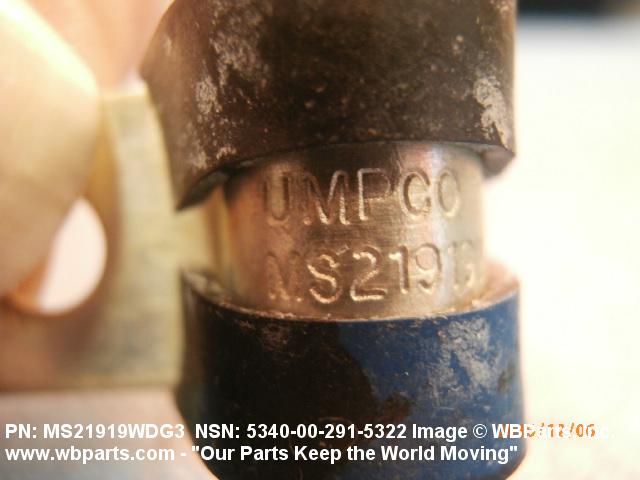

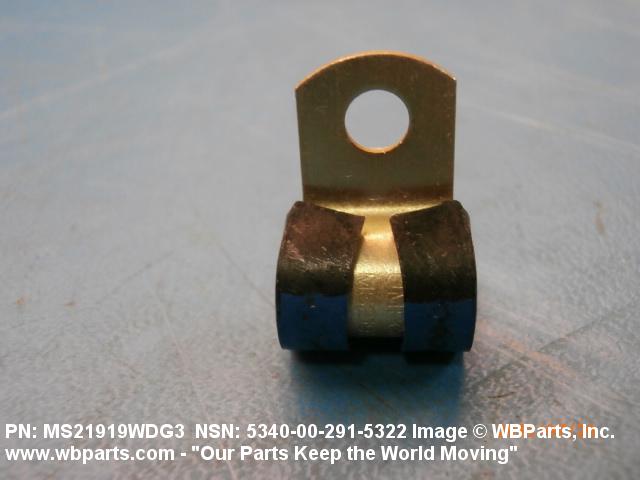

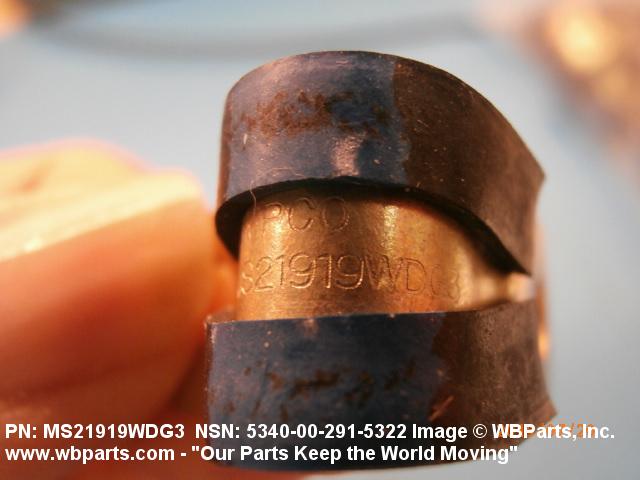

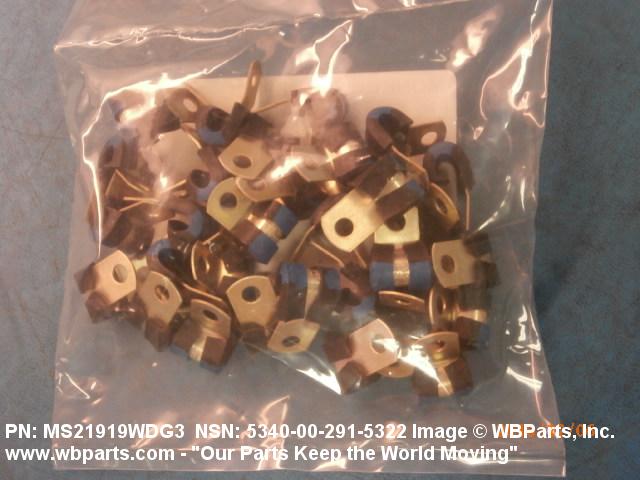

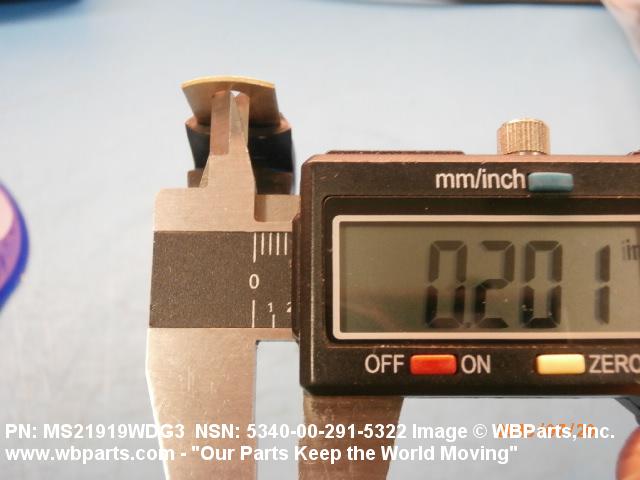

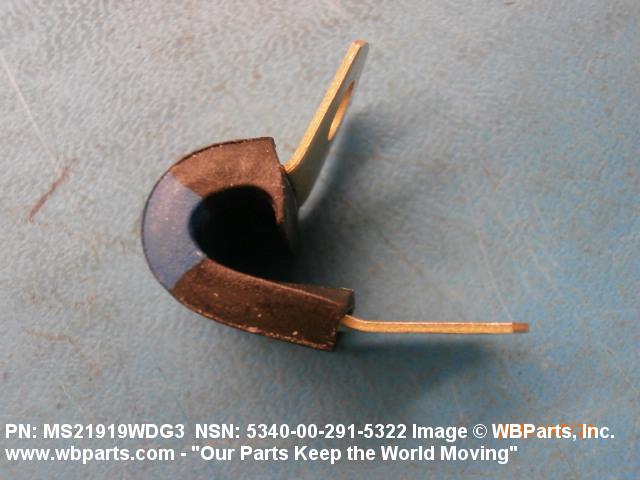

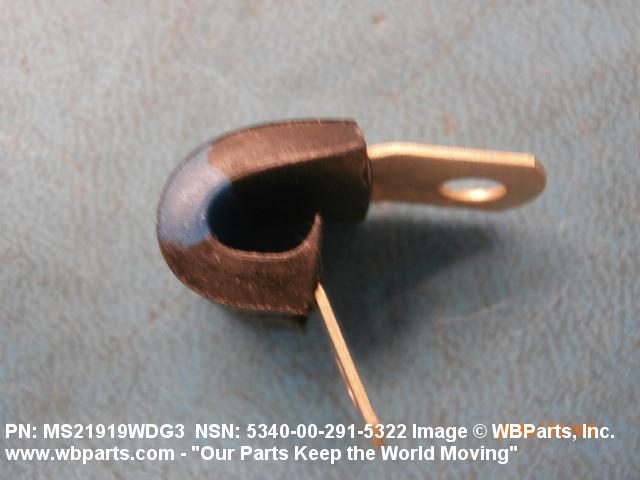

Drawings & Photos | NSN 5340-00-291-5322

Part Number	Request Date	QTY	Origin
MS21919WDG3	2024-09-268	17	Spain
MS21919WDG3	2024-08-228	12	United States
MS21919DG3	2023-05-138	24	South Africa
AS21919WDG3	2022-10-286	80	US
5340-00-291-5322	2022-04-102	15438	DIBBS
MS21919WDG3	2021-12-361	200	Sri Lanka
5340-00-291-5322	2021-08-243	40	Ukraine
MS21919WDG3	2021-07-188	36	United States
5340-00-291-5322	2021-06-168	5	US
MS219193	2020-10-288	182	Taiwan
5340-00-291-5322	2020-07-183	20	United States
5340-00-291-5322	2020-07-183	100	United States
MS21919WDG3	2020-02-57	10	DE
5340-00-291-5322	2020-01-13	32	Taiwan
MS21919WDG3	2019-09-248	250	Sri Lanka
MS219193	2019-06-165	78	Taiwan
5340-00-291-5322	2019-03-84	73060	DIBBS
5340-00-291-5322	2019-02-45	25313	DIBBS
5340-00-291-5322	2019-02-37	800	United States
5340-00-291-5322	2019-02-37	25313	DIBBS
5340-00-291-5322	2019-01-16	25313	DIBBS
5340-00-291-5322	2019-01-08	25313	DIBBS
5340-00-291-5322	2018-09-250	150	US
5340-00-291-5322	2018-05-130	50000	DIBBS
5340-00-291-5322	2018-05-122	50000	DIBBS
5340-00-291-5322	2017-12-345	500	United States
MS21919WDG3	2017-11-314	163	United States
AS21919WDG3	2017-11-305	159	United States
MS21919WDG3	2016-12-336	25	United States
MS21919WDG3	2016-11-326	24	United States
5340-00-291-5322	2016-02-42	100	DIBBS
5340-00-291-5322	2016-02-34	100	DIBBS
5340-00-291-5322	2015-11-309	4	DIBBS
5340-00-291-5322	2015-10-289	100	DIBBS
5340-00-291-5322	2015-10-287	100	DIBBS
5340-00-291-5322	2015-10-277	100	DIBBS
5340-00-291-5322	2015-09-273	100	DIBBS
5340-00-291-5322	2015-09-268	2131	DIBBS
5340-00-291-5322	2015-09-257	2131	DIBBS
5340-00-291-5322	2015-09-245	6	US
MS21919WDG3	2015-07-211	1673	United States
5340-00-291-5322	2015-07-209	20	DIBBS
5340-00-291-5322	2015-07-197	20	DIBBS
MS21919WDG3	2015-07-190	48	United States
5340-00-291-5322	2015-04-106	1	DIBBS
5340-00-291-5322	2015-04-96	5	DIBBS
5340-00-291-5322	2015-04-93	1	DIBBS
5340-00-291-5322	2015-03-85	5	DIBBS
5340-00-291-5322	2015-03-82	1	DIBBS
5340-00-291-5322	2015-03-64	5	DIBBS
5340-00-291-5322	2015-02-53	5	DIBBS
MS21919WDG3	2015-02-36	52	US
5340-00-291-5322	2014-12-356	4	DIBBS
5340-00-291-5322	2014-12-346	10	DIBBS
5340-00-291-5322	2014-12-345	4	DIBBS
5340-00-291-5322	2014-12-335	10	DIBBS
MS21919WDG3	2014-11-314	30	IN
MS21919WDG3	2014-08-219	1400	Italy
MS21919WDG3	2014-07-209	100	CA
5340-00-291-5322	2014-07-209	1625	DIBBS
5340-00-291-5322	2014-07-198	1625	DIBBS
5340-00-291-5322	2014-07-188	413	DIBBS
5340-00-291-5322	2014-06-167	413	DIBBS
5340-00-291-5322	2014-06-160	50	DIBBS
5340-00-291-5322	2014-06-156	413	DIBBS
5340-00-291-5322	2014-05-149	50	DIBBS
MS21919WDG3	2014-03-71	138	United States
MS21919WDG3	2013-09-259	8	United States
MS21919-3	2013-08-229	60	Canada
MS21919DG3	2013-08-221	25	Germany
MS21919WDG3	2012-11-310	202
MS21919DG3	2011-08-220	2	United States
5340-00-291-5322	2011-05-139	24	DIBBS
5340-00-291-5322	2011-05-128	45	DIBBS
MS21919DG3	2011-03-73	150	US
5340-00-291-5322	2011-03-72	2600	DIBBS
5340-00-291-5322	2011-03-68	11331	MANUAL
5340-00-291-5322	2011-01-14	14	DIBBS
MS21919DG3	2010-07-202	200	United States
MS21919WDG3	2006-06-178	1	US
MS21919WDG3	2006-06-178	50	US

Cross Reference | NSN 5340-00-291-5322

Part Number	Cage Code	Manufacturer
0146314S00	F0555	MBDA FRANCE
115-10-5	88818	KEARFOTT CORPORATION DBA KEARFOTT
115105	10138	ASTRONAUTICS CORPORATION OF AMERICA
2091401-5	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5C	F3341	HELLERMANNTYTON
8036	F3341	HELLERMANNTYTON
AS21919WDG3	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS21919-3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21919-3	F3341	HELLERMANNTYTON
MS21919-WDG3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21919DG3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21919DG3	F3341	HELLERMANNTYTON
MS21919WDG3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-291-5322

Compare

Related Products | NSN 5340-00-291-5322

5340-00-291-5323, 5340-00-291-5324, 5340-00-291-5325, 5340-00-291-5326, 5340-00-291-5327

Technical Data | NSN 5340-00-291-5322

Characteristic	Specifications
MATERIAL	RUBBER CHLOROPRENE CLASS CR CUSHION
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-250/5 FED SPEC SINGLE MATERIAL RESPONSE BAND AMS 3209 ASSN STD SINGLE MATERIAL RESPONSE CUSHION
SURFACE TREATMENT	CHROMATE BAND
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	M1L-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE BAND
STYLE DESIGNATOR	A5 OFFSET MOUNT

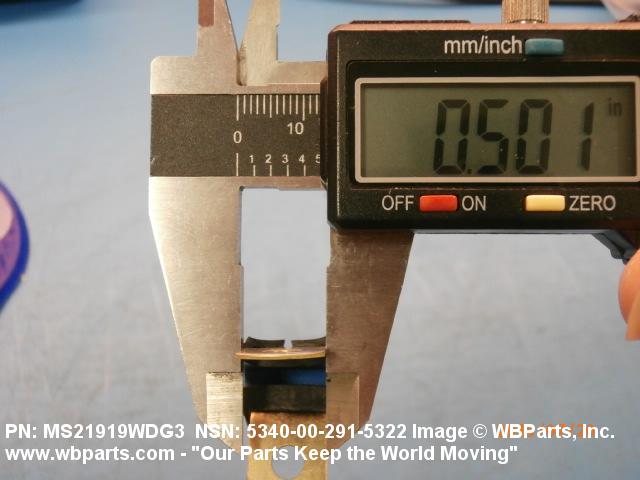

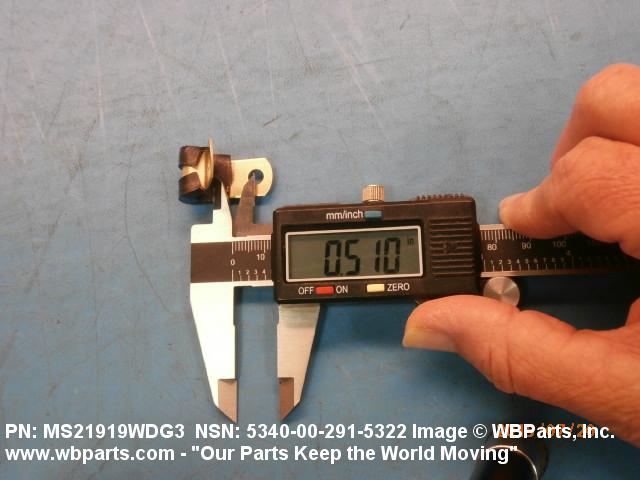

OVERALL WIDTH	0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM

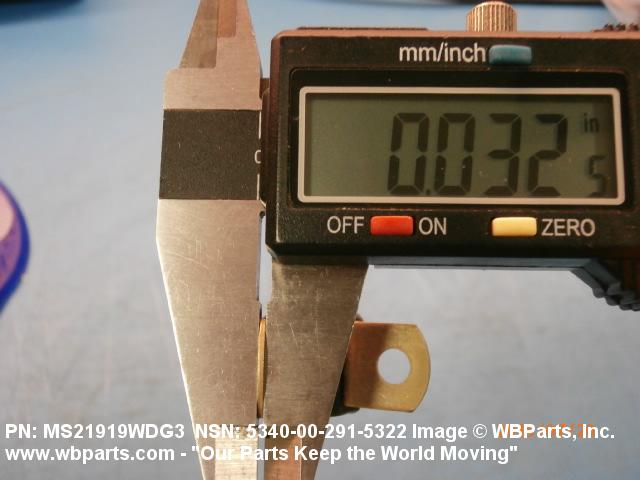

MATERIAL THICKNESS	0.032 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE	0.483 INCHES MINIMUM AND 0.513 INCHES MAXIMUM

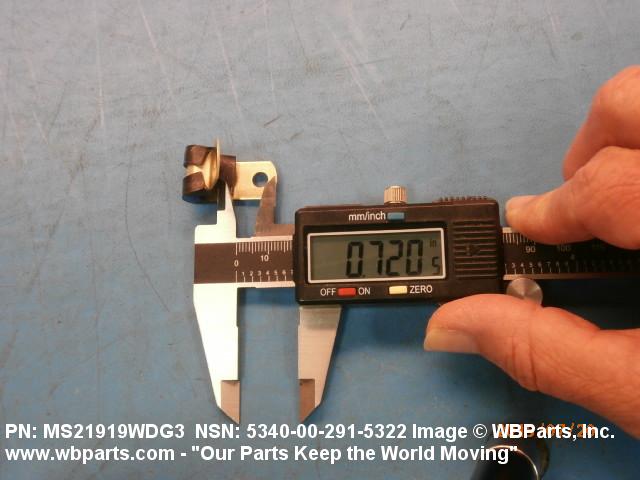

DISTANCE FROM LOOP CENTER TO TONGUE END	0.716 INCHES NOMINAL

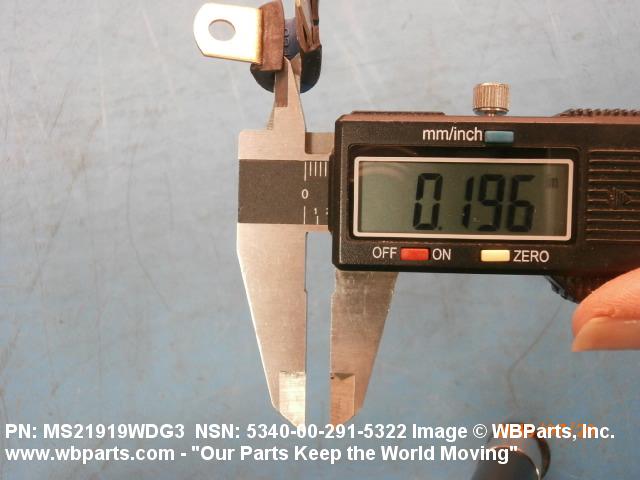

LOOP INSIDE DIAMETER	0.173 INCHES MINIMUM AND 0.203 INCHES MAXIMUM
TONGUE HOLE TYPE	ROUND, UNTHREADED
DIAMETER	0.204 INCHES NOMINAL
CUSHIONING ENVIRONMENTAL PROTECTION	WEATHER RESISTANT
NONDEFINITIVE SPEC/STD DATA	4 TYPE AND A CLASS

Restrictions/Controls & Freight Information | NSN 5340-00-291-5322

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-00-291-5322

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	GC	TG:UH/60A BLACKHAWK
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
