NSN 5340-00-291-5323 MS219194DG, MS21919-4DG, MS21919DG4

Product Details | LOOP CLAMP

5340-00-291-5323 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000

Part Alternates: MS219194DG, MS21919-4DG, MS21919DG4, MS21919DG-4, MS21919GD4, MS21919-GD4, MS21919WDG4, MS21919WDG4D, AS21919WDG04, AS21919WDG4, BA40408021, BA404080-21, Z00.N7141060606, Z00N7141060606, 10082489 , 24527-3004, 2822642, 3696440010, DG4, 7627972P034, 91303897, 5340-00-291-5323, 00-291-5323, 5340002056301 , 5340002915323, 002915323, 245273004

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-291-5323	17532 ( CLAMP, LOOP )

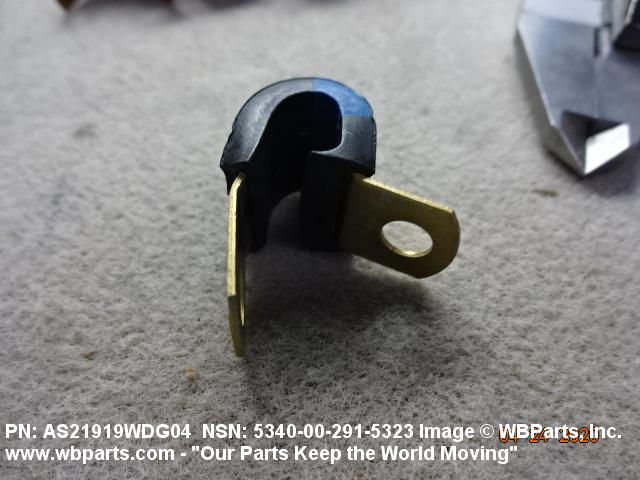

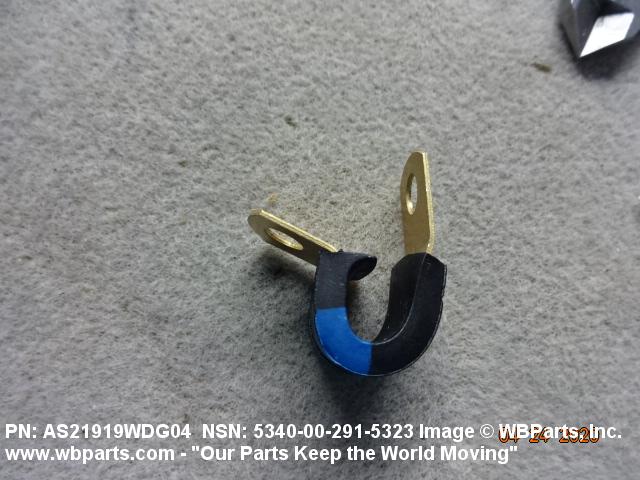

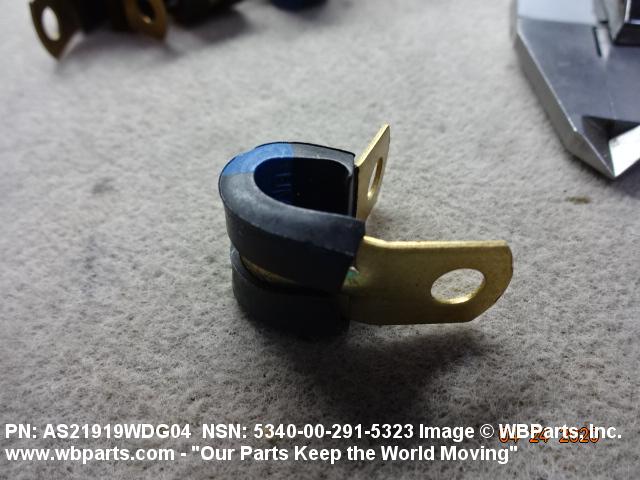

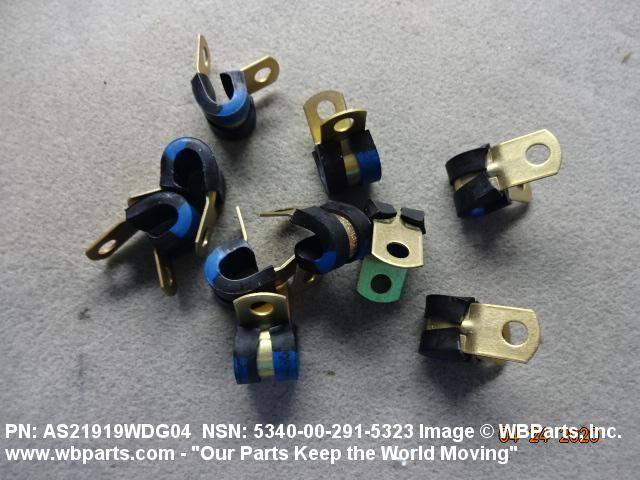

Drawings & Photos | NSN 5340-00-291-5323

Part Number	Request Date	QTY	Origin
MS21919WDG4	2024-09-268	20	Spain
5340-00-291-5323	2024-09-255	2	Canada
MS21919WDG4	2024-08-234	4	Japan
AS21919WDG04	2024-08-228	26	United States
MS21919WDG4	2024-08-228	8	United States
MS21919WDG4	2024-07-185	1	Japan
AS21919WDG4	2024-03-81	22	US
AS21919WDG04	2023-10-299	4	US
MS21919DG4	2023-08-215	60	India
AS21919WDG04	2023-07-212	1	United Arab Emirates
AS21919WDG04	2023-07-212	1	United Arab Emirates
MS21919WDG4	2023-04-117	100	US
5340-00-291-5323	2022-11-313	50	IN
5340-00-291-5323	2022-03-87	77	US
AS21919WDG4	2021-10-287	100	United States
5340-00-291-5323	2021-06-176	5	US
AS21919WDG4	2021-06-167	40	MY
AS21919WDG4	2021-06-167	40	TR
AS21919WDG4	2021-06-165	40	US
AS21919WDG4	2021-03-63	20	United States
AS21919WDG4	2021-02-46	25	United States
AS21919WDG4	2020-11-307	34	United States
5340-00-291-5323	2020-10-301	4	US
AS21919WDG4	2020-08-244	16	United States
MS21919WDG4	2020-05-141	120	US
MS21919WDG4	2020-05-141	200	US
MS21919WDG4	2020-05-141	250	US
AS21919WDG4	2020-04-107	3	us
AS21919WDG04	2020-02-44	14	United States
5340-00-291-5323	2020-01-13	96	Taiwan
AS21919WDG4	2019-12-339	33	United States
AS21919WDG4	2019-11-315	33	United States
MS21919WDG4	2019-09-248	250	Sri Lanka
AS21919WDG04	2019-08-240	50	us
AS21919WDG04	2019-08-217	25	us
AS21919WDG04	2019-06-178	375	United States
5340-00-291-5323	2019-05-130	1000	US
5340-00-291-5323	2019-05-127	1421	DIBBS
5340-00-291-5323	2019-03-63	533	DIBBS
5340-00-291-5323	2019-02-44	348	DIBBS
AS21919WDG04	2019-02-42	40	Lebanon
5340-00-291-5323	2019-01-30	1026	DIBBS
MS21919WDG4	2018-09-257	100	United States
5340-00-291-5323	2018-09-250	150	US
MS21919WDG4	2018-09-250	500	US
MS21919WDG4	2018-09-250	1000	US
MS21919WDG4	2018-07-183	25	United States
5340-00-291-5323	2017-10-297	1	DIBBS-KIT
MS21919DG4	2017-10-297	1
5340-00-291-5323	2017-10-296	34	DIBBS
5340-00-291-5323	2017-09-257	50	TR
MS21919WDG4	2017-08-215	10	United States
MS21919WDG4	2017-07-212	9	US
5340-00-291-5323	2017-04-96	3	United States
MS21919WDG4	2017-04-96	10	United States
MS21919WDG4	2017-02-59	200	Pakistan
MS21919WDG4	2017-02-58	200	Pakistan
5340-00-291-5323	2016-09-266	1	DIBBS
5340-00-291-5323	2016-09-258	1	DIBBS
5340-00-291-5323	2016-06-180	8	DIBBS
5340-00-291-5323	2016-06-179	25	United States
5340-00-291-5323	2016-06-174	1	DIBBS
5340-00-291-5323	2016-06-168	1	DIBBS
5340-00-291-5323	2016-04-96	1	DIBBS
2822642	2016-03-81	145	United States
5340-00-291-5323	2016-03-81	145	MANUAL
5340-00-291-5323	2016-03-63	1	DIBBS
5340-00-291-5323	2015-10-294	1	DIBBS
MS21919WDG4	2015-10-293	1	US
MS21919WDG4	2015-09-251	20	Malaysia
5340-00-291-5323	2015-08-237	1	DIBBS
MS21919WDG4	2015-07-211	478	United States
MS21919WDG4	2015-07-203	10	US
AS21919WDG04	2015-06-176	80	United States
5340-00-291-5323	2015-06-156	50	US
5340-00-291-5323	2015-05-127	13	United States
5340-00-291-5323	2015-03-71	1	DIBBS
5340-00-291-5323	2015-02-53	1	DIBBS
5340-00-291-5323	2015-01-15	1	DIBBS
5340-00-291-5323	2014-12-335	1	DIBBS
MS21919WDG4	2014-11-314	10	IN
MS21919WDG4	2014-07-209	100	CA
5340-00-291-5323	2014-07-190	2	DIBBS
MS21919WDG4	2014-03-71	309	United States
AS21919WDG04	2013-09-269	585	United States
5340-00-291-5323	2013-08-224	180	United States
AS21919WDG4	2013-08-224	180	us
MS21919DG4	2013-08-221	25	Germany
5340-00-291-5323	2013-02-38	58	DIBBS
MS21919DG4	2012-11-310	193
MS21919WDG4	2012-11-310	120
AS21919WDG4	2012-06-166	1	US
AS21919WDG04	2012-03-82	100	US
MS21919WDG4	2012-03-80	5	BR
AS21919WDG04	2011-11-307	1330	United States
AS21919WDG04	2011-09-259	200	Sri Lanka
5340-00-291-5323	2011-04-95	29	DIBBS
5340-00-291-5323	2011-04-95	13	DIBBS
5340-00-291-5323	2011-04-95	1	DIBBS
MS21919WDG4	2011-03-82	1	Australia
5340-00-291-5323	2011-03-68	32	MANUAL
5340-00-291-5323	2010-06-159	135	United States
MS21919WDG4	2009-12-364	200	Italy
MS21919DG4	2009-05-125	500	Italy
5340-00-291-5323	2009-04-94	100	Turkey
5340-00-291-5323	2008-03-91	2500	DIBBS

Cross Reference | NSN 5340-00-291-5323

Part Number	Cage Code	Manufacturer
24527-3004	19397	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
2822642	001JK	EMBRAER S/A
2822642	FB459	EMBRAER AVIATION INTERNATIONAL
2822642	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
3696440010	B0897	FN HERSTAL SA
5340002056301	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
7627972P034	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
91303897	F6481	THALES SA
AS21919WDG04	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS21919WDG4	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
BA404080-21	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
DG4	F3341	HELLERMANNTYTON
MS21919-4DG	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21919-GD4	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21919DG-4	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21919DG4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21919DG4	F3341	HELLERMANNTYTON
MS21919WDG4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21919WDG4D	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
Z00.N7141060606	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-291-5323

Compare

Related Products | NSN 5340-00-291-5323

5340-00-291-5324, 5340-00-291-5325, 5340-00-291-5326, 5340-00-291-5327, 5340-00-291-5328

Technical Data | NSN 5340-00-291-5323

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2024 BAND RUBBER CHLOROPRENE CLASS CR CUSHION
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-250/5 FED SPEC SINGLE MATERIAL RESPONSE BAND AMS 3209 ASSN STD SINGLE MATERIAL RESPONSE CUSHION
SURFACE TREATMENT	CHROMATE BAND
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	M1L-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE BAND
STYLE DESIGNATOR	A5 OFFSET MOUNT

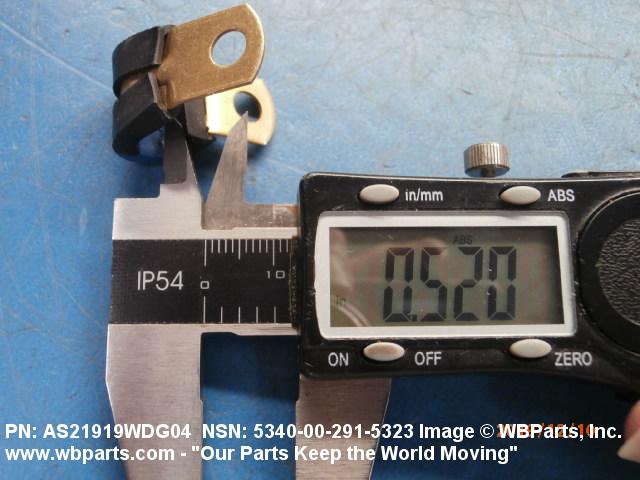

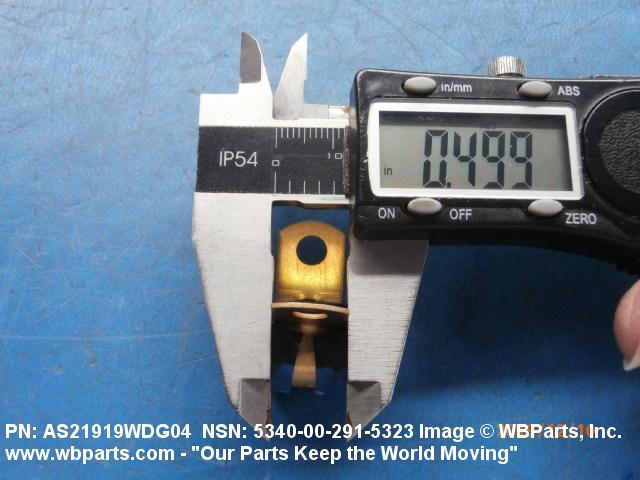

OVERALL WIDTH	0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM

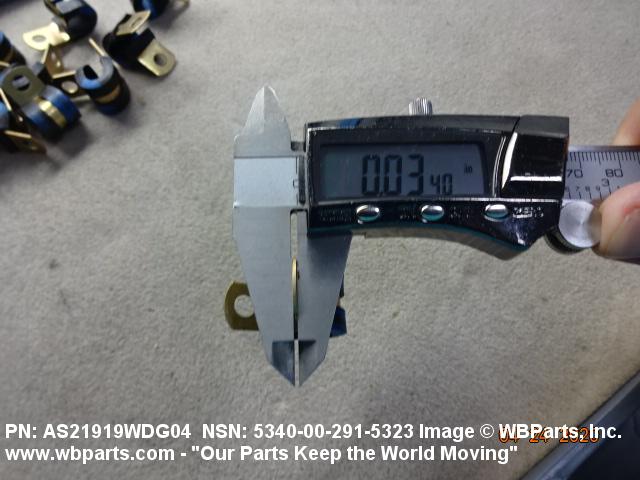

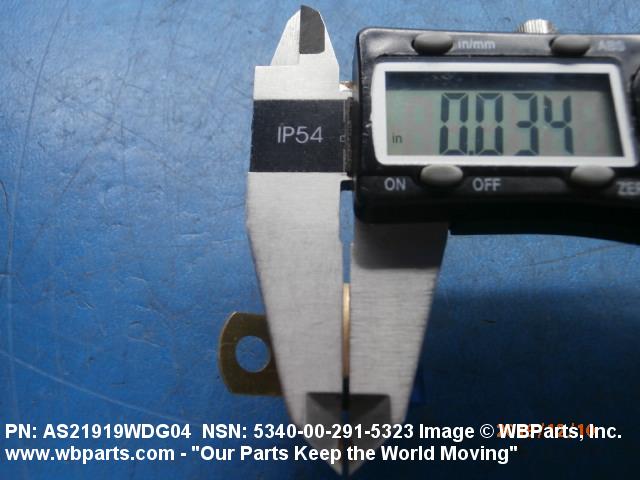

MATERIAL THICKNESS	0.032 INCHES NOMINAL

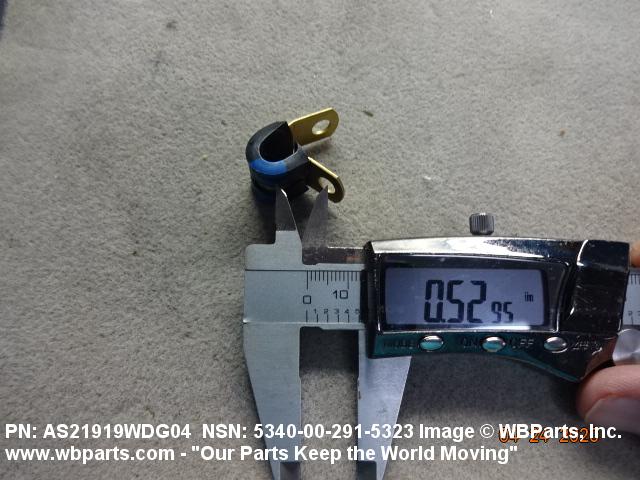

CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE	0.514 INCHES MINIMUM AND 0.544 INCHES MAXIMUM

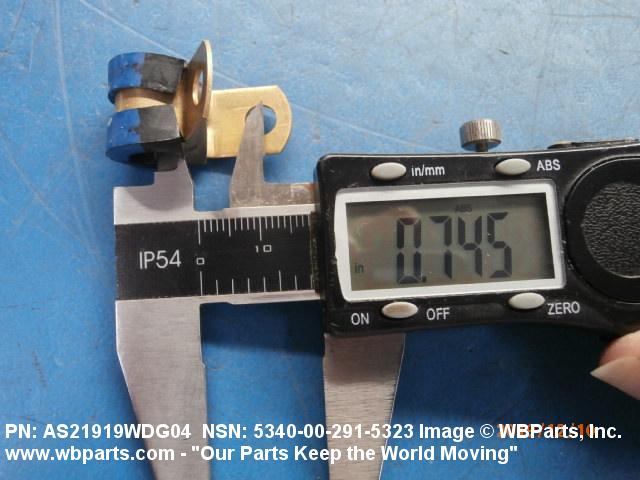

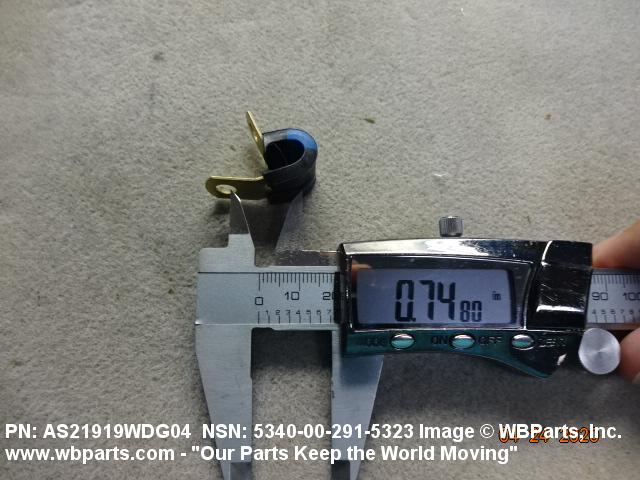

DISTANCE FROM LOOP CENTER TO TONGUE END	0.747 INCHES NOMINAL

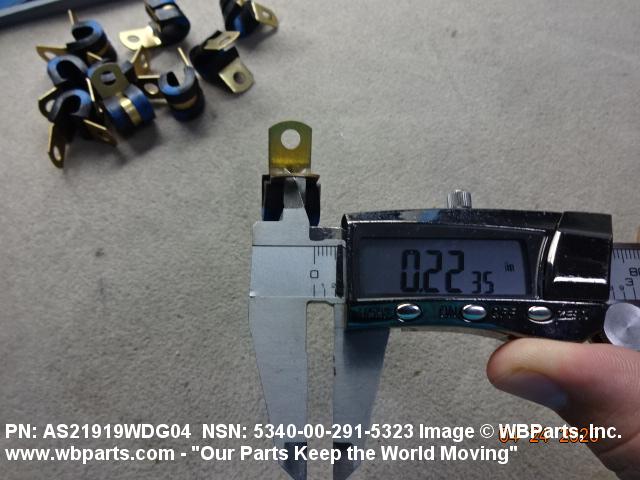

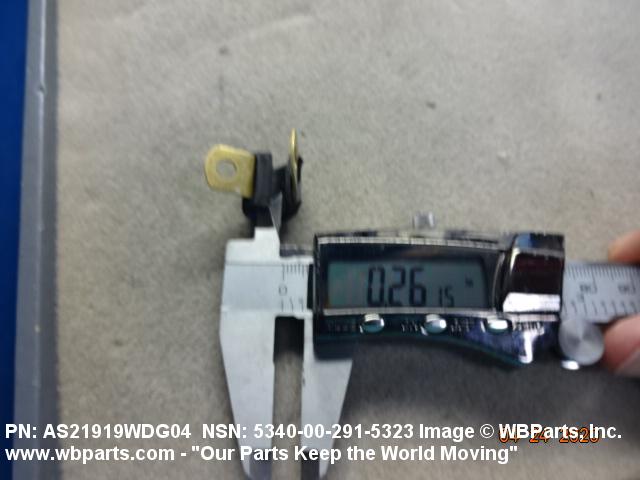

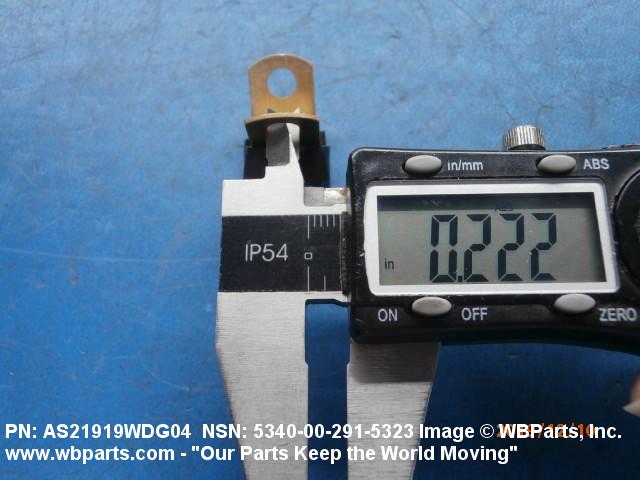

LOOP INSIDE DIAMETER	0.235 INCHES MINIMUM AND 0.265 INCHES MAXIMUM
TONGUE HOLE TYPE	ROUND, UNTHREADED
DIAMETER	0.204 INCHES NOMINAL
CUSHIONING ENVIRONMENTAL PROTECTION	WEATHER RESISTANT
NONDEFINITIVE SPEC/STD DATA	4 TYPE AND B CLASS

Restrictions/Controls & Freight Information | NSN 5340-00-291-5323

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	Y	180 months
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	013120	ALUMINUM ARTICLE NOI SUB 6
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-00-291-5323

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SO	TG:SPECIAL OPERATIONAL FORCES (SOF) PECULIAR
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Y	180 months
Purchasing	QTY UOM	1 HD : Each
