NSN 5340-00-257-3769 AN16116RL, AN161-16RL, 00-257-3769
Product Details | ROD END CLEVIS
5340-00-257-3769 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: AN16116RL, AN161-16RL, 5340-00-257-3769, 00-257-3769, 5340002573769, 002573769
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-257-3769 | 03796 ( CLEVIS, ROD END ) |

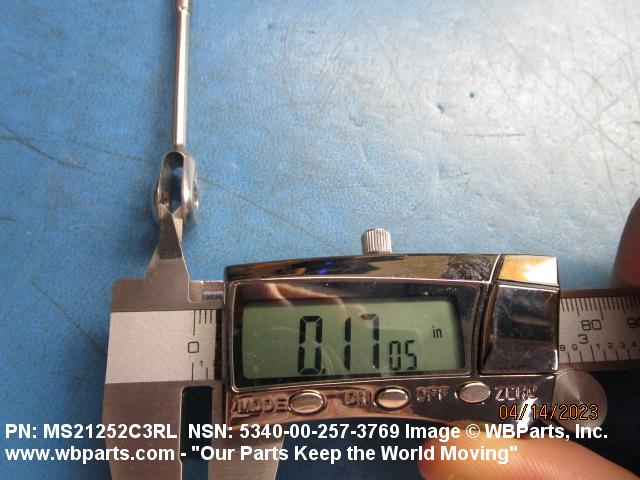

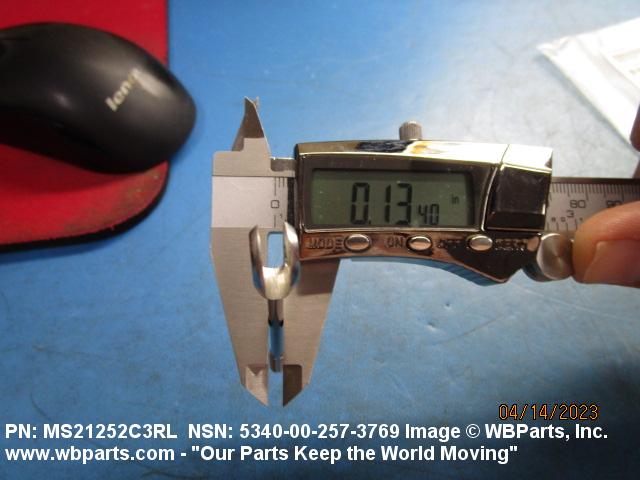

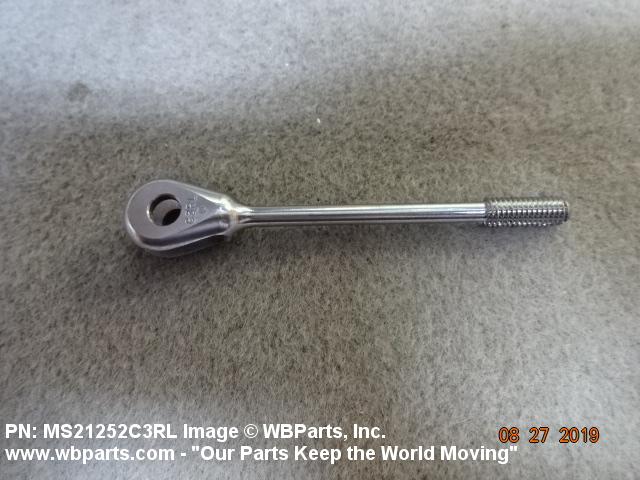

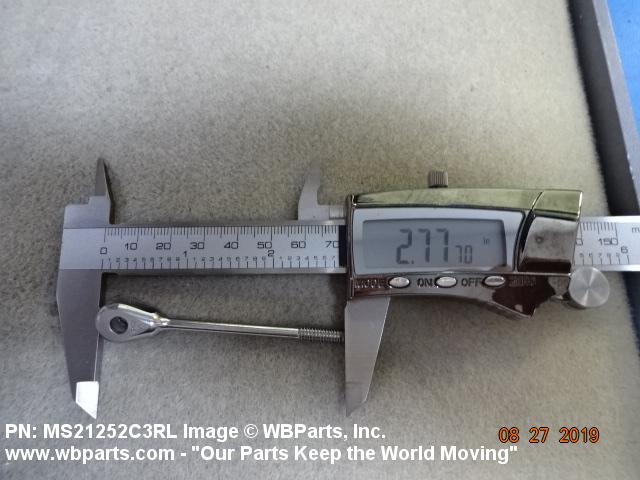

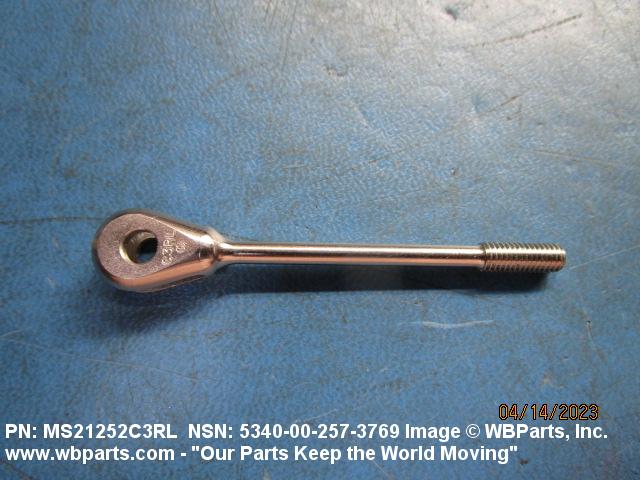

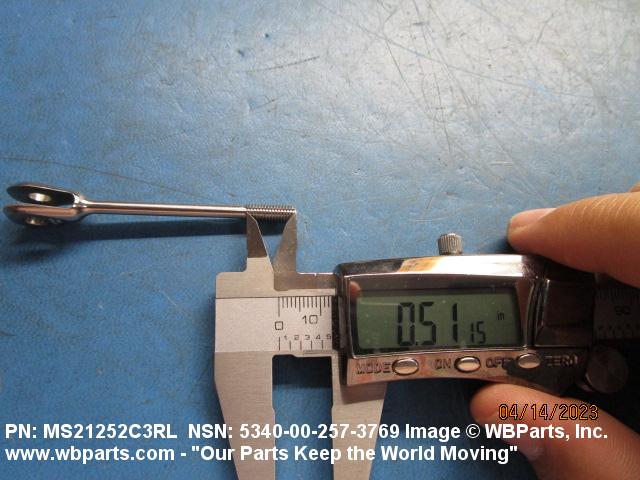

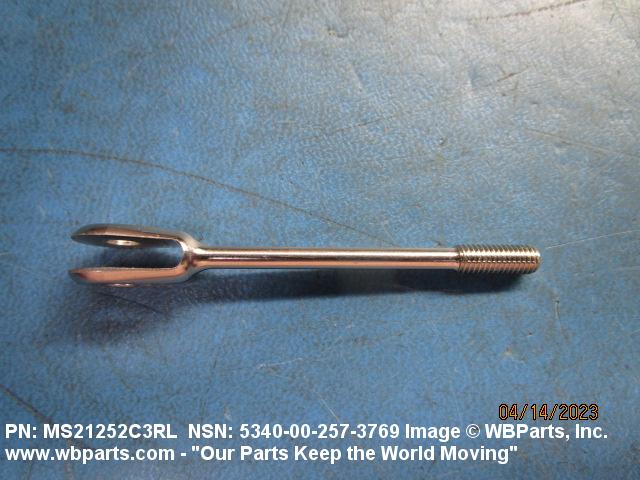

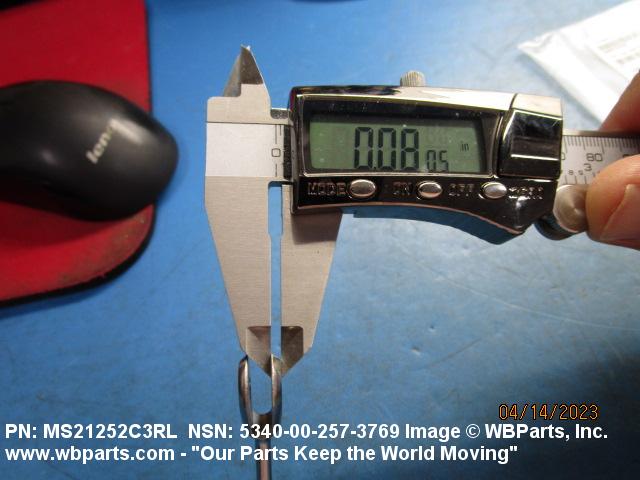

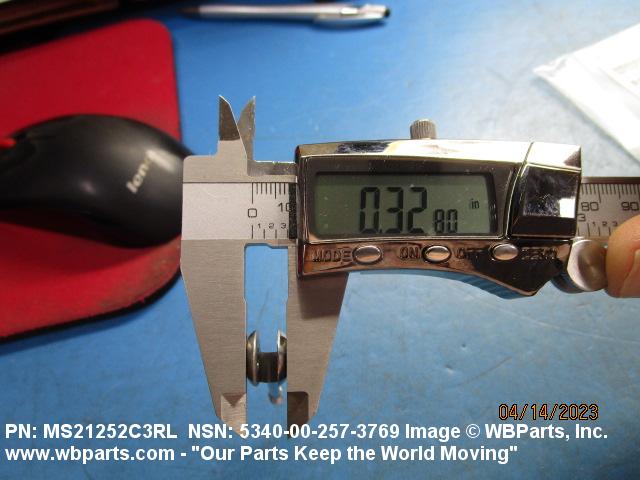

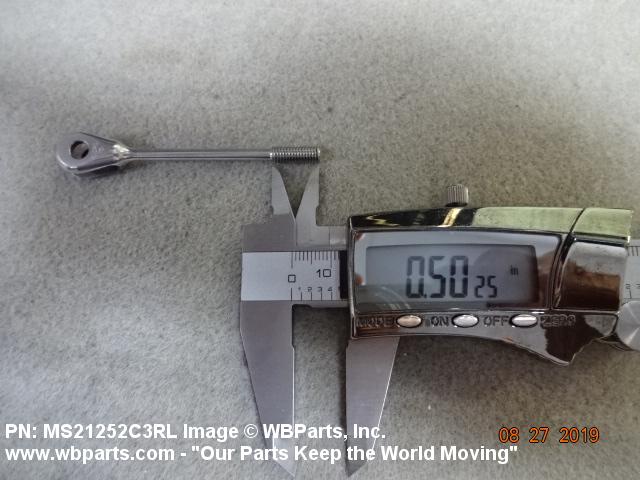

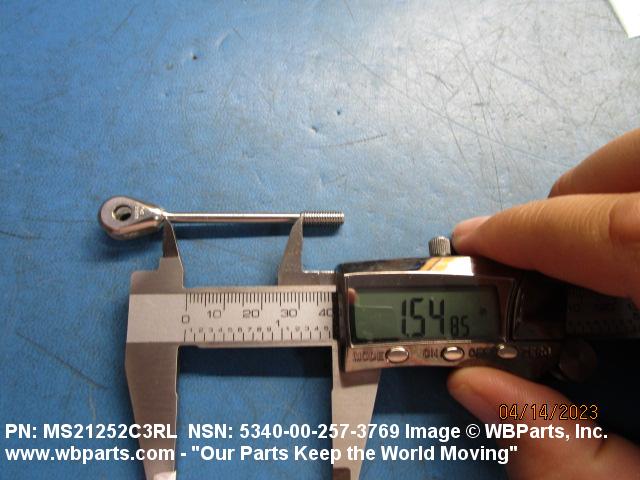

Drawings & Photos | NSN 5340-00-257-3769
Cross Reference | NSN 5340-00-257-3769
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN161-16RL | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-257-3769
Technical Data | NSN 5340-00-257-3769
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.190 INCHES ROD CONNECTION |
| THREAD CLASS | 3A ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 0.453 INCHES MINIMUM AND 0.547 INCHES MAXIMUM ROD CONNECTION |
| STYLE DESIGNATOR | 36 CLEVIS |
| SHANK LENGTH | 1.547 INCHES MINIMUM AND 1.703 INCHES MAXIMUM |
| SHANK DIAMETER | 0.133 INCHES MINIMUM AND 0.139 INCHES MAXIMUM |
| OVERALL WIDTH | 0.314 INCHES MINIMUM AND 0.329 INCHES MAXIMUM |
| END RADIUS | 0.250 INCHES NOMINAL |
| FORK SPAN WIDTH | 0.156 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 2.469 INCHES MINIMUM AND 2.531 INCHES MAXIMUM |
| FORK ARM THICKNESS | 0.072 INCHES MINIMUM AND 0.086 INCHES MAXIMUM |
| FORK DEPTH | 0.375 INCHES NOMINAL |
| HOLE SHAPE | ROUND |
| HOLE DIAMETER | 0.190 INCHES NOMINAL |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN161-16RL |
Restrictions/Controls & Freight Information | NSN 5340-00-257-3769
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094140 | CLEVISES IRON/STEEL |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
