Product Details | DUST AND MOISTURE SEAL PROTECTIVE CAP

5340-00-200-6124 An item specifically designed to fit over the opening(s) of various items to provide mechanical protection and/or to prevent the entrance of foreign matter during painting, shipping, storage, or the like. It is not designed to retain fluids under pressure during equipment operation. Excludes COVER, ELECTRICAL CONNECTOR; HOOD, SEALING, BOTTLE; and STOPPER, BOTTLE. For items designed to fit into or over the opening(s) of various items, see CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.

Part Alternates: N215EC8, N215-EC8, 67400538, 6740053-8, 68979538, 6897953-8, EC8, EC-8, 129-900-068, 17360607400, 173-606074-00, 5340-00-200-6124, 00-200-6124, 5340002006124, 002006124, 129900068, 189513831

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-200-6124

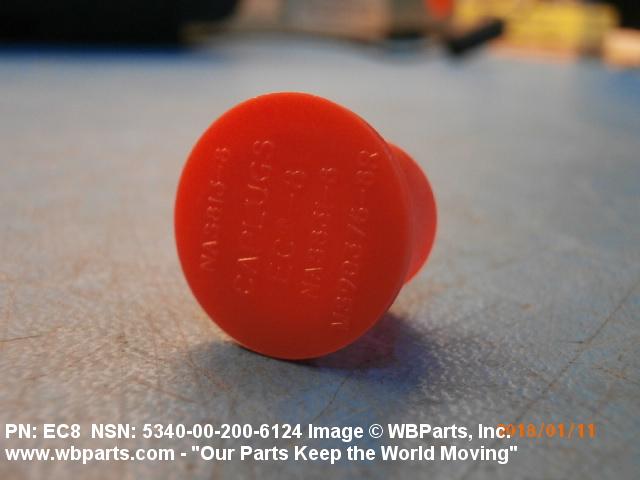

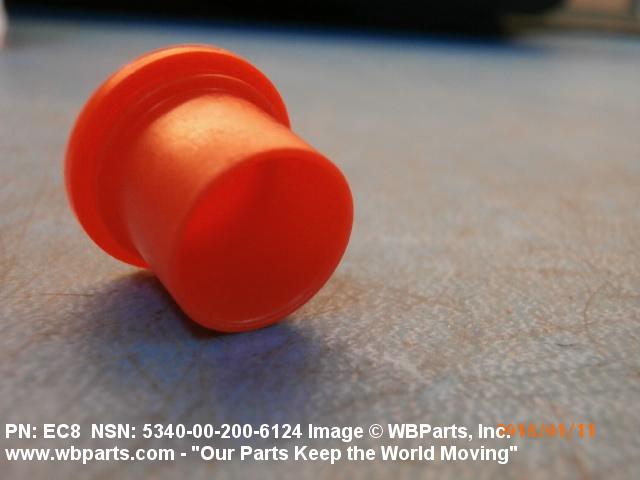

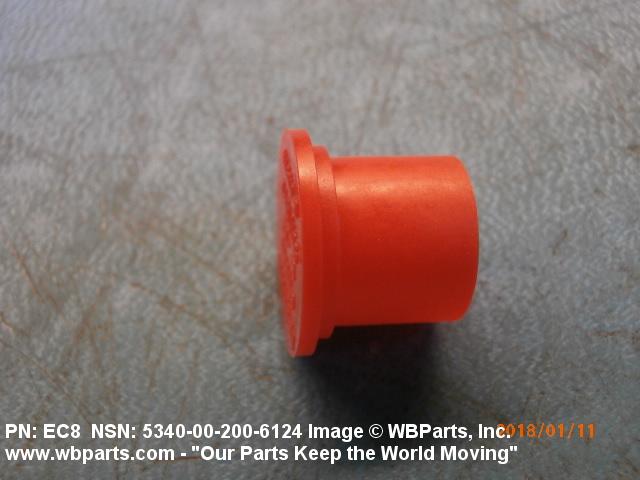

Drawings & Photos | NSN 5340-00-200-6124


Demand History | NSN 5340-00-200-6124

Part Number Request Date QTY Origin
EC8 2024-11-313 200 Japan
EC8 2018-10-295 500 Malaysia
EC8 2017-10-304 1 Norway
EC8 2017-10-304 1 Norway
EC8 2017-05-138 100 United States
N215-EC8 2013-08-229 3000 Canada

Cross Reference | NSN 5340-00-200-6124

Part Number Cage Code Manufacturer
129-900-068 15090 RAYTHEON COMPANY DBA RAYTHEON
173-606074-00 F6162 AMPHENOL SOCAPEX
189513831 FAQ15 SAGEM DEFENSE SECURITE - GROUPESAFRAN
6740053-8 24617 GENERAL MOTORS CORP
6740053-8 73342 ALLISON TRANSMISSION, INC.
6897953-8 73342 ALLISON TRANSMISSION, INC.
EC-8 99017 CAPLUGS LLC DBA MOKON DIV CAPLUGS
EC8 95760 PROTECTIVE CLOSURES CO INC
N215-EC8 F2521 PLASTIFRANCE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-200-6124

Technical Data | NSN 5340-00-200-6124

Characteristic Specifications
MATERIAL PLASTIC
DESIGN TYPE FRICTION

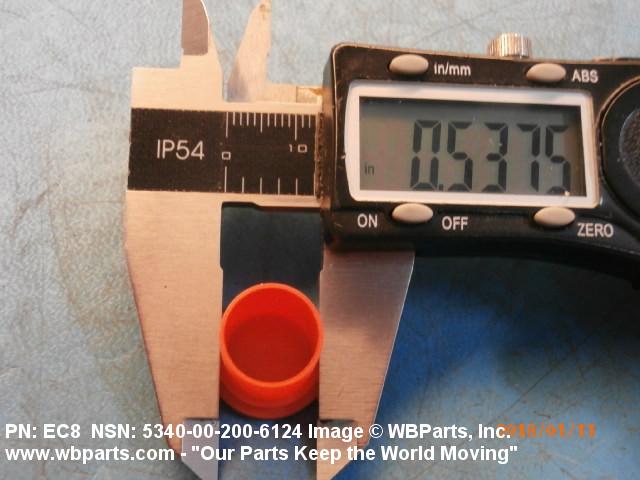

TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED 0.500 INCHES NOMINAL

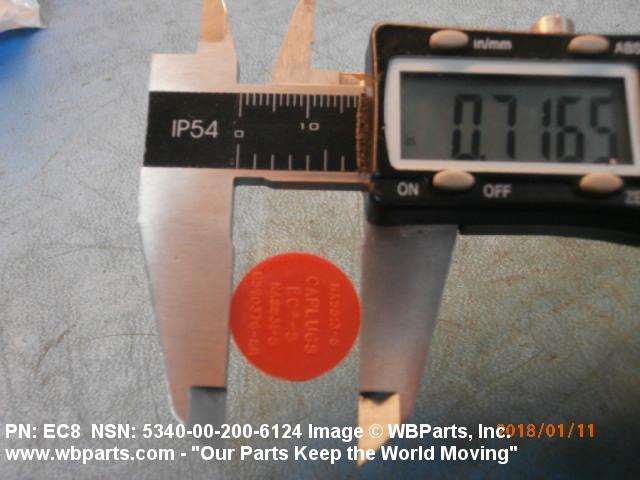

OVERALL DIAMETER 0.750 INCHES NOMINAL

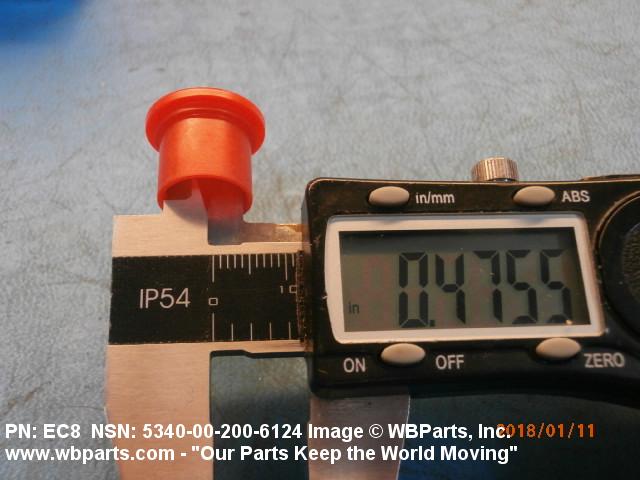

INSIDE DIAMETER LENGTH 0.500 INCHES NOMINAL
ROUND CAP OUTSIDE SURFACE CONDITION SMOOTH
SPECIAL FEATURES 1/2 IN. LG OF ENGAGEMENT

Restrictions/Controls & Freight Information | NSN 5340-00-200-6124

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 156600 PLASTIC/RUBBER ARTICLE VIZ:
Less than car load rating W Rating Variable
Less than truck load rating W Rating Variable
Water commodity Code 772 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5340-00-200-6124

Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Materiel Management CodeIIndustrial MaterielDefense Industrial Supply Center (DISC)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of SupplyS9IDefense Industrial Supply Center
Philadelphia, PA 19111
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
H
EA : Each
Category Code Description
Cognizance Codes9ZNavy-owned stocks of defense industrial material
Naval Inventory Control Point, Mechanicsburg
Source of SupplyS9IDefense Industrial Supply Center
Philadelphia, PA 19111
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
H
EA : Each
