NSN 5340-00-170-0346 12925661, 1292566-1, 00-170-0346
Product Details | LOOP CLAMP
5340-00-170-0346 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: 12925661, 1292566-1, 5340-00-170-0346, 00-170-0346, 5340001700346, 001700346
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 FEB 1973 | 00-170-0346 | 17532 ( CLAMP, LOOP ) |
Drawings & Photos | NSN 5340-00-170-0346
Cross Reference | NSN 5340-00-170-0346
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1292566-1 | 55973 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-170-0346
Technical Data | NSN 5340-00-170-0346
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 3003 BAND |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/2,H14 FED SPEC SINGLE MATERIAL RESPONSE BAND |

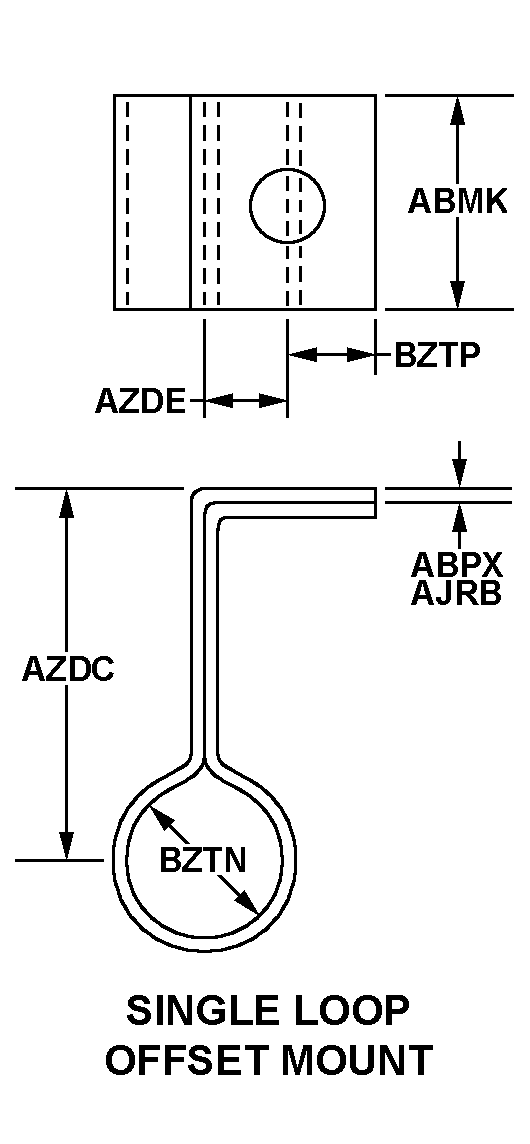

| STYLE DESIGNATOR | A24 SINGLE LOOP OFFSET MOUNT |
| OVERALL WIDTH | 0.219 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.015 INCHES MINIMUM AND 0.017 INCHES MAXIMUM |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 0.308 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND LUG HOLE | 0.094 INCHES NOMINAL |
| LOOP INSIDE DIAMETER | 0.116 INCHES NOMINAL |
| DISTANCE FROM OUTER EDGE OF LUG TO HOLE CENTER | 0.094 INCHES NOMINAL |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |
| DIAMETER | 0.078 INCHES MINIMUM AND 0.083 INCHES MAXIMUM |
| MANUFACTURERS CODE | 55973 |
| DESIGN CONTROL REFERENCE | 1292566-1 |
Restrictions/Controls & Freight Information | NSN 5340-00-170-0346
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
