NSN 5340-00-170-0347 18086861, 1808686-1, 00-170-0347
Product Details | LOOP CLAMP
5340-00-170-0347 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: 18086861, 1808686-1, 5340-00-170-0347, 00-170-0347, 5340001700347, 001700347
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 FEB 1973 | 00-170-0347 | 17532 ( CLAMP, LOOP ) |
Drawings & Photos | NSN 5340-00-170-0347
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-170-0347
Technical Data | NSN 5340-00-170-0347
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 BAND |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE BAND |

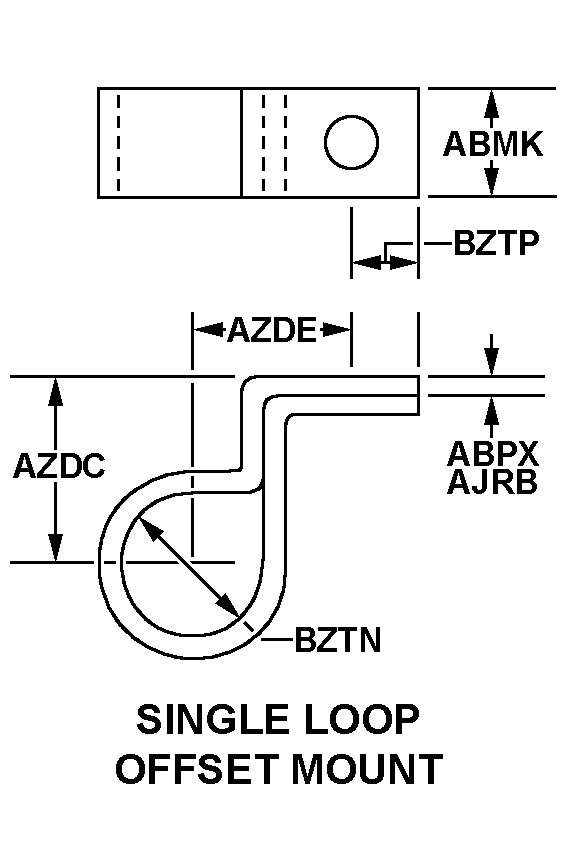

| STYLE DESIGNATOR | A22 SINGLE LOOP OFFSET MOUNT |
| OVERALL WIDTH | 0.219 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.015 INCHES NOMINAL |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 0.203 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND LUG HOLE | 0.226 INCHES NOMINAL |
| LOOP INSIDE DIAMETER | 0.172 INCHES NOMINAL |
| DISTANCE FROM OUTER EDGE OF LUG TO HOLE CENTER | 0.094 INCHES NOMINAL |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |
| DIAMETER | 0.092 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| MANUFACTURERS CODE | 55972 |
| DESIGN CONTROL REFERENCE | 1808686-1 |
Restrictions/Controls & Freight Information | NSN 5340-00-170-0347
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
