Product Details | TEE HINGE
5340-00-164-3558 A hinge whose general shape is like the letter T, with one leaf resembling that of a butt hinge, and the other that of a strap hinge. The hinge may also have both leaves resembling strap hinges or butt hinges of different widths.
Part Alternates: 11607505, 5340-00-164-3558, 00-164-3558, 5340001643558, 001643558
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 JUN 1982 | 00-164-3558 | 06916 ( HINGE, TEE ) |
Drawings & Photos | NSN 5340-00-164-3558
Demand History | NSN 5340-00-164-3558
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-164-3558 | 2019-09-255 | 1 | DIBBS |
| 5340-00-164-3558 | 2018-02-52 | 20 | US |
| 5340-00-164-3558 | 2018-01-25 | 16 | United States |
| 5340-00-164-3558 | 2017-07-209 | 10 | US |
| 5340-00-164-3558 | 2015-05-131 | 1 | DIBBS |
| 5340-00-164-3558 | 2015-04-119 | 1 | DIBBS |
| 5340-00-164-3558 | 2014-11-321 | 1 | DIBBS |
| 5340-00-164-3558 | 2014-04-97 | 1 | DIBBS |
| 5340-00-164-3558 | 2014-03-85 | 1 | DIBBS |
| 5340-00-164-3558 | 2013-05-130 | 1 | DIBBS |
| 5340-00-164-3558 | 2012-06-153 | 1 | DIBBS |
| 5340-00-164-3558 | 2010-04-91 | 30 | DIBBS |
| 5340-00-164-3558 | 2010-02-33 | 31 | DIBBS |
| 5340-00-164-3558 | 2009-11-308 | 17 | DIBBS |
Cross Reference | NSN 5340-00-164-3558
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11607505 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-164-3558
Related Products | NSN 5340-00-164-3558
Technical Data | NSN 5340-00-164-3558
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY QQ-A-601,ALLOY 535.0 BODY STEEL,ASTM A108,UNS DESIGNATION G10350 PIN OR ASTM A108 UNS DESIGNATION G10400 PIN |
| SURFACE TREATMENT AND LOCATION | CHROMATE, MIL-C-5541, CLASS 1A OVERALL |

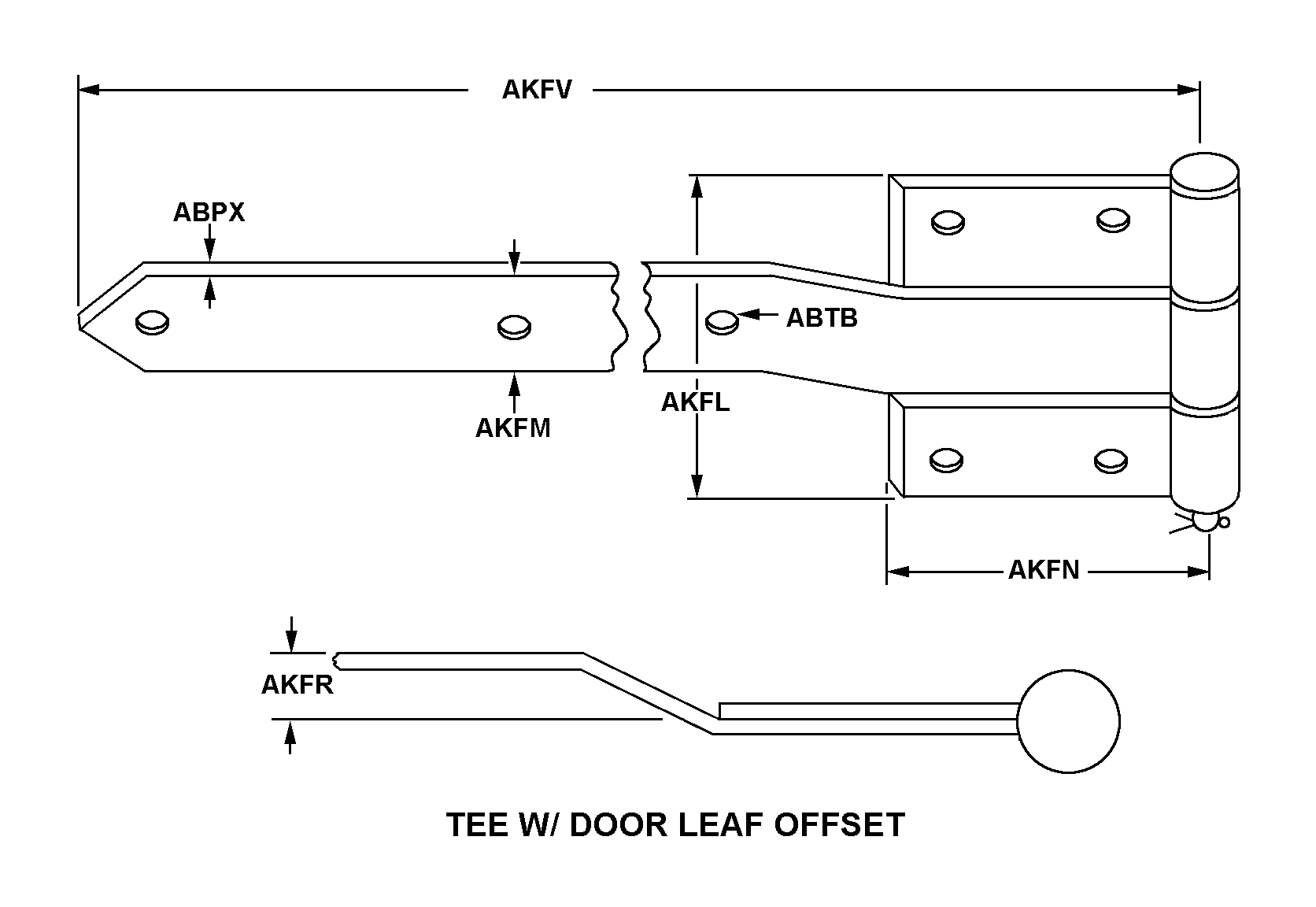

| STYLE DESIGNATOR | 70 TEE W/DOOR LEAF OFFSET |
| MATERIAL THICKNESS | 0.310 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | ANY ACCEPTABLE |
| JAMB LEAF WIDTH | 4.500 INCHES NOMINAL |
| DOOR LEAF WIDTH | 2.000 INCHES NOMINAL |
| PIN CENTER TO JAMB LEAF EDGE DISTANCE | 5.562 INCHES NOMINAL |
| DOOR LEAF OFFSET DISTANCE | 0.560 INCHES NOMINAL |
| DEVELOPED DISTANCE FROM PIN CENTER TO OFFSET DOOR LEAF EDGE | 12.380 INCHES NOMINAL |
| PIN TIP STYLE | 4 OVAL HEAD |
| HINGE MOUNTING TYPE | HALF MORTISE |
| REVERSIBLE FEATURE | NOT INCLUDED |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 3 |
| MOUNTING HOLE QUANTITY | 7 |
| PERFORMANCE TYPE | NOT RATED |
