Product Details | TEE HINGE

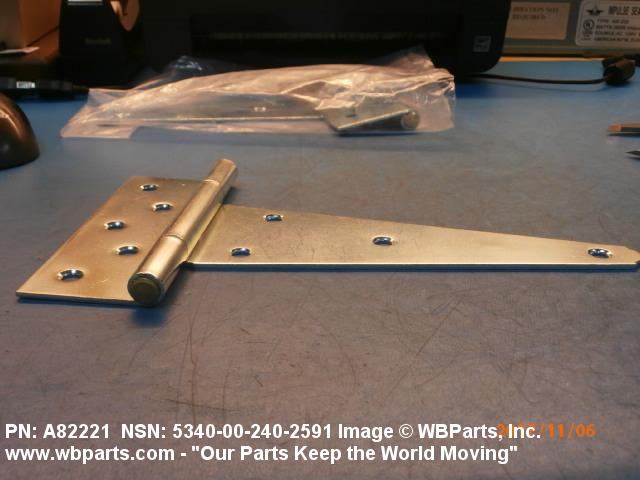

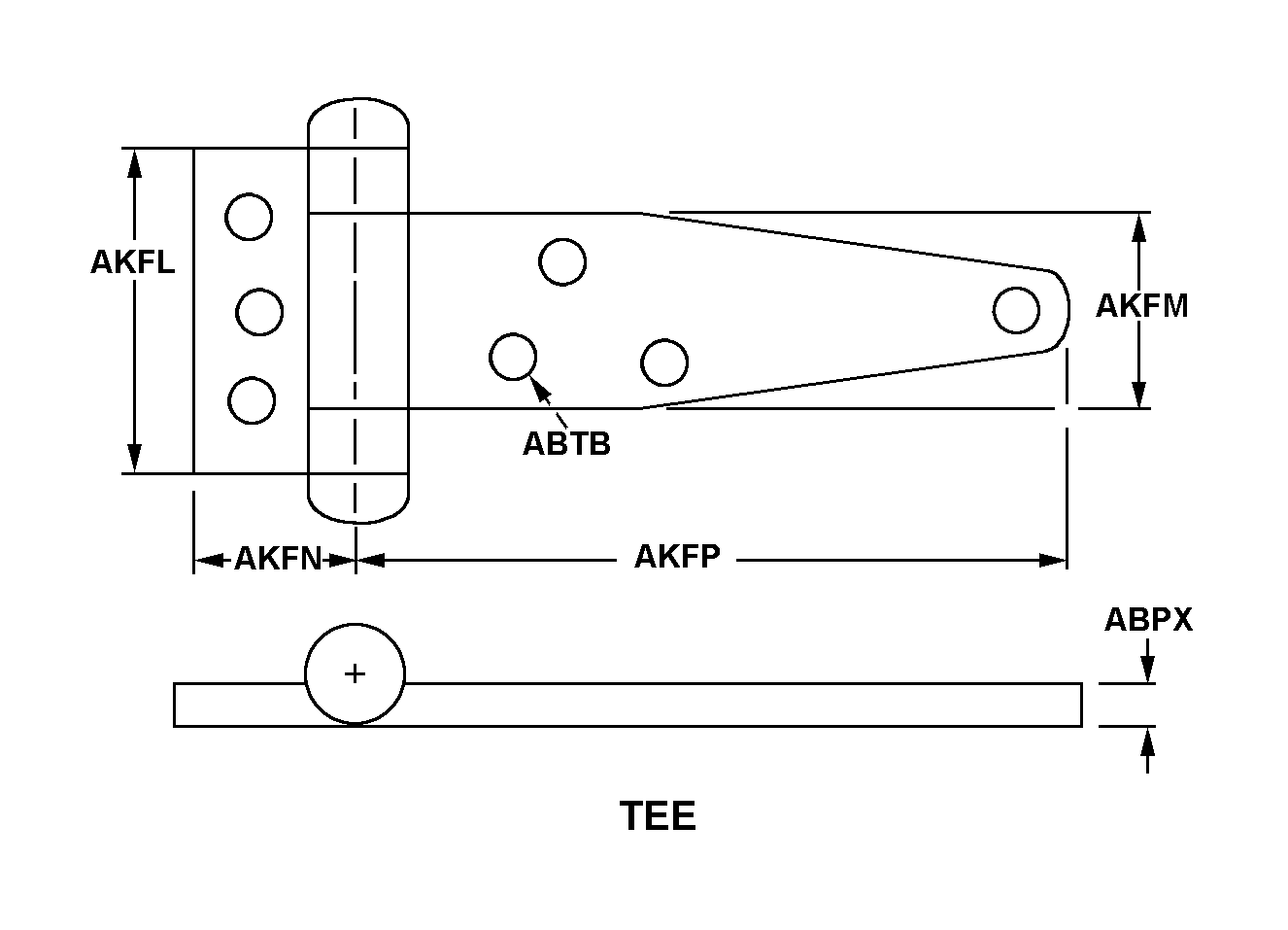

5340-00-240-2591 A hinge whose general shape is like the letter T, with one leaf resembling that of a butt hinge, and the other that of a strap hinge. The hinge may also have both leaves resembling strap hinges or butt hinges of different widths.

Part Alternates: A82221, C928S, SC928, 5340-00-240-2591, 00-240-2591, 5340002402591, 002402591

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-240-2591	06916 ( HINGE, TEE )

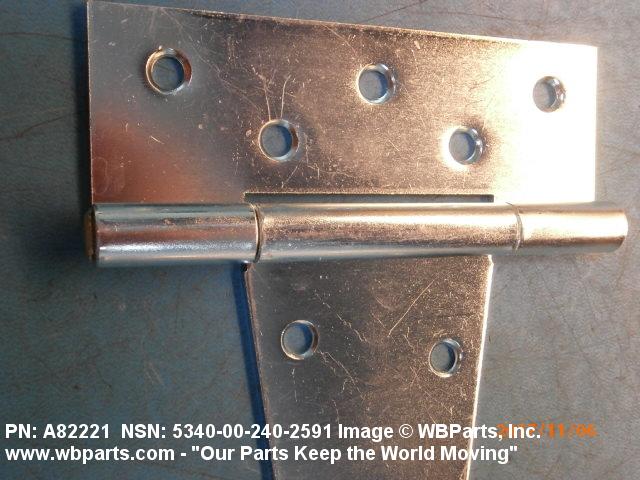

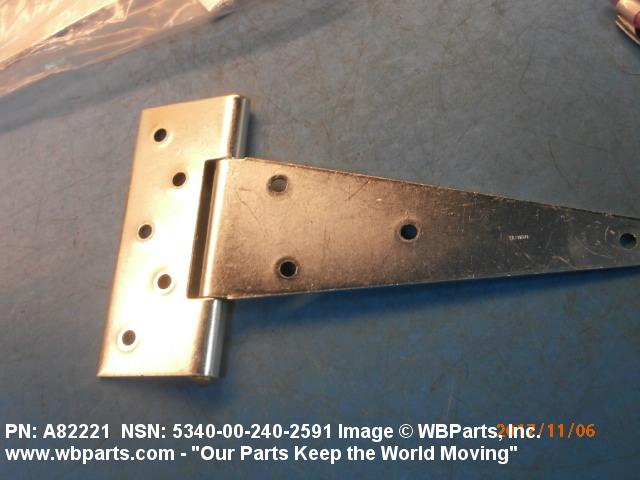

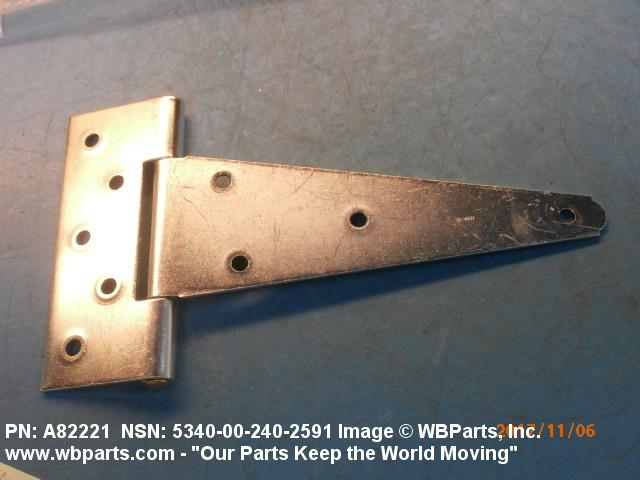

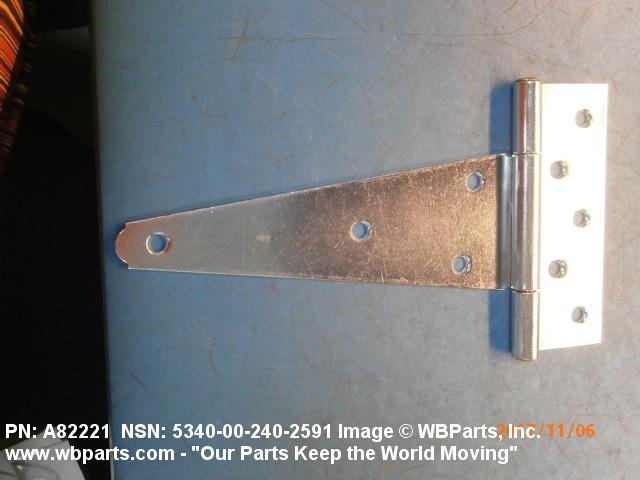

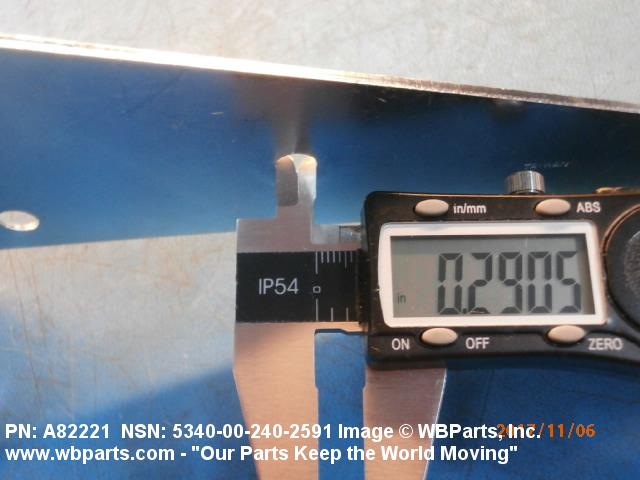

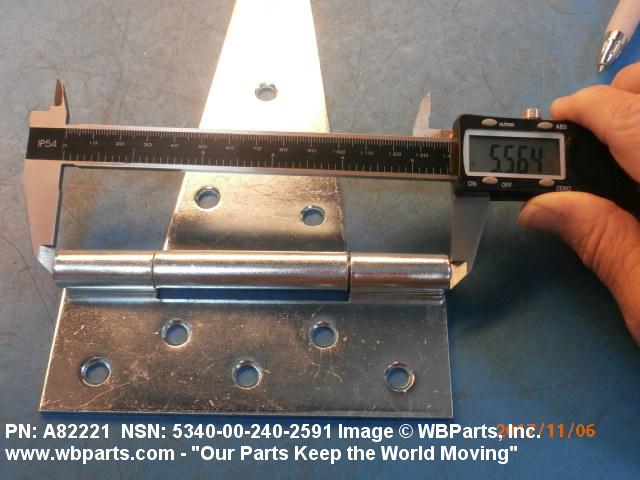

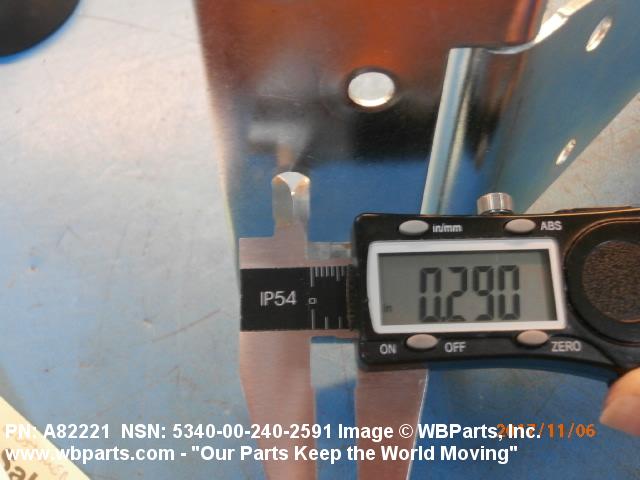

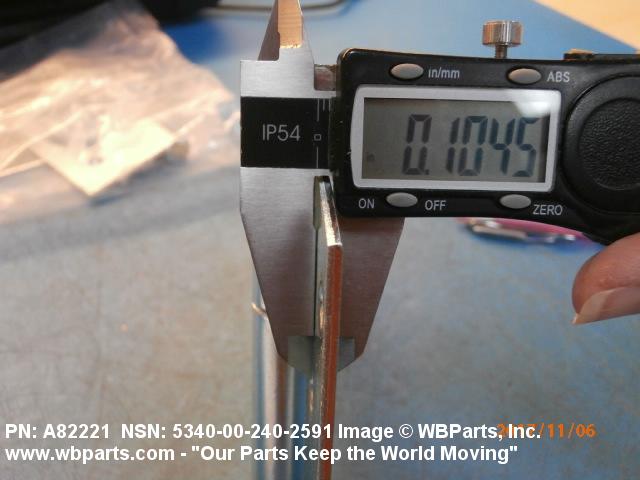

Drawings & Photos | NSN 5340-00-240-2591

Part Number	Request Date	QTY	Origin
A82221	2023-03-60	15	US
5340-00-240-2591	2021-08-216	120	US
5340-00-240-2591	2019-12-336	600	DIBBS
5340-00-240-2591	2018-11-332	748	DIBBS
5340-00-240-2591	2018-11-308	835	DIBBS
5340-00-240-2591	2018-08-214	1169	DIBBS
5340-00-240-2591	2018-05-130	490	DIBBS
5340-00-240-2591	2018-05-122	490	DIBBS
5340-00-240-2591	2017-12-347	454	US
5340-00-240-2591	2017-12-344	800	DIBBS
5340-00-240-2591	2017-11-333	455	DIBBS
5340-00-240-2591	2017-10-304	96	us
5340-00-240-2591	2017-09-270	96	us
5340-00-240-2591	2017-07-204	118	DIBBS
5340-00-240-2591	2016-08-224	405	DIBBS
5340-00-240-2591	2016-07-213	405	DIBBS
5340-00-240-2591	2016-02-34	376	DIBBS

Cross Reference | NSN 5340-00-240-2591

Part Number	Cage Code	Manufacturer
A82221	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
C928S	87233	LAWRENCE BROS INC
SC928	87233	LAWRENCE BROS INC
