NSN 5340-00-163-2639 03001130, 030-01130, 50032M15ZB
Product Details | BAIL HANDLE
5340-00-163-2639 An item, usually basically semicircular or rectangular, designed to be swivel mounted to another item such as a container, chest, drawer, or door to provide facilities for lifting, opening, pulling, and the like. It may be with or without a mounting plate. Excludes HANDLE, DOOR.
Part Alternates: 03001130, 030-01130, 50032M15ZB, 500-32-M15-ZB, 5222, 5340-00-163-2639, 00-163-2639, 5340001632639, 001632639
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 NOV 1971 | 00-163-2639 | 20353 ( HANDLE, BAIL ) |
Drawings & Photos | NSN 5340-00-163-2639
Demand History | NSN 5340-00-163-2639
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 50032M15ZB | 2021-07-207 | 40 | United States |
| 50032M15ZB | 2019-01-29 | 160 | US |
| 5340-00-163-2639 | 2015-04-120 | 8 | US |
| 5222 | 2009-01-09 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-163-2639
Related Products | NSN 5340-00-163-2639
Technical Data | NSN 5340-00-163-2639
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-698,TEMPER 4,FINISH 2 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 1 FED SPEC ALL TREATMENT RESPONSES OVERALL |

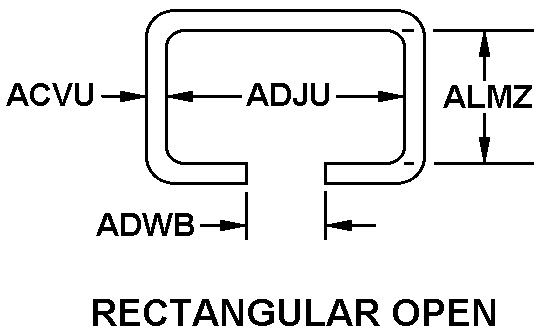

| STYLE DESIGNATOR | A2 RECTANGULAR OPEN |
| INSIDE LENGTH | 4.375 INCHES MINIMUM AND 4.437 INCHES MAXIMUM |
| HANDLE CLEARANCE | 2.125 INCHES NOMINAL |
| MOUNTING METHOD | MOUNTING PLATE |

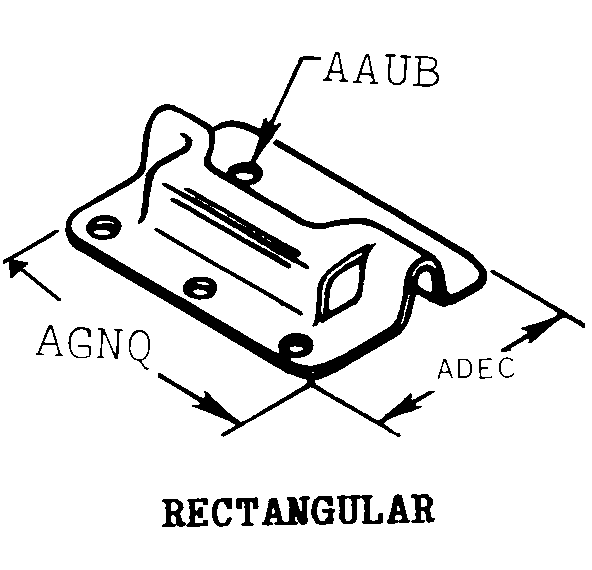

| MOUNTING PLATE STYLE | R5 RECTANGULAR |
| HOLE DIAMETER | 0.189 INCHES NOMINAL |
| PLATE WIDTH | 1.015 INCHES NOMINAL |
| MANUFACTURERS CODE | 77893 |
| DESIGN CONTROL REFERENCE | 500-32-M15-ZB |
