NSN 5340-00-163-2995 1509086-12, 00-163-2995, 150908612
Product Details | RETAINING STRAP
5340-00-163-2995 A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING.
Part Alternates: 1509086-12, 5340-00-163-2995, 00-163-2995, 5340001632995, 150908612, 001632995
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 NOV 1971 | 00-163-2995 | 05072 ( STRAP, RETAINING ) |
Drawings & Photos | NSN 5340-00-163-2995
Demand History | NSN 5340-00-163-2995
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 150908612 | 2010-06-175 | 10 | United States |
Cross Reference | NSN 5340-00-163-2995
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1509086-12 | 71379 | CESSNA AIRCRAFT COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-163-2995
Technical Data | NSN 5340-00-163-2995
| Characteristic | Specifications |
|---|---|

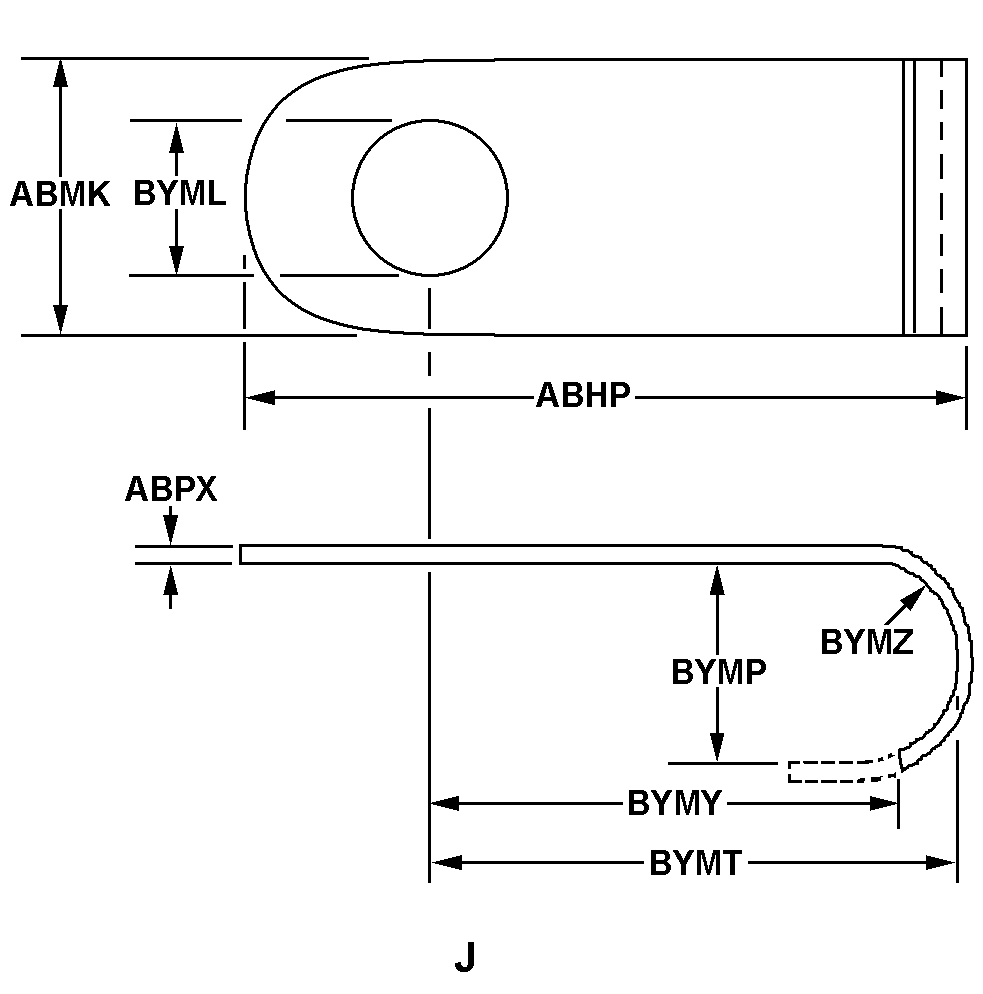

| STYLE DESIGNATOR | A22 J |
| OVERALL LENGTH | 2.200 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| MOUNTING HOLE SIZE | 0.193 INCHES NOMINAL |
| CUSHION | NOT INCLUDED |
| MOUNTING PAD | NOT INCLUDED |
| SPECIAL FEATURES | CONTAINS 2 MOUNTING HOLES,1.200 IN. BETWEEN HOLE CENTERS |
| MANUFACTURERS CODE | 71379 |
| DESIGN CONTROL REFERENCE | 1509086-12 |
Restrictions/Controls & Freight Information | NSN 5340-00-163-2995
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
