NSN 5340-00-158-3805 MS3564710, MS35647-10, A5200GLN

Product Details | PADLOCK

5340-00-158-3805 A detachable portable fastening device, having a shackle or bow adapted to be opened for engagement through a staple or the link of a chain. The bow or shackle, when locked, is secured in the case by means of a spring-activated pin(s) entering a notch(es) in the shackle. The lock may be opened by inserting and turning a key or keys, by key insertion only, or by a predetermined setting on the dial of a combination lock. For two or more padlocks which are keyed alike and/or master keyed, see PADLOCK SET.

Part Alternates: MS3564710, MS35647-10, A5200GLN, AA59487, A-A-59487, AA594872S, AA59487-2S, MILP17802, MIL-P-17802 GR2CL1STATYA, MILP17802GR2CL1STATYA, 00037325000149, 00037325000156, 00037325090577, 00037325951281, 1619180, 5200, 5200 GL, 5200GL, 5200GLN, 5340-00-158-3805, 00-158-3805, 5340001583805, 001583805

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	26 MAR 1971	00-158-3805	07678 ( PADLOCK )

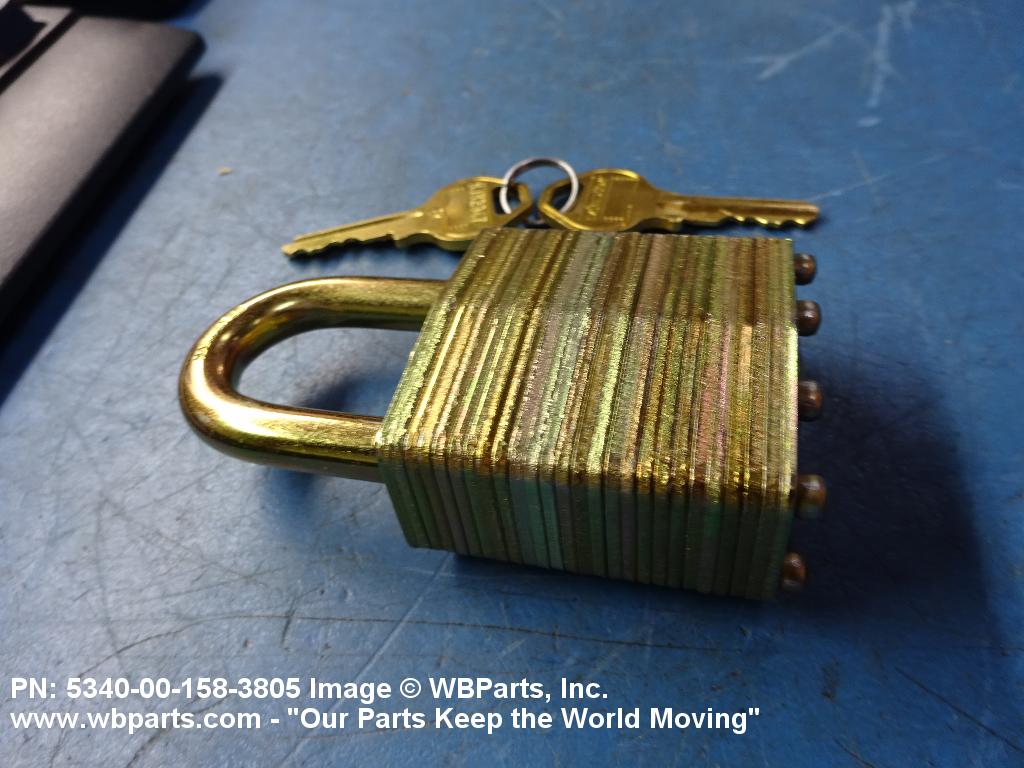

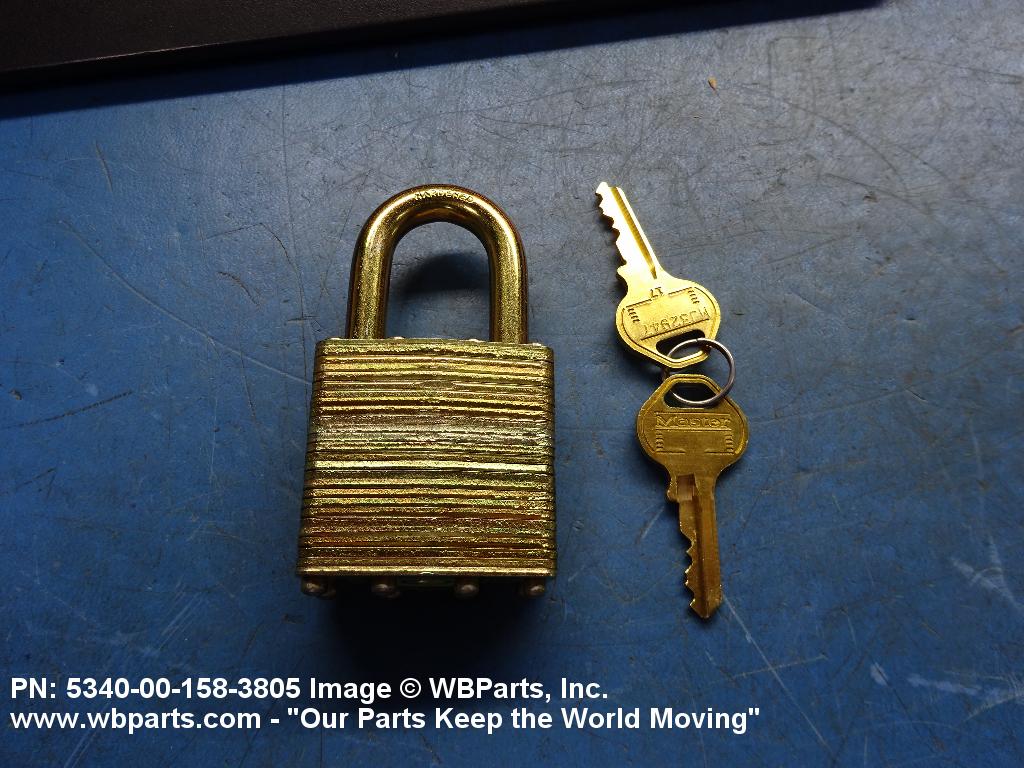

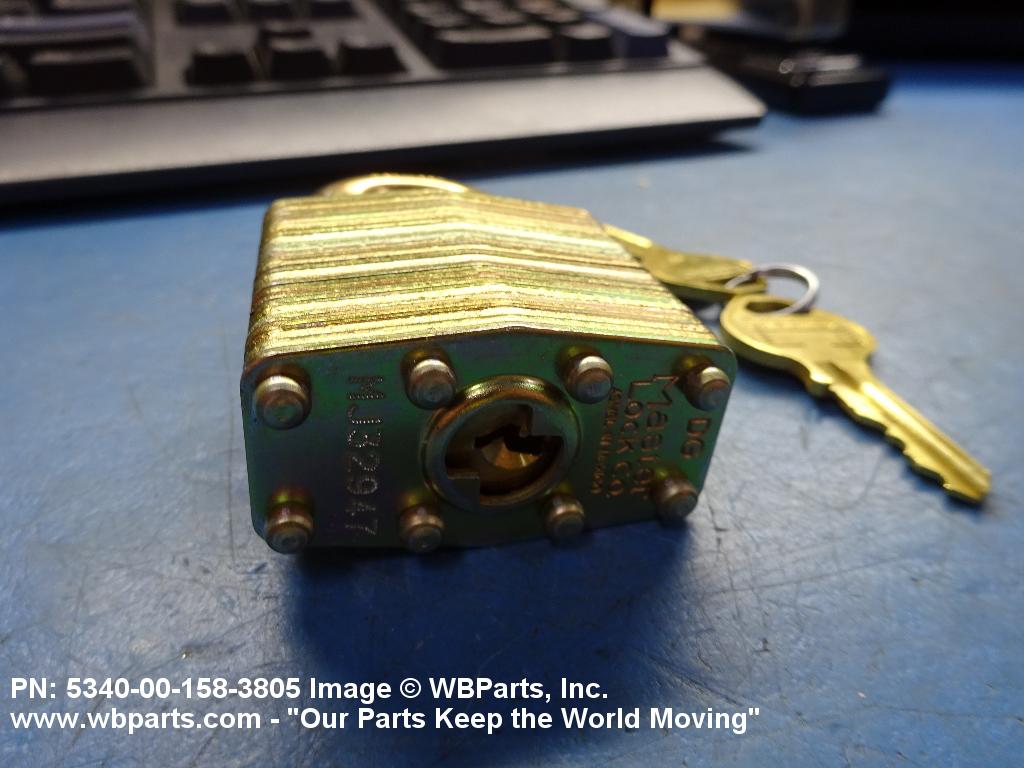

Drawings & Photos | NSN 5340-00-158-3805

Part Number	Request Date	QTY	Origin
5340-00-158-3805	2023-07-191	400	US
5340-00-158-3805	2023-02-46	25	MANUAL
5340-00-158-3805	2023-02-46	150	MANUAL
5340-00-158-3805	2022-10-277	50	United States
5340-00-158-3805	2022-08-229	800	US
5340-00-158-3805	2022-08-217	2	US
5340-00-158-3805	2021-03-83	1	US
5340-00-158-3805	2020-12-365	5	United States
MS35647-10	2020-12-365	1	United States
5200	2020-09-266	2	BH
5340-00-158-3805	2019-01-08	12	US
5340-00-158-3805	2018-10-296	12	US
5340-00-158-3805	2017-01-23	600	MANUAL
5340-00-158-3805	2015-08-243	20	US
5340-00-158-3805	2015-06-161	27	DIBBS
5340-00-158-3805	2015-05-127	30	DIBBS
5340-00-158-3805	2014-05-133	3	DIBBS
5340-00-158-3805	2013-05-139	40	DIBBS
5340-00-158-3805	2013-05-125	100	DIBBS
5340-00-158-3805	2013-02-45	31	DIBBS
5340-00-158-3805	2013-02-45	32	DIBBS
5200GLN	2013-02-43	3	United States
5340-00-158-3805	2013-02-43	3	MANUAL
5340-00-158-3805	2012-12-356	2	United States
5340-00-158-3805	2012-12-345	2	United States
5340-00-158-3805	2012-08-227	13	DIBBS
5340-00-158-3805	2011-09-258	1	US
5340-00-158-3805	2011-05-151	100	DIBBS
5340-00-158-3805	2011-03-74	20	DIBBS
5340-00-158-3805	2011-03-74	750	DIBBS

Cross Reference | NSN 5340-00-158-3805

Part Number	Cage Code	Manufacturer
00037325000149	22107	AMERICAN LOCK COMPANY DBA AMERICAN LOCK
00037325000156	22107	AMERICAN LOCK COMPANY DBA AMERICAN LOCK
00037325090577	22107	AMERICAN LOCK COMPANY DBA AMERICAN LOCK
00037325951281	22107	AMERICAN LOCK COMPANY DBA AMERICAN LOCK
1619180	45152	OSHKOSH CORPORATION
1619180	75Q65	OSHKOSH DEFENSE, LLC
5200	22107	AMERICAN LOCK COMPANY DBA AMERICAN LOCK
5200 GL	22107	AMERICAN LOCK COMPANY DBA AMERICAN LOCK
5200GLN	22107	AMERICAN LOCK COMPANY DBA AMERICAN LOCK
5340-00-158-3805	38797	MASTER LOCK COMPANY LLC DBA MASTER LOCK
A-A-59487	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
A5200GLN	22107	AMERICAN LOCK COMPANY DBA AMERICAN LOCK
AA59487-2S	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
MIL-P-17802 GR2CL1STATYA	80244	GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE
MILP17802	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS35647-10	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-158-3805

Compare

Related Products | NSN 5340-00-158-3805

5340-00-158-3807, 5340-00-158-3815, 5340-00-158-3816, 5340-00-158-3821, 5340-00-158-3825

Technical Data | NSN 5340-00-158-3805

Characteristic	Specifications
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CHROMIUM OR ZINC OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM B633 ASSN STD SINGLE TREATMENT RESPONSE OR ASTM B177 ASSN STD SINGLE TREATMENT RESPONSE OVERALL

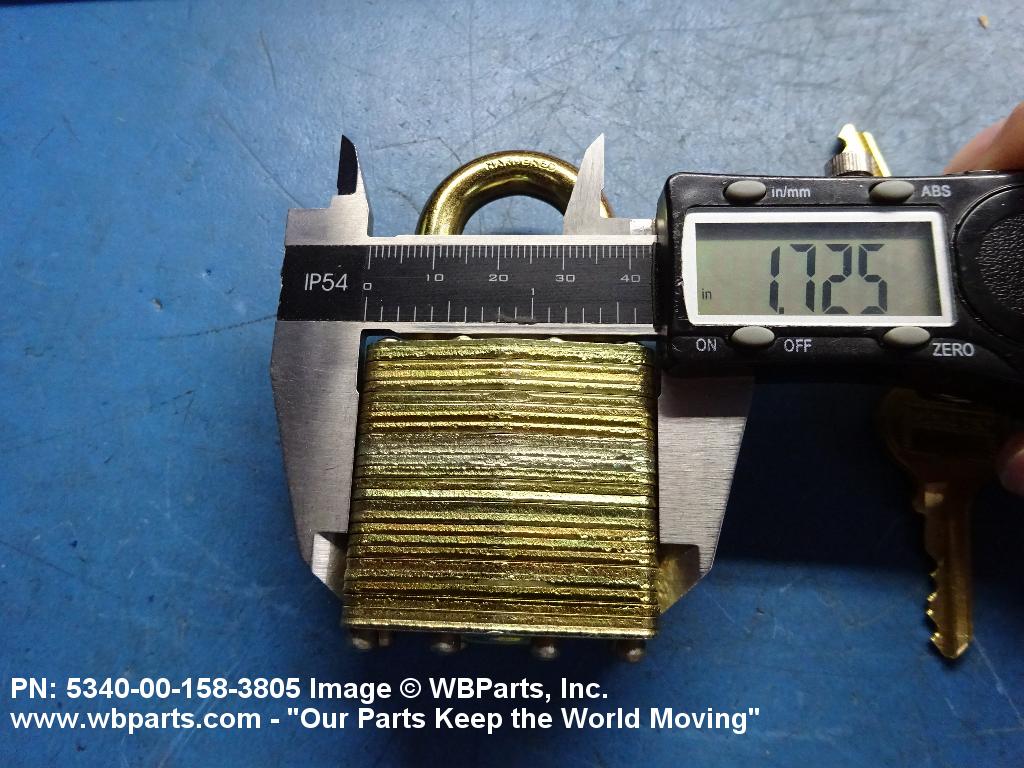

OVERALL WIDTH	1.750 INCHES NOMINAL

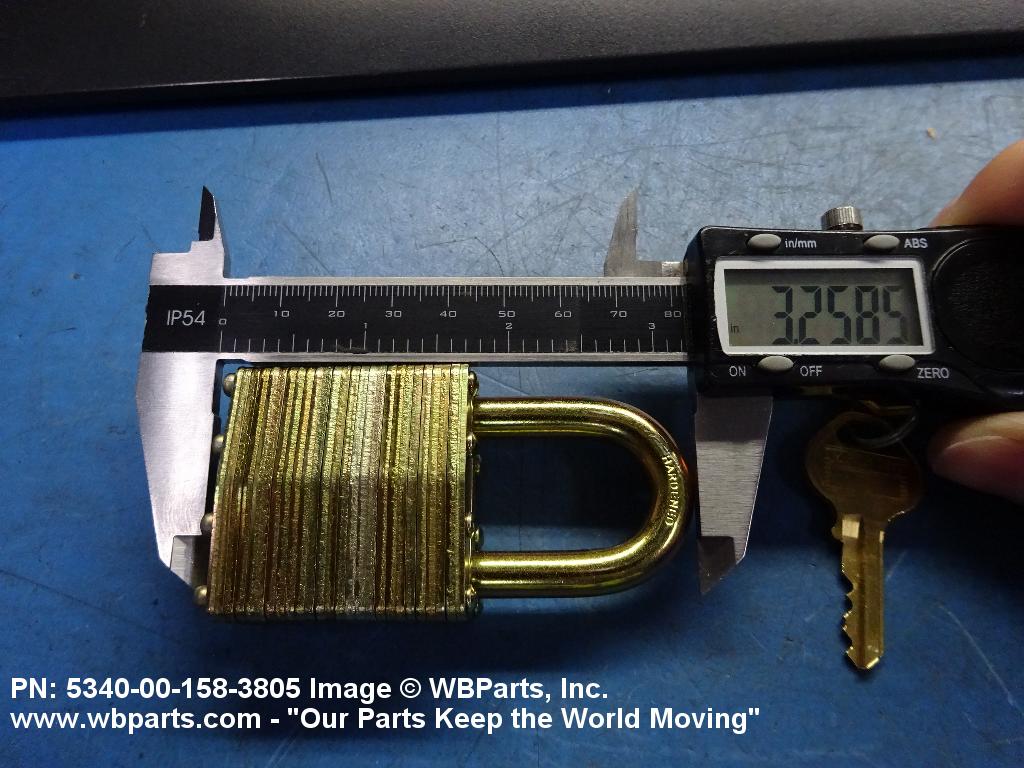

OVERALL HEIGHT	3.3750 INCHES NOMINAL

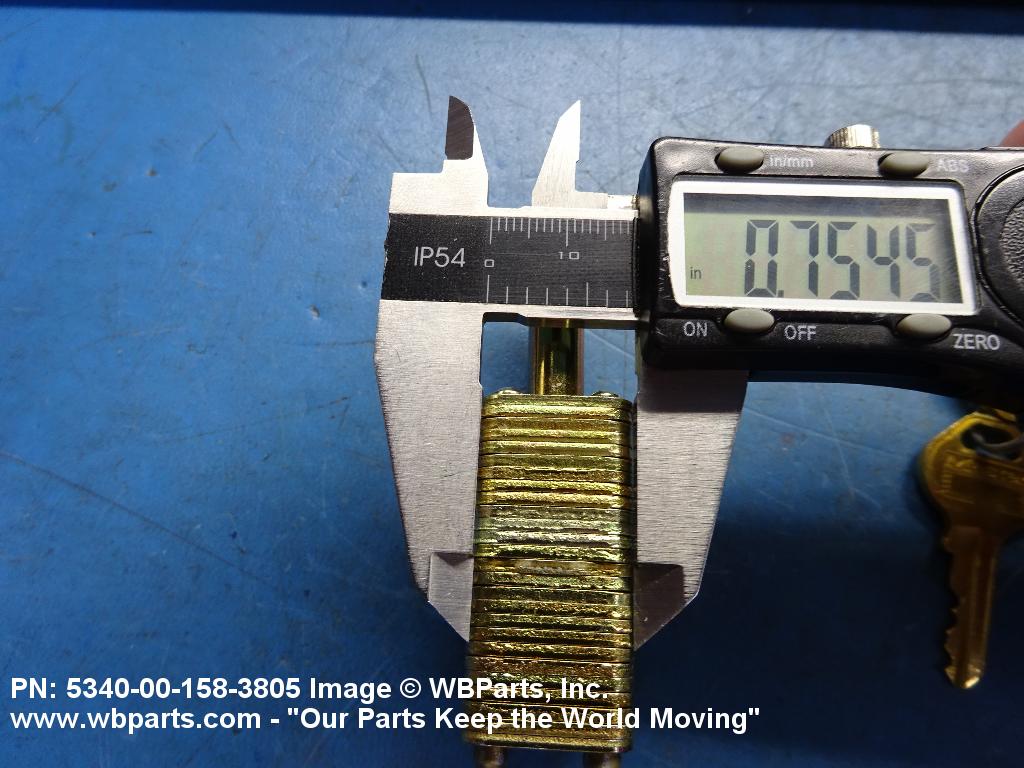

OVERALL THICKNESS	0.6880 INCHES NOMINAL
CONSTRUCTION	SOLID OR LAMINATED
OPERATING MECHANISM TYPE	PIN TUMBLER WITH DEAD BOLT LOCKING CONSTRUCTION
KEY CHANGE QUANTITY	10000
COMBINATION QUANTITY	100000
SPECIAL FEATURES	WITH 2 KEYS PER LOCK WITH KEY RETAINING FEATURE; NO CHAIN
NONDEFINITIVE SPEC/STD DATA	A TYPE AND A STYLE AND 1 CLASS AND 2 GRADE
MANUFACTURERS CODE	58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A-A-59487
MANUFACTURERS CODE	58536
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AA59487-2S

Restrictions/Controls & Freight Information | NSN 5340-00-158-3805

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	J	PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J./
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095760	LOCKS/LOCK SETS NOI METAL IN BBL/BX
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-00-158-3805

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	J	PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J.
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	J	PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J.
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	0	Non-combat Essential End Item. End items that do not fit the definition of Code 1 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	J	PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J.
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	J	PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J.
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
