Product Details | THREADED ROD END
5340-00-122-5612 A cylindrical item, tubular or solid on one end and internally or externally threaded on the other. It is designed to be permanently attached to the end of a tube or rod to provide a threaded connection for installing a threaded clevis, connector or the like.
Part Alternates: 175391, 5340-00-122-5612, 00-122-5612, 5340001225612, 001225612
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-122-5612 | 30474 ( ROD END, THREADED ) |
Drawings & Photos | NSN 5340-00-122-5612
Cross Reference | NSN 5340-00-122-5612
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 175391 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-122-5612
Technical Data | NSN 5340-00-122-5612
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6050 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.313 INCHES ROD CONNECTION |
| THREAD CLASS | 3A OVERALL |
| THREAD DIRECTION | RIGHT-HAND OVERALL |
| THREAD LENGTH | 0.600 INCHES NOMINAL ROD CONNECTION |

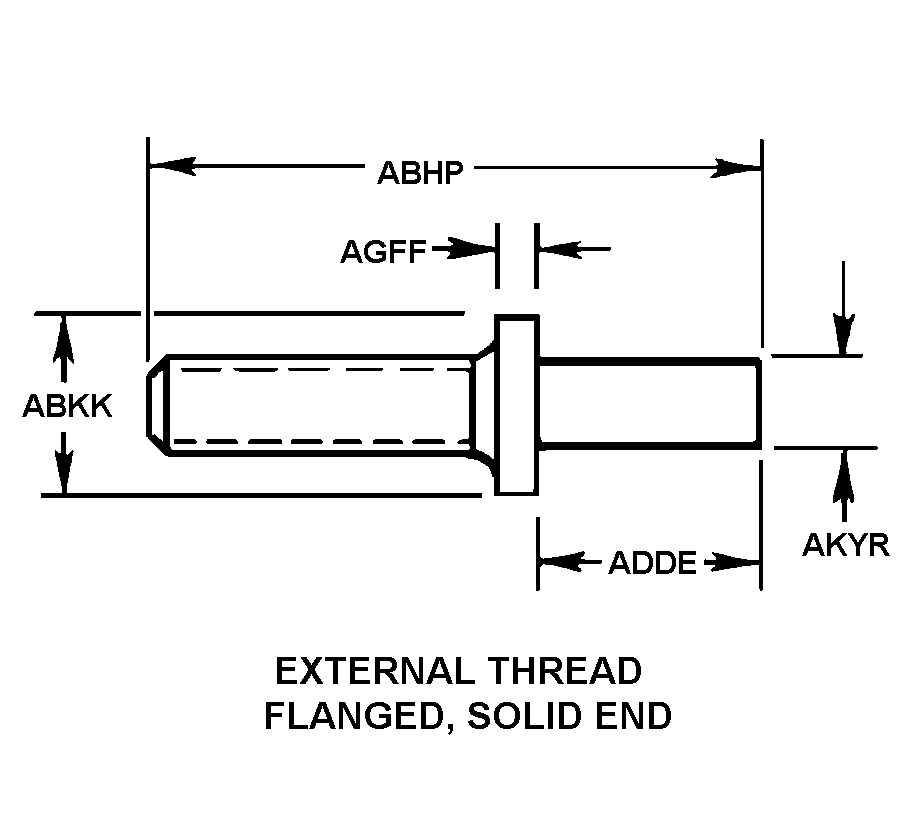

| STYLE DESIGNATOR | 100 EXTERNAL THREAD, FLANGED, SOLID END |
