NSN 5340-00-098-5157 A5935051, A5935-051, A5935051249
Product Details | LINE SUPPORTING STRAP
5340-00-098-5157 A flexible strap, furnished with a buckle, specificifically designed to support other items, such as cable(s), wire(s), tube(s), and the like. The buckle may be permanently assembled and may be provided with a mounting feature. The strap may be used to bridge a channel by mounting the buckle and strap separately. Excludes CLAMP, LOOP; STRAP, RETAINING; STRAP, LEATHER; and STRAP, WEBBING.20253400020Hardware, Commercial59750032Electrical Hardware and Supplies
Part Alternates: A5935051, A5935-051, A5935051249, A5935-051-249, 5340-00-098-5157, 00-098-5157, 5340000985157, 000985157
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-098-5157 | 22129 ( STRAP, LINE SUPPORTING ) |
Drawings & Photos | NSN 5340-00-098-5157
Demand History | NSN 5340-00-098-5157
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-098-5157 | 2022-10-279 | 45 | Malaysia |
| 5340-00-098-5157 | 2021-01-26 | 75 | DIBBS |
| 5340-00-098-5157 | 2020-11-317 | 83 | DIBBS |
| 5340-00-098-5157 | 2020-10-289 | 24 | DIBBS |
| 5340-00-098-5157 | 2020-10-281 | 24 | DIBBS |
| 5340-00-098-5157 | 2020-07-191 | 30 | DIBBS |
| 5340-00-098-5157 | 2020-07-183 | 30 | DIBBS |
| 5340-00-098-5157 | 2020-04-99 | 47 | DIBBS |
| 5340-00-098-5157 | 2020-03-71 | 1 | DIBBS-RFPs |
| 5340-00-098-5157 | 2019-12-354 | 30 | DIBBS |
| 5340-00-098-5157 | 2019-12-346 | 30 | DIBBS |
| 5340-00-098-5157 | 2019-09-254 | 6 | DIBBS |
| 5340-00-098-5157 | 2019-04-93 | 7 | DIBBS |
| 5340-00-098-5157 | 2019-01-07 | 10 | DIBBS |
| 5340-00-098-5157 | 2019-01-02 | 3 | DIBBS |
| 5340-00-098-5157 | 2018-12-359 | 3 | DIBBS |
| 5340-00-098-5157 | 2018-03-74 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-098-5157
Related Products | NSN 5340-00-098-5157
Technical Data | NSN 5340-00-098-5157
| Characteristic | Specifications |
|---|---|
| STRAP MATERIAL | STEEL FSCM 78553 A20672 |
| BUCKLE MATERIAL | ALUMINUM FSCM 78553 ALCAD 2024-0 |

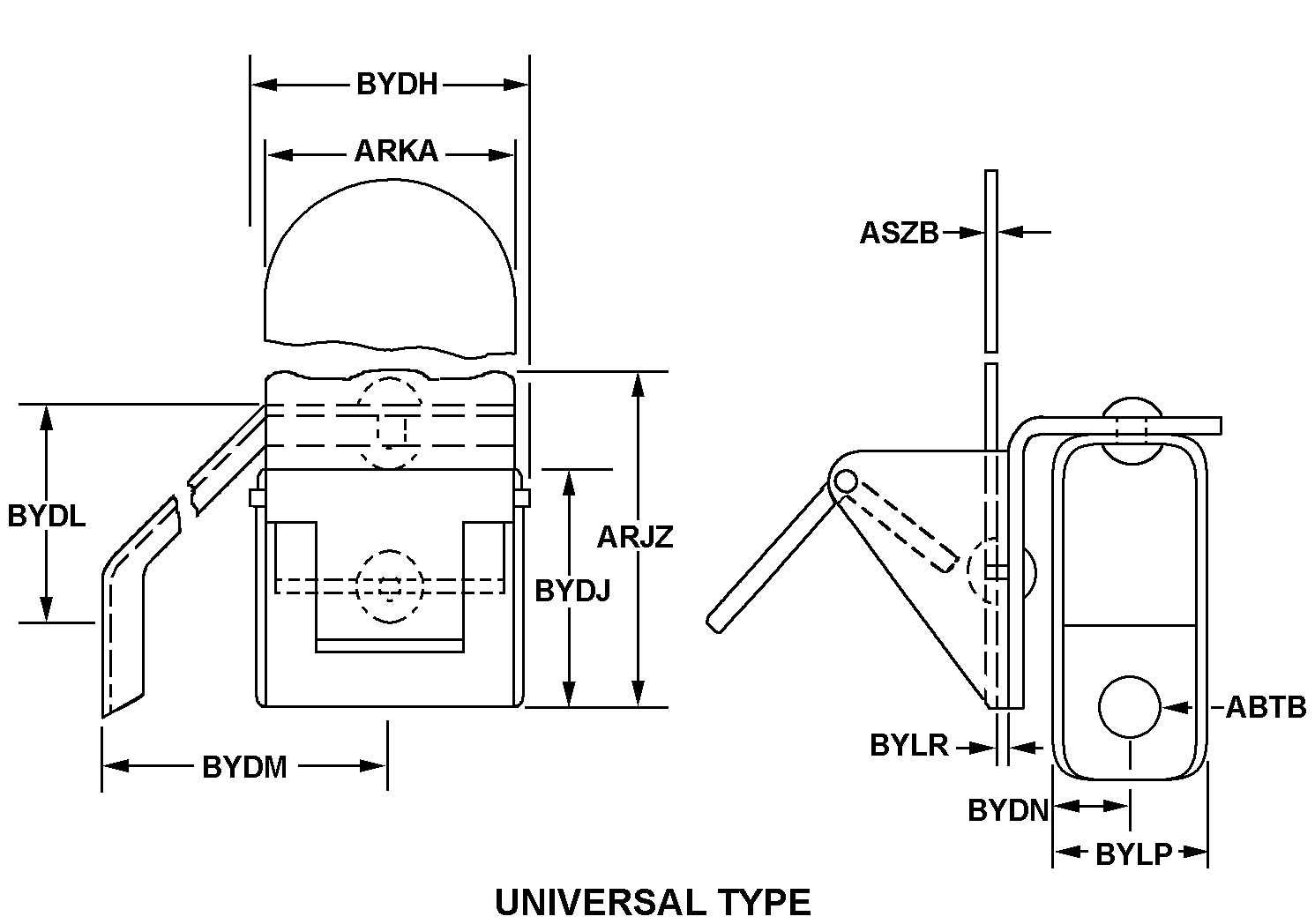

| STYLE DESIGNATOR | J5 UNIVERSAL TYPE |
| MOUNTING HOLE DIAMETER | 0.135 INCHES NOMINAL |
| STRAP LENGTH | ANY ACCEPTABLE |
| STRAP WIDTH | 2.000 INCHES NOMINAL |
| STRAP THICKNESS | 0.025 INCHES NOMINAL |
| BUCKLE OVERALL WIDTH | 3.000 INCHES NOMINAL |
| BUCKLE LENGTH | 1.500 INCHES NOMINAL |
| DISTANCE FROM MOUNTING HOLE CENTER TO SWIVEL BASE | 0.615 INCHES NOMINAL |
| DISTANCE FROM RIVET CENTER TO RIVET BASE | 1.500 INCHES NOMINAL |
| DISTANCE FROM MOUNTING HOLE CENTER TO LUG EDGE | ANY ACCEPTABLE |
| MOUNTING LUG WIDTH | 0.750 INCHES NOMINAL |
| BUCKLE MATERIAL THICKNESS | 0.032 INCHES NOMINAL |
| ANTIABRASION PAD | INCLUDED |
| REMOVABILITY FEATURE | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 5340-00-098-5157
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-098-5157
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
