Product Details | ROD END CLEVIS
5340-00-088-6945 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 3003123733, 300-312373-3, 5340-00-088-6945, 00-088-6945, 5340000886945, 000886945
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 DEC 1967 | 00-088-6945 | 03796 ( CLEVIS, ROD END ) |

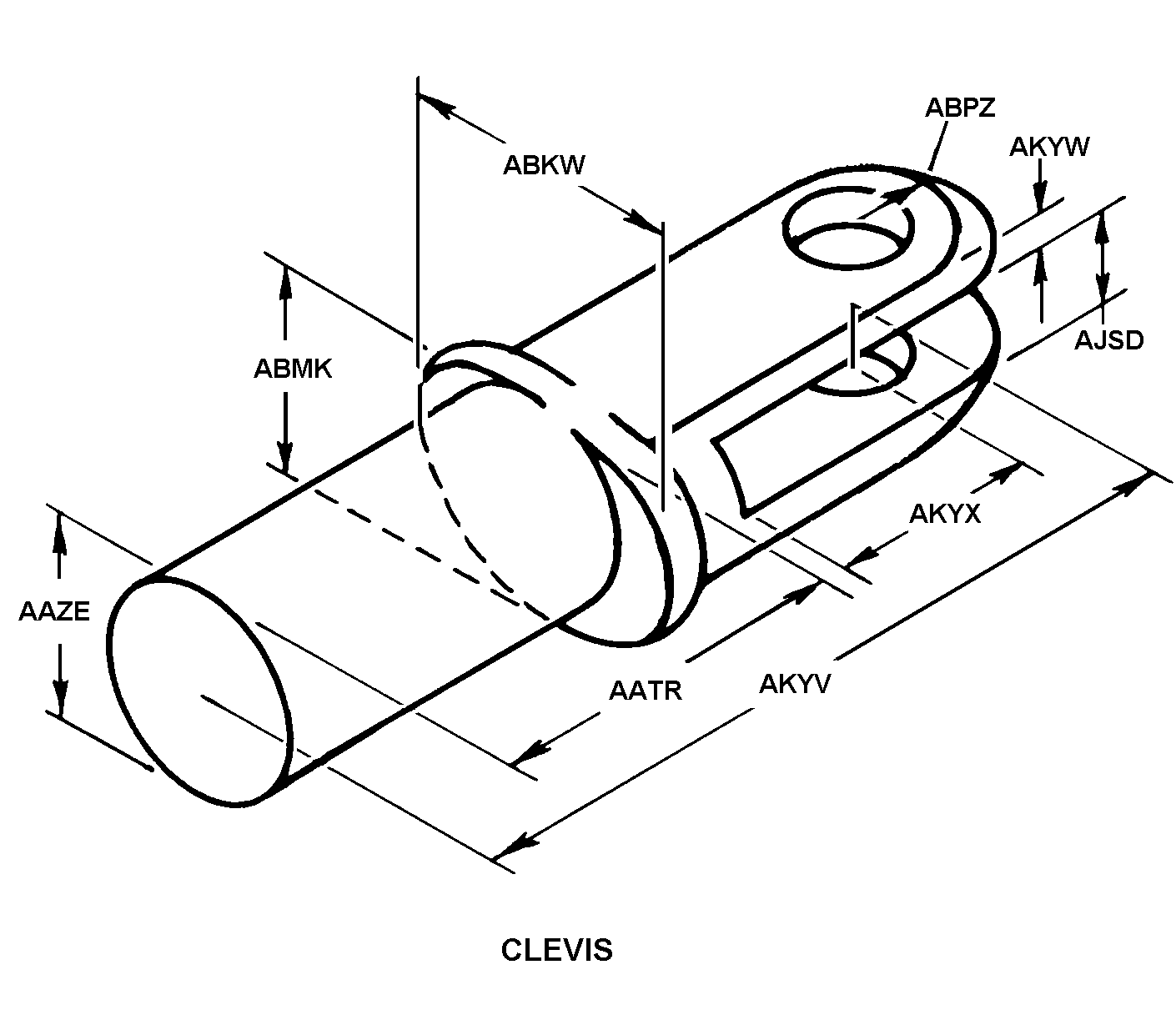

Drawings & Photos | NSN 5340-00-088-6945
Cross Reference | NSN 5340-00-088-6945
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 300-312373-3 | 89372 | ROCKWELL INTERNATIONAL CORP NORTH AMERICAN AIRCRAFT OPNS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-088-6945
Technical Data | NSN 5340-00-088-6945
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1025 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED STD 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 27 CLEVIS |
| SHANK LENGTH | 0.625 INCHES NOMINAL |
| SHANK DIAMETER | 0.428 INCHES MINIMUM AND 0.430 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.468 INCHES NOMINAL |
| OVERALL WIDTH | 0.438 INCHES NOMINAL |
| END RADIUS | 0.250 INCHES NOMINAL |
| FORK SPAN WIDTH | 0.266 INCHES NOMINAL |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 1.875 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.117 INCHES NOMINAL |
| FORK DEPTH | 1.240 INCHES MINIMUM AND 1.260 INCHES MAXIMUM |
| ROD CONNECTION BORE DIAMETER | 0.281 INCHES NOMINAL |
| ROD CONNECTION BORE DEPTH | 0.875 INCHES NOMINAL |
| HOLE DIAMETER | 0.250 INCHES NOMINAL |
| MANUFACTURERS CODE | 89372 |
| DESIGN CONTROL REFERENCE | 300-312373-3 |
