Product Details | BUTT HINGE

5340-00-088-6237 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.

Part Alternates: 284F, 5340-00-088-6237, 00-088-6237, 5340000886237, 000886237

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-088-6237

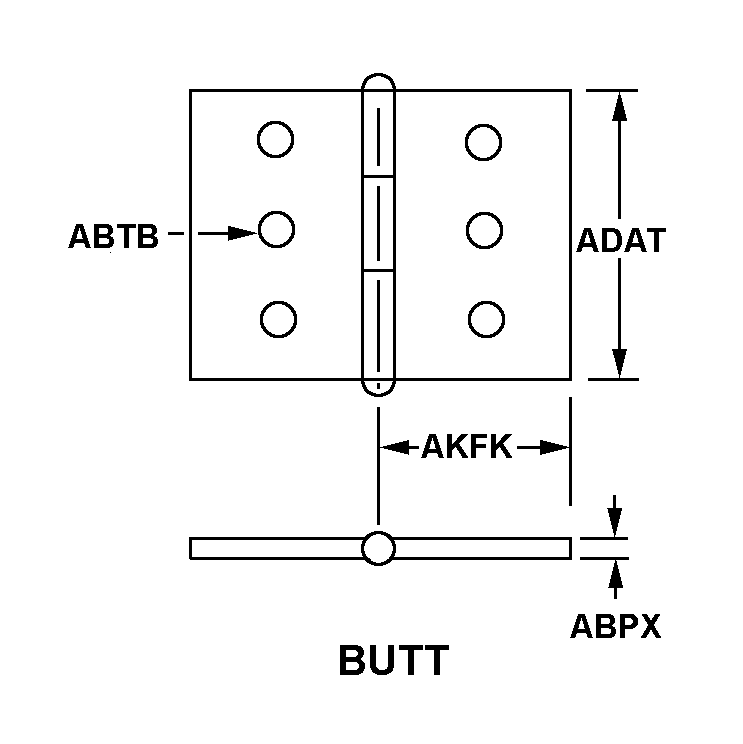

Drawings & Photos | NSN 5340-00-088-6237


Cross Reference | NSN 5340-00-088-6237

Part Number Cage Code Manufacturer
284F 57068 STANLEY WORKS THE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-088-6237

Technical Data | NSN 5340-00-088-6237

Characteristic Specifications
MATERIAL AND LOCATION STEEL OVERALL
SURFACE TREATMENT AND LOCATION DULL BRASS, FF-H-116, US4 OVERALL
STYLE DESIGNATOR 9 BUTT
MATERIAL THICKNESS 0.074 INCHES NOMINAL
MOUNTING HOLE DIAMETER 0.157 INCHES NOMINAL
BODY WIDTH 3.000 INCHES NOMINAL
PIN CENTER TO BODY EDGE DISTANCE 1.000 INCHES NOMINAL
PIN TIP STYLE 6 FLAT BUTTON
HINGE MOUNTING TYPE FULL MORTISE
REVERSIBLE FEATURE NOT INCLUDED
PIN REMOVABILITY NONREMOVABLE
KNUCKLE TYPE FRICTION
KNUCKLE QUANTITY 5
MOUNTING HOLE QUANTITY 6
PERFORMANCE TYPE LIGHT DUTY

Restrictions/Controls & Freight Information | NSN 5340-00-088-6237

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
