Product Details | ROD END CLEVIS
5340-00-084-3322 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 53115, 5311-5, 5340-00-084-3322, 00-084-3322, 5340000843322, 000843322
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-084-3322 | 03796 ( CLEVIS, ROD END ) |

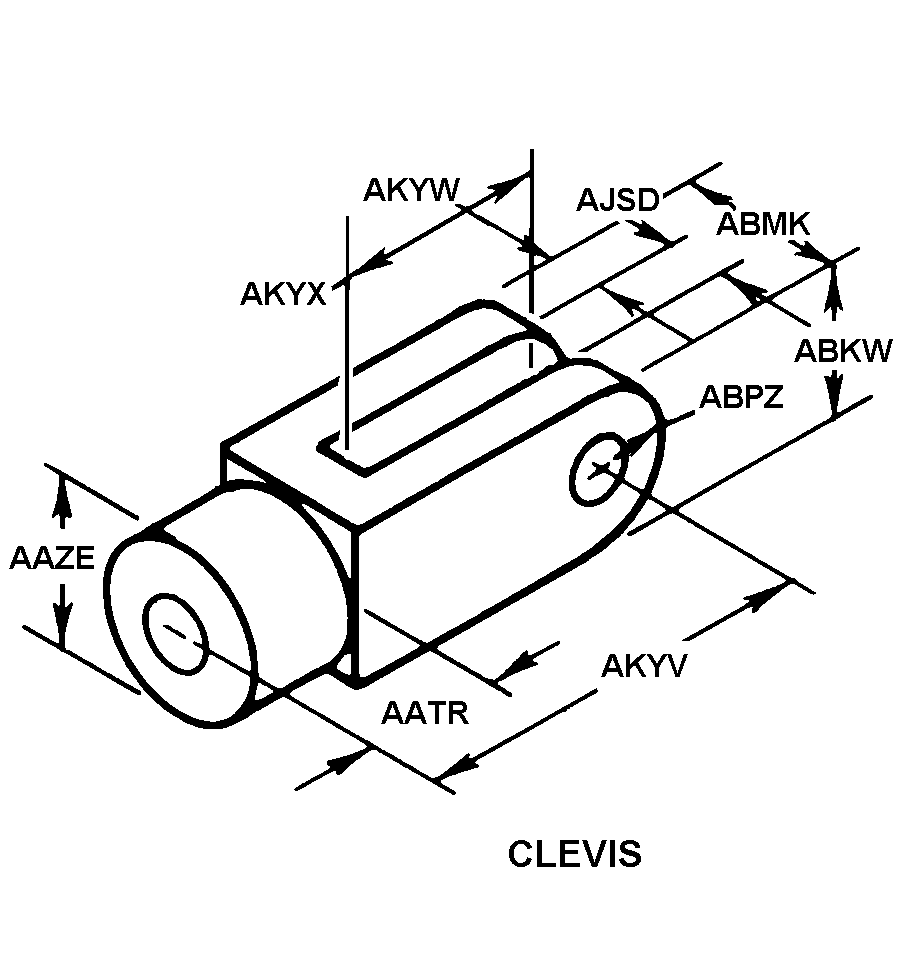

Drawings & Photos | NSN 5340-00-084-3322
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-084-3322
Technical Data | NSN 5340-00-084-3322
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000,COND D4 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UN ROD CONNECTION |
| NOMINAL THREAD SIZE | 1.000 INCHES ROD CONNECTION |
| THREAD QUANTITY PER INCH | 16 ROD END |
| THREAD CLASS | 3A ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 1.308 INCHES NOMINAL ROD CONNECTION |
| STYLE DESIGNATOR | 8 CLEVIS |
| SHANK LENGTH | 1.495 INCHES NOMINAL |
| SHANK DIAMETER | 1.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| END RADIUS | 0.750 INCHES NOMINAL |
| FORK SPAN WIDTH | 0.937 INCHES MINIMUM AND 0.942 INCHES MAXIMUM |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 3.093 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.282 INCHES NOMINAL |
| FORK DEPTH | 1.187 INCHES NOMINAL |
| HOLE DIAMETER | 0.750 INCHES MINIMUM AND 0.751 INCHES MAXIMUM |
| MANUFACTURERS CODE | 02121 |
| DESIGN CONTROL REFERENCE | 5311-5 |
