NSN 5340-00-069-4622 220-0413-00, 00-069-4622, 220041300
Product Details | SPACING THREADED STANDOFF
5340-00-069-4622 A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance.
Part Alternates: 220-0413-00, 5340-00-069-4622, 00-069-4622, 5340000694622, 220041300, 000694622
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 JUL 1967 | 00-069-4622 | 40280 ( STANDOFF, THREADED, SPACING ) |
Drawings & Photos | NSN 5340-00-069-4622
Cross Reference | NSN 5340-00-069-4622
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 220-0413-00 | 80009 | TEKTRONIX, INC. DBA TEKTRONIX |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-069-4622
Related Products | NSN 5340-00-069-4622
Technical Data | NSN 5340-00-069-4622
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE | HEXAGON |
| WIDTH ACROSS FLATS | 0.188 INCHES NOMINAL |

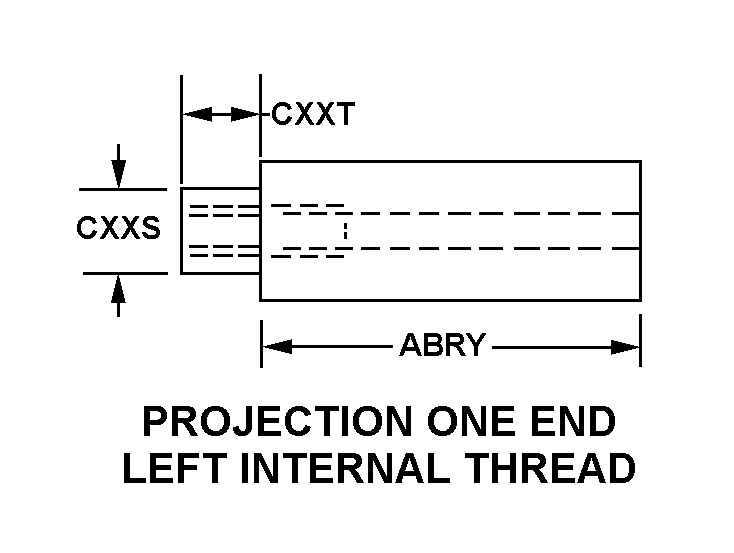

| STYLE DESIGNATOR | 18 PROJECTION ONE END LEFT INTERNAL THREAD |
| LENGTH | 0.125 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PROJECTION LENGTH | 0.437 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PROJECTION DIAMETER | 0.171 INCHES NOMINAL |
| (NON-CORE DATA) FIRST INTERNAL THREAD LENGTH | 0.250 INCHES MINIMUM |
| (NON-CORE DATA) FIRST INTERNAL THREAD CHARACTERISTICS | NO. 4/0.112 IN./-40 UNC 2B RH |
| (NON-CORE DATA) MATERIAL | BRASS, ASTM B16 |
| (NON-CORE DATA) SURFACE TREATMENT | CHROMATE |
| MANUFACTURERS CODE | 80009 |
| DESIGN CONTROL REFERENCE | 220-0413-00 |
Restrictions/Controls & Freight Information | NSN 5340-00-069-4622
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
