Product Details | SPACING THREADED STANDOFF
5340-00-031-0862 A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance.
Part Alternates: 3104537, 3104-537, 8067537, 8067-537, 910A, 947154-537, 5340-00-031-0862, 00-031-0862, 5340000310862, 000310862, 947154537
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 OCT 1972 | 00-031-0862 | 40280 ( STANDOFF, THREADED, SPACING ) |
Drawings & Photos | NSN 5340-00-031-0862
Cross Reference | NSN 5340-00-031-0862
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-031-0862
Technical Data | NSN 5340-00-031-0862
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE | HEXAGON |
| WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |

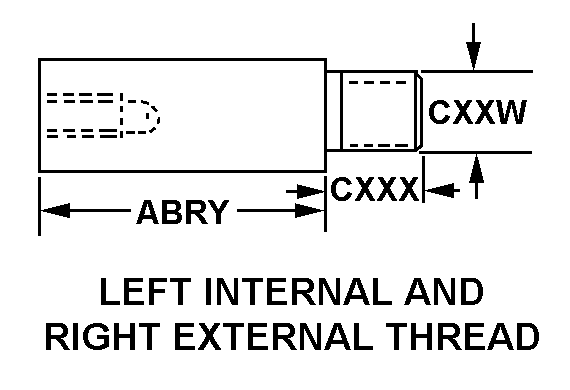

| STYLE DESIGNATOR | 6 LEFT INTERNAL AND RIGHT EXTERNAL THREAD |
| LENGTH | 1.060 INCHES NOMINAL |
| LEFT COUNTERBORE DEPTH | 0.094 INCHES NOMINAL |
| LEFT COUNTERBORE DIAMETER | 0.158 INCHES MINIMUM AND 0.162 INCHES MAXIMUM |
| (NON-CORE DATA) EXTERNAL THREAD LENGTH | 0.258 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PROJECTION LENGTH | 0.320 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PROJECTION DIAMETER | 0.138 INCHES NOMINAL |
| (NON-CORE DATA) FIRST INTERNAL THREAD LENGTH | 0.380 INCHES NOMINAL |
| (NON-CORE DATA) FIRST INTERNAL THREAD CHARACTERISTICS | 6-32 UNC 2B RH |
| (NON-CORE DATA) EXTERNAL THREAD CHARACTERISTICS | 6-32 UNC 2A RH |
| (NON-CORE DATA) MATERIAL | STEEL, FED STD 66, COMP 1020 |
| (NON-CORE DATA) SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 2, CLASS 3 |
| MANUFACTURERS CODE | 16258 |
| DESIGN CONTROL REFERENCE | 8067-537 |
