NSN 5340-00-028-4270 A16630281, A1663-028-1, 00-028-4270
Product Details | FRICTION CATCH STUD RECEPTACLE
5340-00-028-4270 An item of resilient metallic material, or an item of resilient nonmetallic material which may be rigidly encased, having provisions for mounting to a door, panel, or the like. It is designed to receive and retain, by compression of the resilient material, a STUD, FRICTION CATCH, yet permit easy withdrawal of the stud under normal pull. For items of rigid material which mate with the plunger, bolt, ball, or the like, of a CATCH, FRICTION, see STRIKE, CATCH.
Part Alternates: A16630281, A1663-028-1, 5340-00-028-4270, 00-028-4270, 5340000284270, 000284270
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-028-4270 | 18365 ( RECEPTACLE, FRICTION CATCH STUD ) |
Drawings & Photos | NSN 5340-00-028-4270
Demand History | NSN 5340-00-028-4270
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-028-4270 | 2022-07-186 | 5 | US |
| 5340-00-028-4270 | 2020-05-142 | 2 | US |
| 5340-00-028-4270 | 2019-07-206 | 1470 | DIBBS |
| 5340-00-028-4270 | 2019-07-198 | 1470 | DIBBS |
| A16630281 | 2016-04-116 | 2 | US |
| 5340-00-028-4270 | 2010-03-63 | 4880 | DIBBS |
| 5340-00-028-4270 | 2010-01-28 | 4880 | DIBBS |
| 5340-00-028-4270 | 2009-06-161 | 3496 | DIBBS |
| 5340-00-028-4270 | 2009-01-15 | 1537 | DIBBS |
Cross Reference | NSN 5340-00-028-4270
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A1663-028-1 | 78553 | TINNERMAN PALNUT ENGINEERED PRODUCTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-028-4270
Related Products | NSN 5340-00-028-4270
Technical Data | NSN 5340-00-028-4270
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |

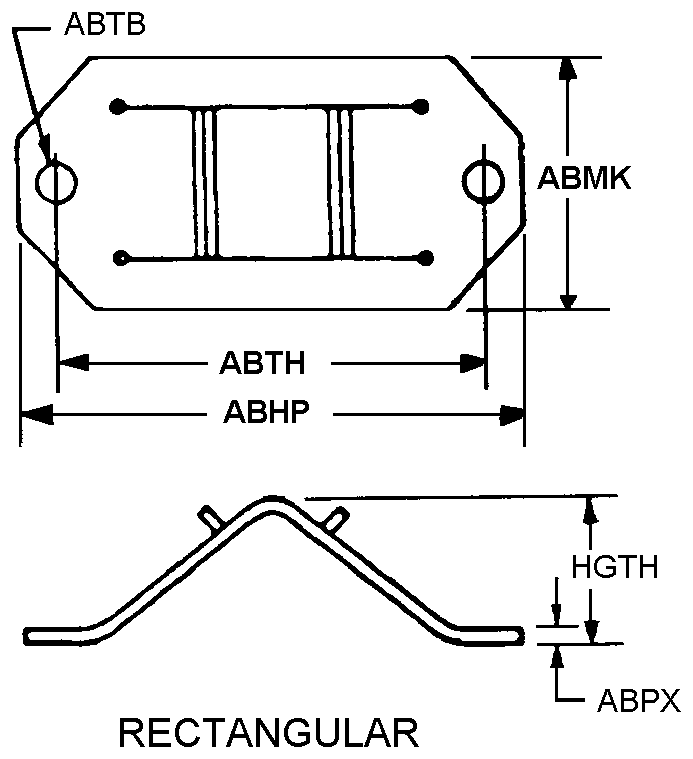

| STYLE DESIGNATOR | H3 RECTANGULAR |
| OVERALL LENGTH | 0.937 INCHES NOMINAL |
| OVERALL WIDTH | 0.437 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.028 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.687 INCHES NOMINAL |
| HEIGHT | 0.281 INCHES NOMINAL |
| MANUFACTURERS CODE | 78553 |
| DESIGN CONTROL REFERENCE | A1663-028-1 |
