NSN 5340-01-535-1098 A16630171, A1663-017-1, 01-535-1098
Product Details | FRICTION CATCH STUD RECEPTACLE
5340-01-535-1098 An item of resilient metallic material, or an item of resilient nonmetallic material which may be rigidly encased, having provisions for mounting to a door, panel, or the like. It is designed to receive and retain, by compression of the resilient material, a STUD, FRICTION CATCH, yet permit easy withdrawal of the stud under normal pull. For items of rigid material which mate with the plunger, bolt, ball, or the like, of a CATCH, FRICTION, see STRIKE, CATCH.
Part Alternates: A16630171, A1663-017-1, 5340-01-535-1098, 01-535-1098, 5340015351098, 015351098
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 NOV 2005 | 01-535-1098 | 18365 ( RECEPTACLE, FRICTION CATCH STUD ) |

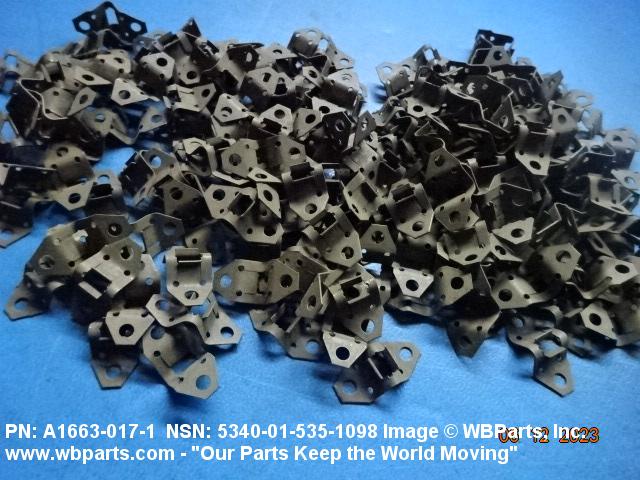

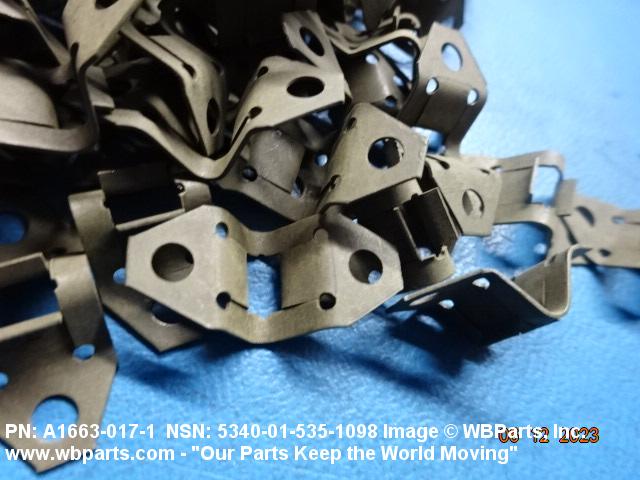

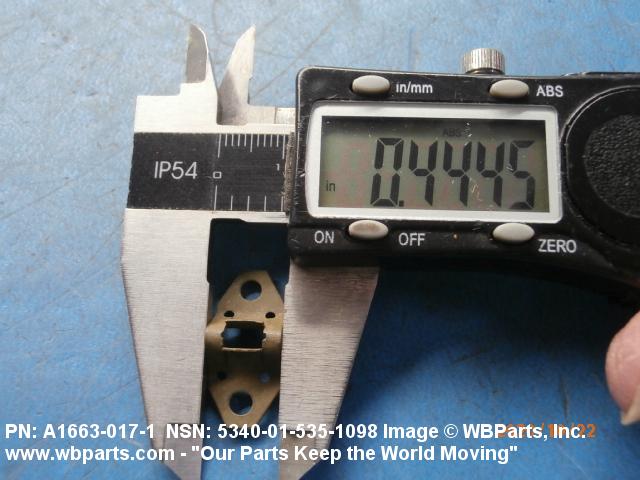

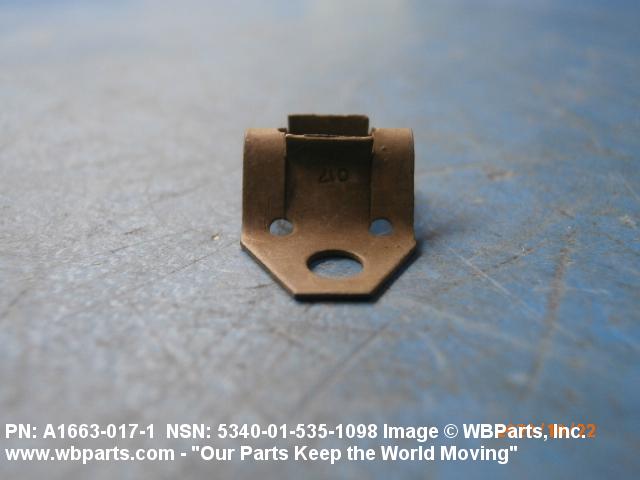

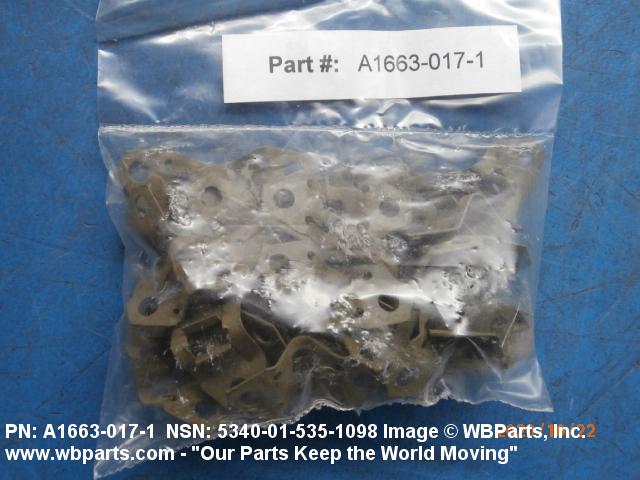

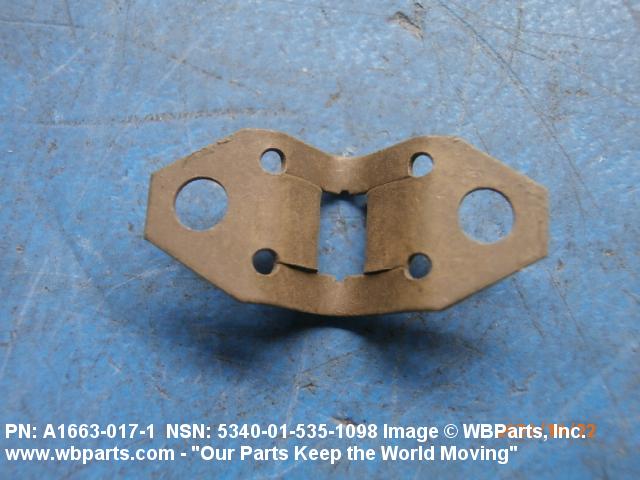

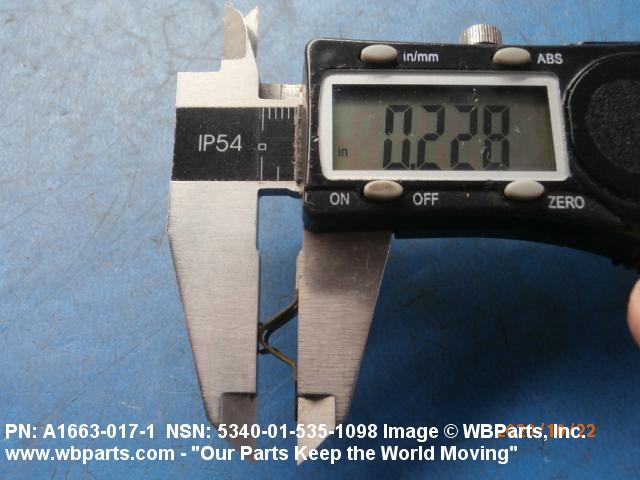

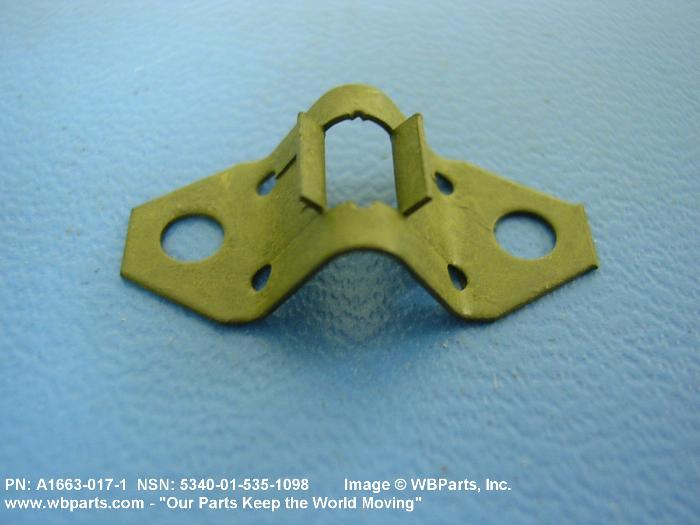

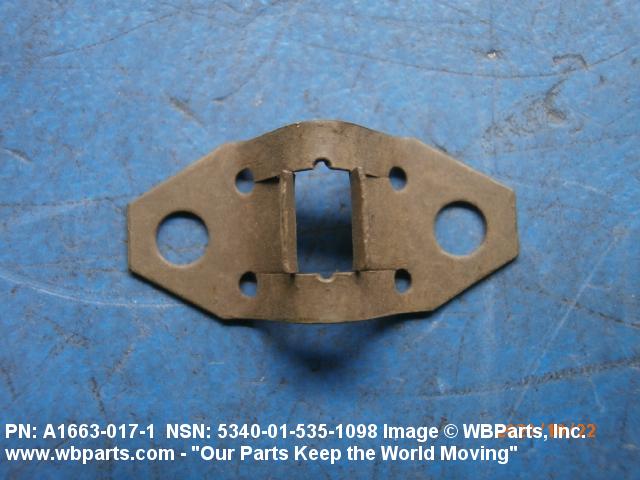

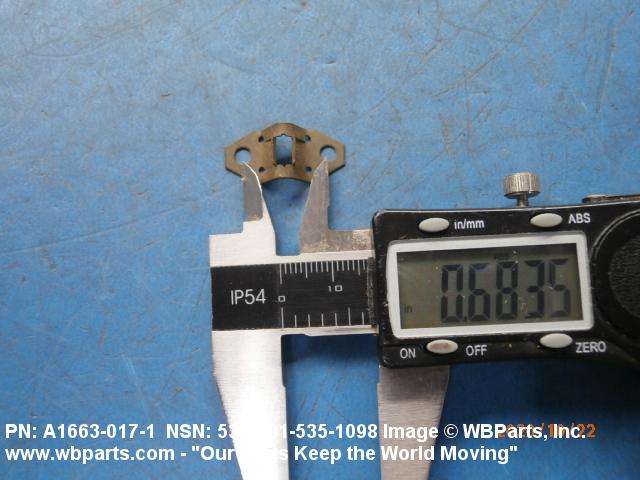

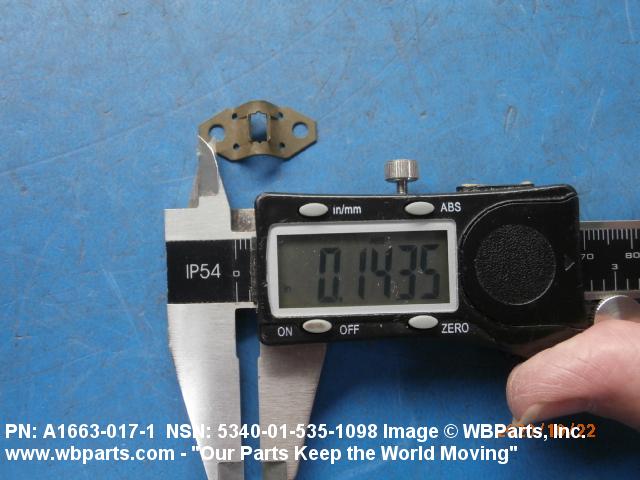

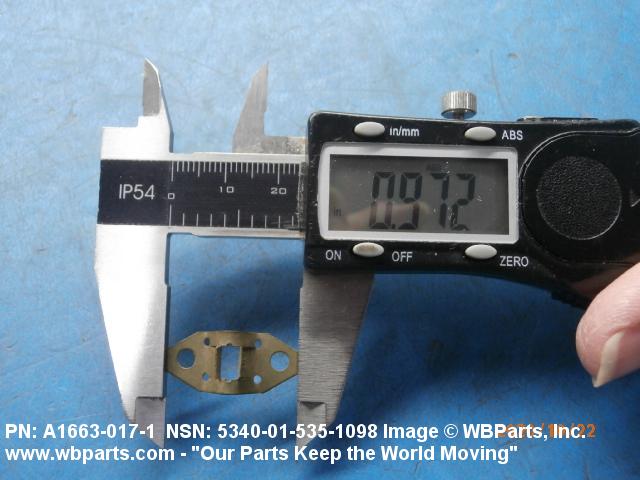

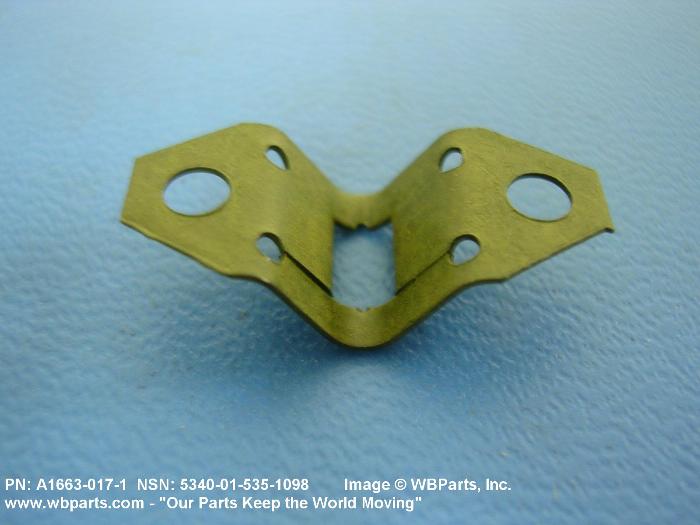

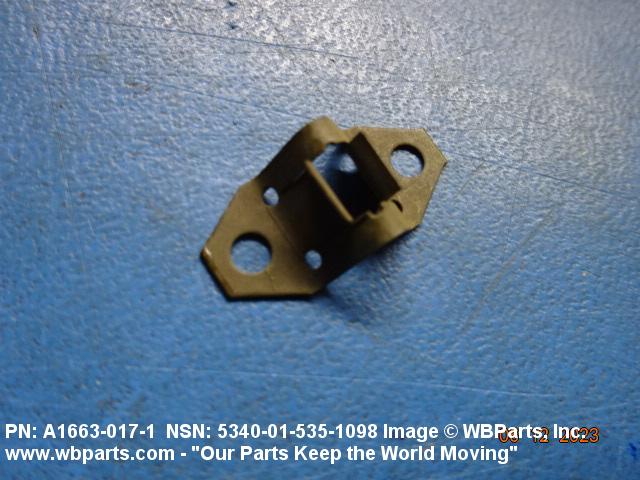

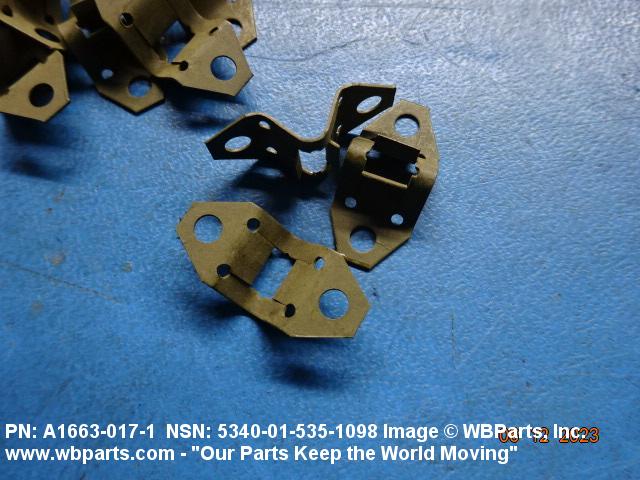

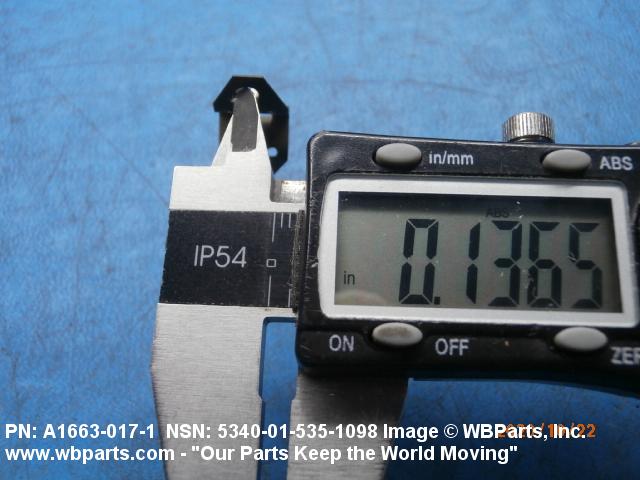

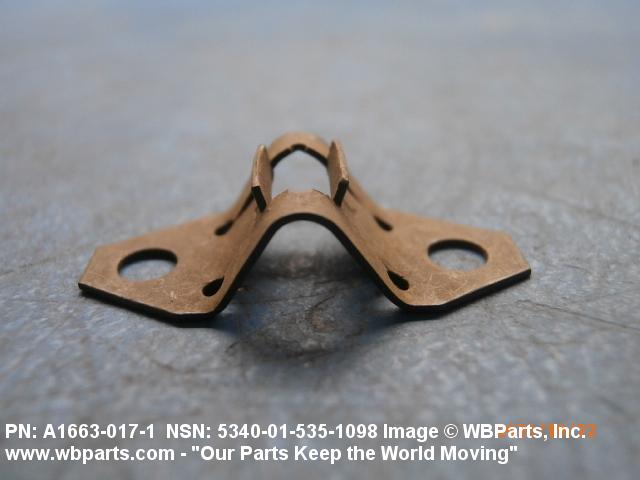

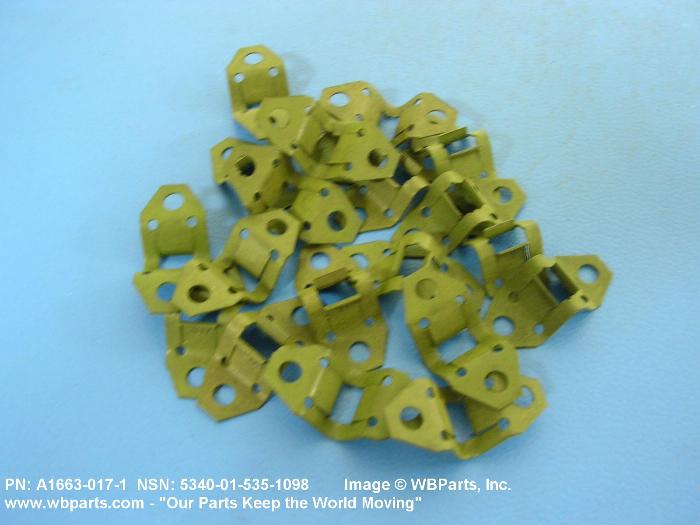

Drawings & Photos | NSN 5340-01-535-1098
Demand History | NSN 5340-01-535-1098
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-535-1098 | 2023-05-151 | 200 | United States |
| A16630171 | 2022-09-265 | 2000 | United States |
| 5340-01-535-1098 | 2020-11-314 | 2 | US |
| 5340-01-535-1098 | 2020-08-223 | 30 | United States |
| 5340-01-535-1098 | 2017-08-219 | 100 | US |
| A16630171 | 2017-05-136 | 5 | United States |
| A16630171 | 2017-05-136 | 100 | United States |
| A16630171 | 2010-09-267 | 24 | US |
| A16630171 | 2010-09-252 | 24 | US |
| A16630171 | 2010-08-243 | 24 | US |
| 5340-01-535-1098 | 2010-06-155 | 60 | US |
| A16630171 | 2008-04-107 | 20 | United States |
| A16630171 | 2007-10-296 | 2 | US |
Cross Reference | NSN 5340-01-535-1098
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A1663-017-1 | 78553 | TINNERMAN PALNUT ENGINEERED PRODUCTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-535-1098
Technical Data | NSN 5340-01-535-1098
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | SPARE PARTS FOR FUSELAGE |
| III END ITEM IDENTIFICATION | P 3C ORION AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 5340-01-535-1098
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
