NSN 5330-01-545-3486 177394, 01-545-3486, 015453486
Product Details | GASKET
5330-01-545-3486 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 177394, 5330-01-545-3486, 01-545-3486, 5330015453486, 015453486
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 NOV 2006 | 01-545-3486 | 04522 ( GASKET ) |
Drawings & Photos | NSN 5330-01-545-3486
Demand History | NSN 5330-01-545-3486
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-545-3486 | 2013-07-203 | 27 | DIBBS |
| 5330-01-545-3486 | 2012-05-125 | 9 | DIBBS |
Cross Reference | NSN 5330-01-545-3486
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 177394 | 21877 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-545-3486
Technical Data | NSN 5330-01-545-3486
| Characteristic | Specifications |
|---|---|
| MATERIAL | SILICONE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | A-A-59588A ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |
| CROSS-SECTIONAL THICKNESS | 0.470 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |

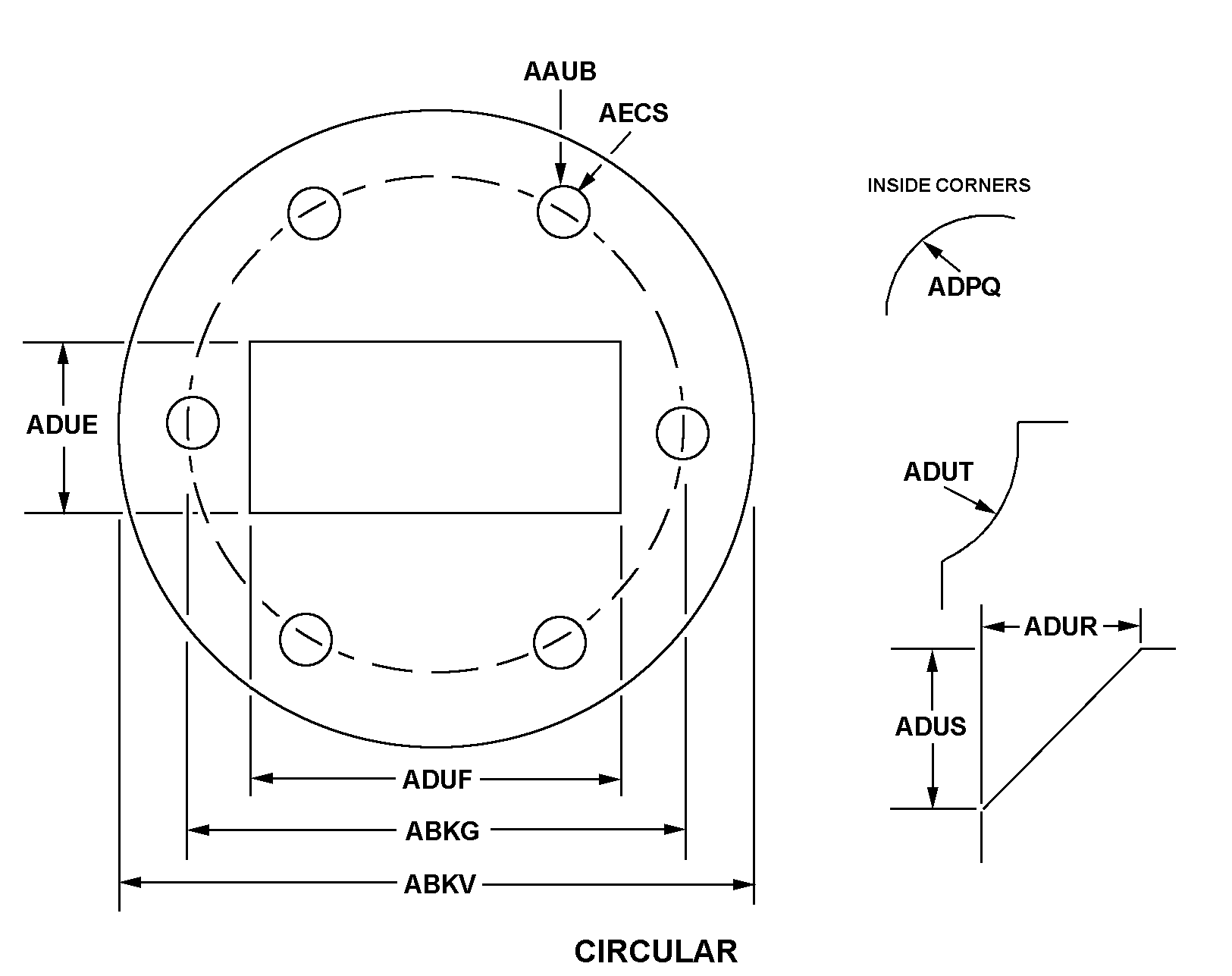

| STYLE DESIGNATOR | B51D CIRCULAR BEVELED |
| HOLE DIAMETER | 0.235 INCHES MINIMUM AND 0.265 INCHES MAXIMUM |
| BOLT CIRCLE DIAMETER | 3.125 INCHES NOMINAL |
| OUTSIDE DIAMETER | 4.780 INCHES MINIMUM AND 4.810 INCHES MAXIMUM |
| APERTURE WIDTH | 2.500 INCHES NOMINAL |
| APERTURE LENGTH | 3.500 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |
| SPECIAL FEATURES | 5TH HOLE IN TOP CENTER HAS 0.440 IN DIA; MATERIAL CLASS 2B AND GRADE 40 |
| III END ITEM IDENTIFICATION | AN/SPS-67(V)5 RADAR SET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | GASKET,SPINDLE-ADAPTER |
Restrictions/Controls & Freight Information | NSN 5330-01-545-3486
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-545-3486
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
