NSN 5330-01-494-5589 4015507 NON-ASBESTOS, 4015507NONASBESTOS, 01-494-5589
Product Details | GASKET
5330-01-494-5589 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 4015507 NON-ASBESTOS, 4015507NONASBESTOS, 5330-01-494-5589, 01-494-5589, 5330014945589, 014945589
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 FEB 2002 | 01-494-5589 | 04522 ( GASKET ) |

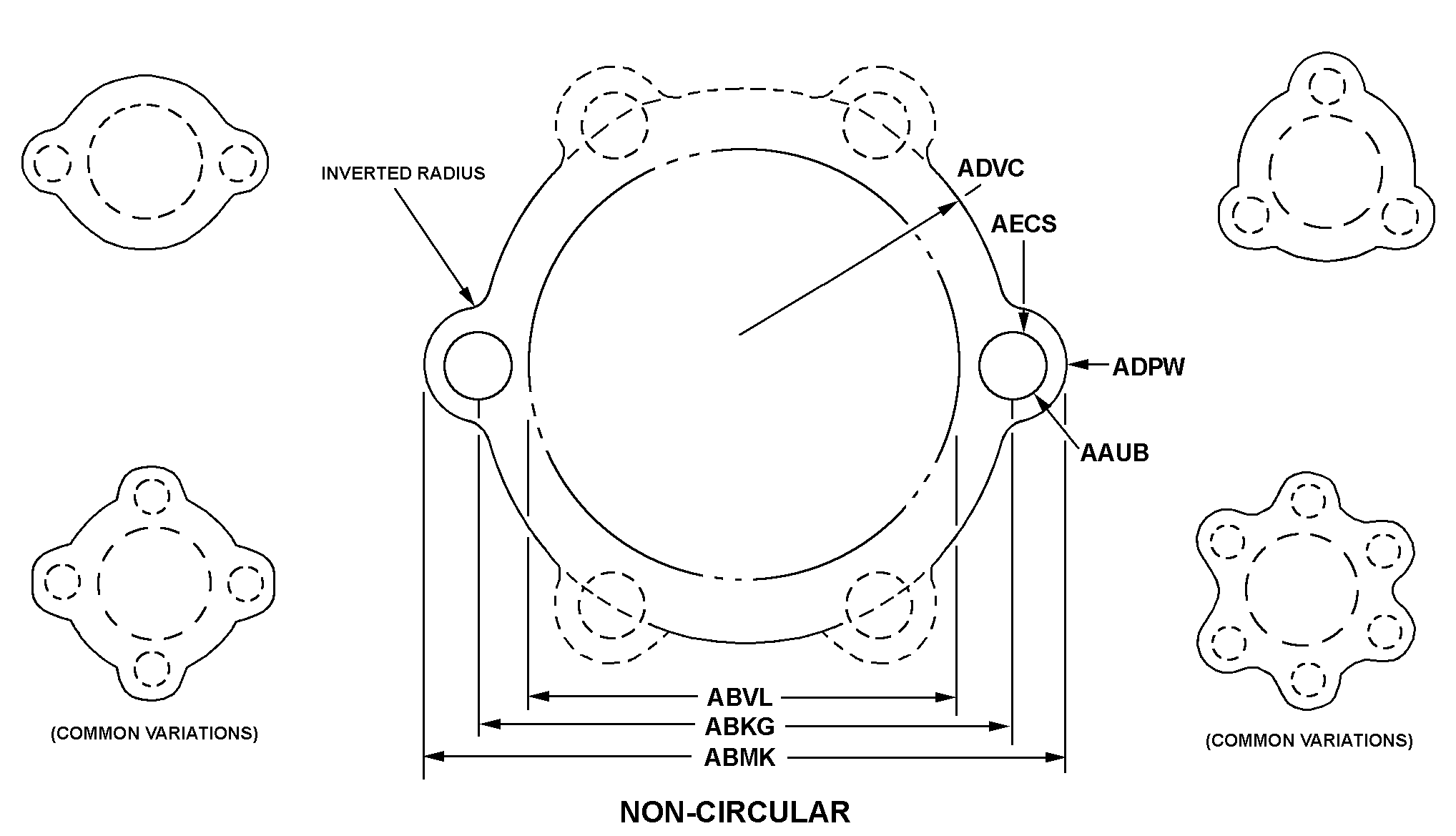

Drawings & Photos | NSN 5330-01-494-5589
Demand History | NSN 5330-01-494-5589
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-494-5589 | 2013-07-202 | 476 | DIBBS |
Cross Reference | NSN 5330-01-494-5589
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4015507 NON-ASBESTOS | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-494-5589
Related Products | NSN 5330-01-494-5589
Technical Data | NSN 5330-01-494-5589
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 475 NITRILE RUBBER MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |
| CROSS-SECTIONAL THICKNESS | 0.014 INCHES MINIMUM AND 0.021 INCHES MAXIMUM |
| STYLE DESIGNATOR | B21A NON-CIRCULAR |
| HOLE DIAMETER | 0.302 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| BOLT CIRCLE DIAMETER | 3.920 INCHES NOMINAL |
| OVERALL WIDTH | 4.638 INCHES NOMINAL |
| APERTURE DIAMETER | 3.280 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.359 INCHES NOMINAL |
| SIDE RADIUS FROM GASKET CENTER | 1.895 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |
| ENVIRONMENTAL ATTRIBUTE CODE | ASBESTOS ALTERNATIVE PRODUCTS |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 4015507 NON-ASBESTOS |
Restrictions/Controls & Freight Information | NSN 5330-01-494-5589
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Environmental Attribute Code: | JG | |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
