NSN 5330-01-491-2903 3050802, 3050802003, 3050802-003
Product Details | GASKET
5330-01-491-2903 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: 3050802, 3050802003, 3050802-003, 5330-01-491-2903, 01-491-2903, 5330014912903, 014912903
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 OCT 2001 | 01-491-2903 | 04522 ( GASKET ) |

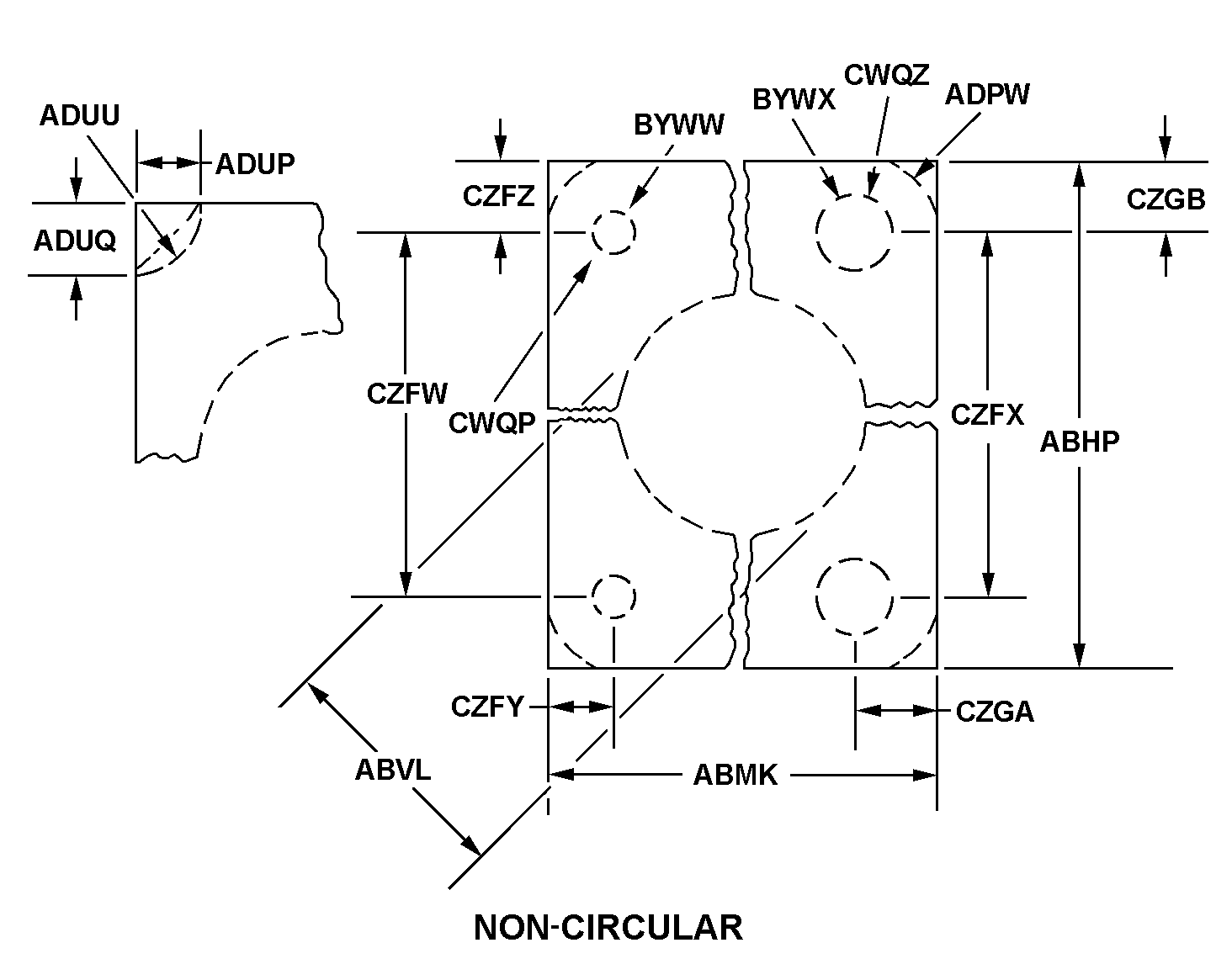

Drawings & Photos | NSN 5330-01-491-2903
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-491-2903
Technical Data | NSN 5330-01-491-2903
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-STYRENE CLASS SBR OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-PRF-1149,TYPE1,CLASS2 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |
| CROSS-SECTIONAL THICKNESS | 0.0625 INCHES NOMINAL |
| STYLE DESIGNATOR | B50E NON-CIRCULAR SQUARE W/O APERATURE |
| OVERALL LENGTH | 3.250 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| SMALLEST BOLT HOLE DIAMETER | 0.250 INCHES NOMINAL |
| LARGEST BOLT HOLE DIAMETER | 0.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN SMALLEST BOLT HOLES | 2.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LARGEST BOLT HOLES | 2.000 INCHES NOMINAL |
| OUTSIDE EDGE TO SMALLEST BOLT HOLE CENTER DISTANCE ALONG WIDTH | 0.0875 INCHES NOMINAL |
| OUTSIDE EDGE TO SMALLEST BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.630 INCHES NOMINAL |
| OUTSIDE EDGE TO LARGEST BOLT HOLE CENTER DISTANCE ALONG WIDTH | 0.875 INCHES NOMINAL |
| OUTSIDE EDGE TO LARGEST BOLT HOLE CENTER DISTANCE ALONG LENGTH | 0.630 INCHES NOMINAL |
| SMALLEST BOLT HOLE QUANTITY | 2 |
| LARGEST BOLT HOLE QUANTITY | 2 |
| III END ITEM IDENTIFICATION | RADAR THREAT EMITER AN/MST-T1 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | GASKET, AIR HANDLER |
Restrictions/Controls & Freight Information | NSN 5330-01-491-2903
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-491-2903
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | FD | SU:"ELECTRONIC WARFARE EQUIPMENT, NON-AIRBORNE" |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
