NSN 5330-01-472-4538 AS1895/7-150, AS18957150, 01-472-4538
Product Details | GASKET
5330-01-472-4538 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: AS1895/7-150, AS18957150, 5330-01-472-4538, 01-472-4538, 5330014724538, 014724538
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 MAR 2000 | 01-472-4538 | 04522 ( GASKET ) |

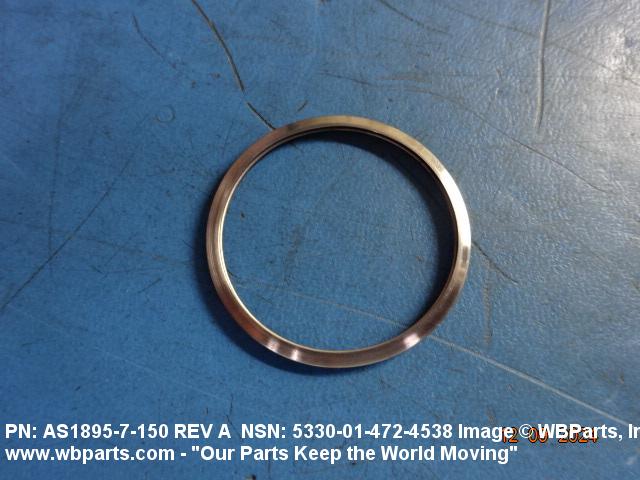

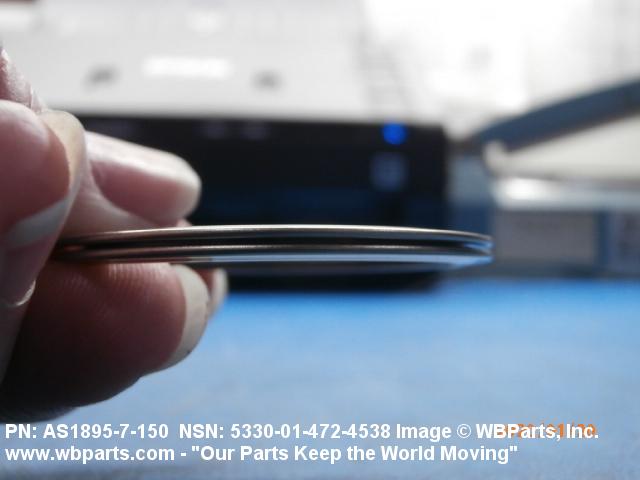

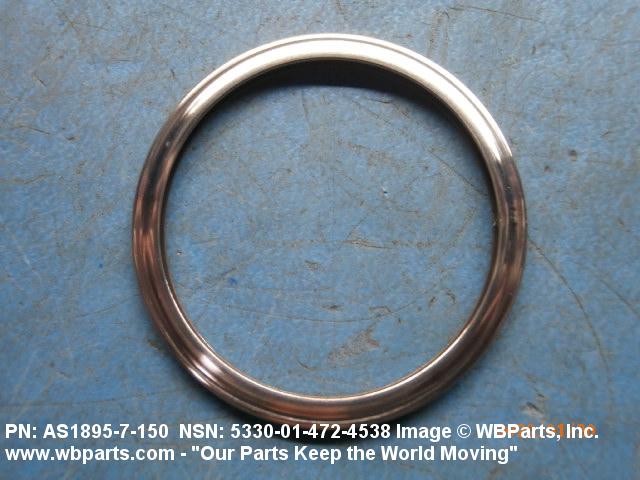

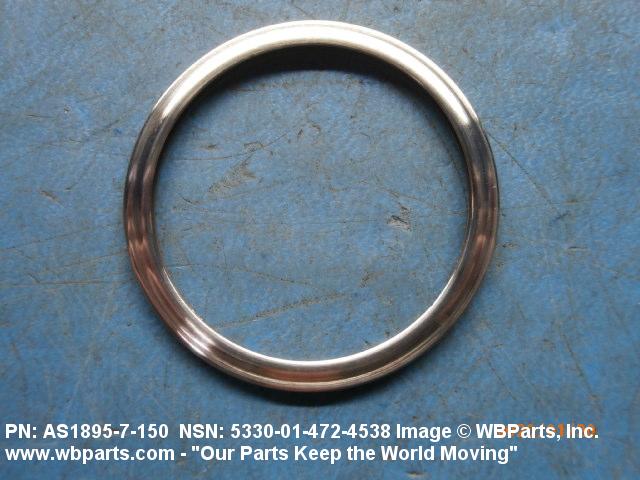

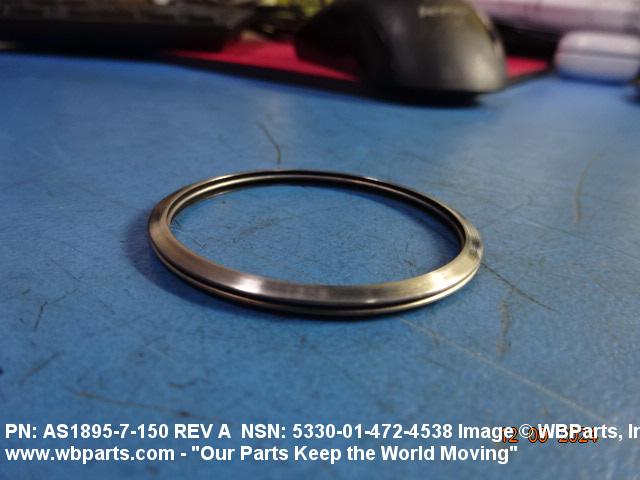

Drawings & Photos | NSN 5330-01-472-4538
Demand History | NSN 5330-01-472-4538
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS18957150 | 2024-06-158 | 25 | United States |
| 5330-01-472-4538 | 2024-03-73 | 1920 | DIBBS |
| AS18957150 | 2024-02-54 | 4 | Canada |
| 5330-01-472-4538 | 2023-11-320 | 5251 | DIBBS |
| AS18957150 | 2023-08-243 | 25 | United States |
| AS18957150 | 2023-07-193 | 1 | United States |
| AS18957150 | 2023-07-193 | 5 | United States |
| 5330-01-472-4538 | 2023-07-192 | 3455 | US |
| 5330-01-472-4538 | 2023-07-191 | 3455 | DIBBS |
| 5330-01-472-4538 | 2022-12-340 | 4 | United States |
| 5330-01-472-4538 | 2022-03-83 | 3126 | DIBBS |
| 5330-01-472-4538 | 2022-01-25 | 2202 | DIBBS |
| 5330-01-472-4538 | 2022-01-25 | 2202 | DIBBS |
| 5330-01-472-4538 | 2021-12-342 | 2202 | DIBBS |
| 5330-01-472-4538 | 2021-09-245 | 2202 | DIBBS |
| AS18957150 | 2020-01-06 | 7 | United States |
| 5330-01-472-4538 | 2019-11-332 | 1554 | DIBBS |
| 5330-01-472-4538 | 2018-12-357 | 15 | IL |
| 5330-01-472-4538 | 2018-10-304 | 1 | DIBBS-RFPs |
| AS18957150 | 2018-01-23 | 20 | us |
| AS18957150 | 2017-11-333 | 40 | us |
| AS18957150 | 2014-11-309 | 10 | United States |
| 5330-01-472-4538 | 2014-10-304 | 10 | US |
| 5330-01-472-4538 | 2014-07-183 | 471 | DIBBS |
| 5330-01-472-4538 | 2013-11-308 | 557 | DIBBS |
| AS18957150 | 2012-06-165 | 6 | Italy |
| 5330-01-472-4538 | 2011-11-312 | 3000 | DIBBS |
| AS18957150 | 2010-03-62 | 3 | US |
| AS18957150 | 2009-03-75 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-472-4538
Related Products | NSN 5330-01-472-4538
Technical Data | NSN 5330-01-472-4538
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY 718 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5589 OR AMS 5596 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE 1, 2, OR 3, ELECTROPOLISH OR MECHANICAL POLISH FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F21 RECTANGULAR METAL |

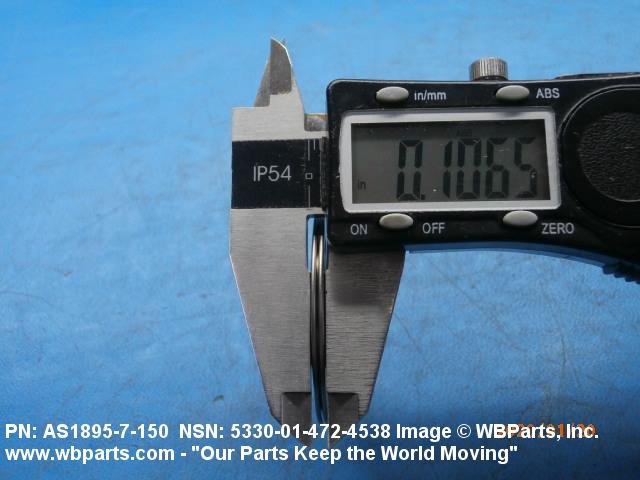

| CROSS-SECTIONAL THICKNESS | 0.103 INCHES MINIMUM AND 0.113 INCHES MAXIMUM |
| STYLE DESIGNATOR | B1 CIRCULAR |

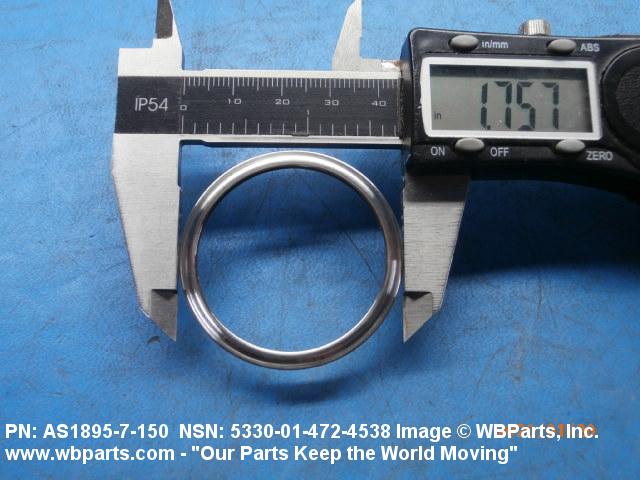

| OUTSIDE DIAMETER | 1.749 INCHES NOMINAL |
| APERTURE DIAMETER | 1.458 INCHES NOMINAL |
| SPECIAL FEATURES | TUBE SIZE IS 1.50 |
| III END ITEM IDENTIFICATION | AIRCRAFT, HORNET A/F-18-DCN |
Restrictions/Controls & Freight Information | NSN 5330-01-472-4538
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096640 | SCREWS, IRON OR STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-472-4538
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
