NSN 5330-01-443-6337 CR4681, CR53516360, CR535163-60
Product Details | PLAIN SEAL
5330-01-443-6337 A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal.
Part Alternates: CR4681, CR53516360, CR535163-60, R818005, 535163, 53516360, 535163-60, 7338292, 733829-2, 8023471, 802347-1, 5330-01-443-6337, 01-443-6337, 5330014436337, 014436337
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 APR 1997 | 01-443-6337 | 04250 ( SEAL, PLAIN ) |
Drawings & Photos | NSN 5330-01-443-6337
Demand History | NSN 5330-01-443-6337
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8023471 | 2024-10-289 | 25 | France |
| 7338292 | 2024-07-191 | 20 | SK |
| CR53516360 | 2023-04-116 | 5 | Philippines |
| 5330-01-443-6337 | 2021-05-130 | 96 | US |
| 5330-01-443-6337 | 2021-02-34 | 53 | US |
| 5330-01-443-6337 | 2018-07-192 | 10 | Pakistan |
| 7338292 | 2016-07-207 | 50 | CN |
| 5330-01-443-6337 | 2014-02-36 | 12 | DIBBS |
| 733829-2 | 2013-12-344 | 30 | UAE |
| R818005 | 2013-05-130 | 160 | US |
| 5330-01-443-6337 | 2013-02-59 | 5 | DIBBS |
| 733829-2 | 2011-08-223 | 15 | Hong Kong |
| 8023471 | 2010-08-223 | 100 | United States |
| 5330-01-443-6337 | 2008-07-200 | 1 | Taiwan |
Cross Reference | NSN 5330-01-443-6337
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 535163 | 80201 | SKF USA INC. DBA SKF AEROSPACE SEALING SOLUTIONS |
| 535163-60 | 80201 | SKF USA INC. DBA SKF AEROSPACE SEALING SOLUTIONS |
| 733829-2 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
| 802347-1 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
| CR4681 | 80201 | SKF USA INC. DBA SKF AEROSPACE SEALING SOLUTIONS |
| CR535163-60 | 80201 | SKF USA INC. DBA SKF AEROSPACE SEALING SOLUTIONS |
| R818005 | 83259 | PARKER-HANNIFIN CORPORATION DBA COMPOSITE SEALING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-443-6337
Related Products | NSN 5330-01-443-6337
Technical Data | NSN 5330-01-443-6337
| Characteristic | Specifications |
|---|---|

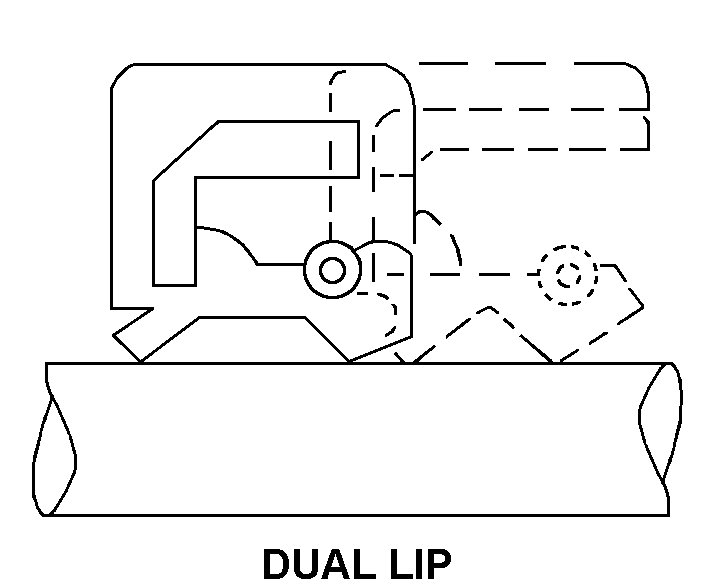

| CROSS-SECTIONAL SHAPE STYLE | L18 DUAL LIP |
| HOUSING BORE DIAMETER | 0.548 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| SPECIAL FEATURES | 3 SLOTS 0.060 INCH MIN, 0.068 INCHMAX |
| MANUFACTURERS CODE | 73030 |
| MFR SOURCE CONTROLLING REFERENCE | 802347-1 |
Restrictions/Controls & Freight Information | NSN 5330-01-443-6337
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194090 | WASHERS/SEALS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5330-01-443-6337
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
