NSN 5330-01-544-8472 10250054-1, 01-544-8472, 102500541
Product Details | PLAIN SEAL
5330-01-544-8472 A pliable rubber or composition ring-shaped element, split or jointless (solid) not encased in a metal shell, but having a spring, spreader and/or molded-in reinforcement. It is designed to be pressmounted between fixed and movable or moving parts to form a tight and effective seal.
Part Alternates: 10250054-1, 5330-01-544-8472, 01-544-8472, 5330015448472, 102500541, 015448472
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 OCT 2006 | 01-544-8472 | 04250 ( SEAL, PLAIN ) |

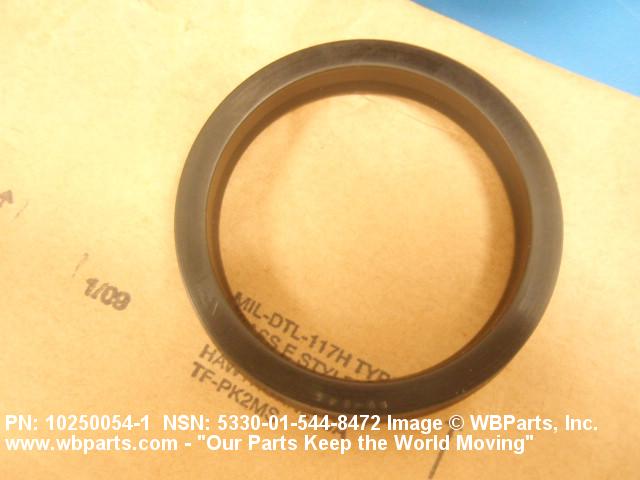

Drawings & Photos | NSN 5330-01-544-8472
Demand History | NSN 5330-01-544-8472
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-544-8472 | 2024-09-248 | 25 | US |
| 102500541 | 2008-12-339 | 15 | Greece |
| 102500541 | 2008-07-210 | 20 | Greece |
| 102500541 | 2008-05-141 | 20 | Greece |
| 102500541 | 2008-04-101 | 20 | Greece |
| 102500541 | 2008-04-95 | 20 | Greece |
Cross Reference | NSN 5330-01-544-8472
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10250054-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5330-01-544-8472
Technical Data | NSN 5330-01-544-8472
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYURETHANE OVERALL |
| CONSTRUCTION | SOLID |
| SPECIAL FEATURES | NEXT HIGHER ASSEMBLY 11450160 |
Restrictions/Controls & Freight Information | NSN 5330-01-544-8472
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
