NSN 5330-01-430-5004 A31679573, A3167957-3, 01-430-5004
Product Details | GASKET

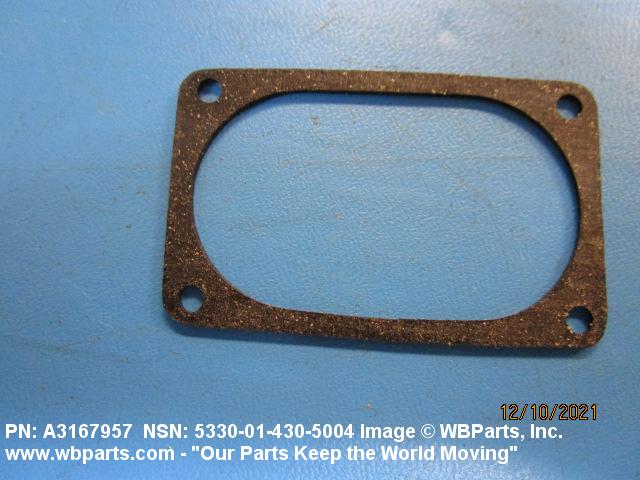

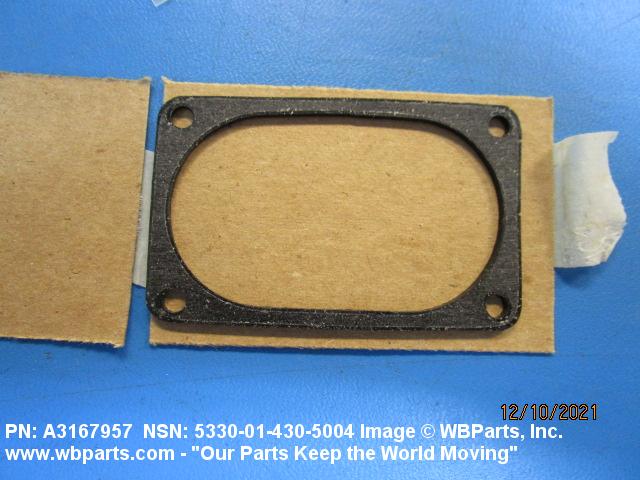

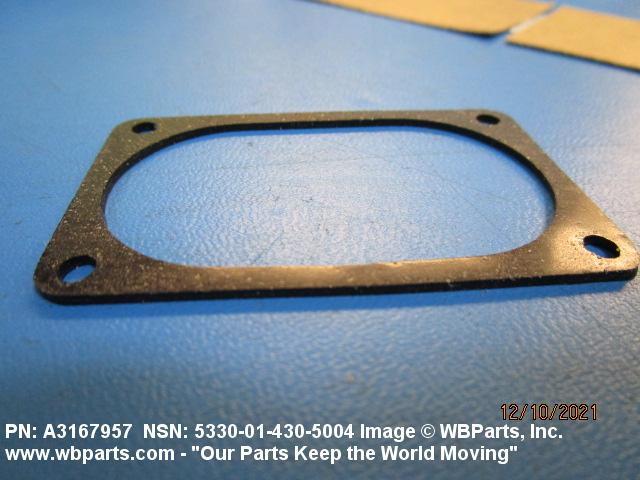

5330-01-430-5004 A deformable material which prevents the passage of matter through the joint formed when two faces are joined. It may be metallic or nonmetallic, lubricated or impregnated, solid or hollow cross section. It may be made to any predetermined dimension and shape. Excludes flat disks, items made of felt material and items having joints. For round metal and plastic items with an aperture and a solid rectangular cross section, see WASHER, FLAT; SHIM; BEARING, WASHER, THRUST; and SPACER RING. Excludes DISK, VALVE; SEAL, NONMETALLIC ANGLE; SEAL, NONMETALLIC CHANNEL; SEAL, NONMETALLIC SPECIAL SHAPED SECTION; SHIELDING GASKET, ELECTRONIC; and RING, SEALING JAR.
Part Alternates: A31679573, A3167957-3, 5330-01-430-5004, 01-430-5004, 5330014305004, 014305004
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 APR 1996 | 01-430-5004 | 04522 ( GASKET ) |
Drawings & Photos | NSN 5330-01-430-5004
Demand History | NSN 5330-01-430-5004
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5330-01-430-5004 | 2021-11-317 | 1 | United States |
| 5330-01-430-5004 | 2021-10-297 | 50 | United States |
| 5330-01-430-5004 | 2021-10-296 | 20 | United States |
| 5330-01-430-5004 | 2013-05-140 | 5000 | DIBBS |
| 5330-01-430-5004 | 2008-05-126 | 2538 | DIBBS |
| 5330-01-430-5004 | 2008-05-122 | 2500 | DIBBS |
| 5330-01-430-5004 | 2008-03-80 | 819 | DIBBS |
| 5330-01-430-5004 | 2008-03-79 | 238 | DIBBS |
| 5330-01-430-5004 | 2008-03-72 | 681 | DIBBS |
| 5330-01-430-5004 | 2008-03-72 | 240 | DIBBS |
Cross Reference | NSN 5330-01-430-5004
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A3167957-3 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5330-01-430-5004
Related Products | NSN 5330-01-430-5004
Technical Data | NSN 5330-01-430-5004
| Characteristic | Specifications |
|---|---|

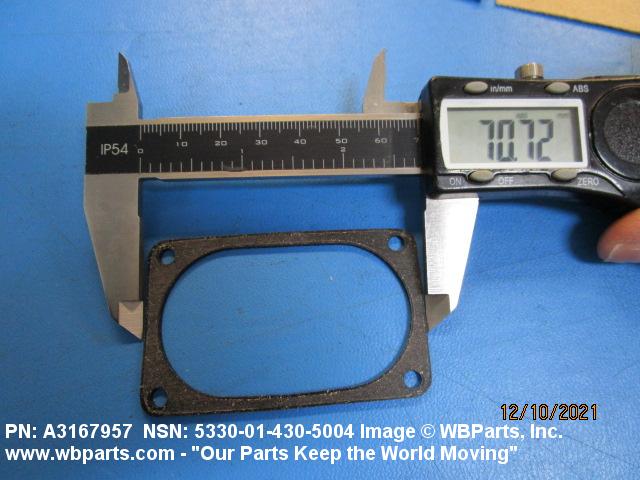

| MATERIAL | RUBBER CHLOROPRENE CLASS CR OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-6855, CLASS 2, TYPE A MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 55.0 SHORE DUROMETER A MINIMUM AND 65.0 SHORE DUROMETER A MAXIMUM OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | F33 SOLID SINGLE OR COMPOSITION NONMETALLIC MATERIAL |
| CROSS-SECTIONAL THICKNESS | 1.29 MILLIMETERS MINIMUM AND 1.85 MILLIMETERS MAXIMUM |

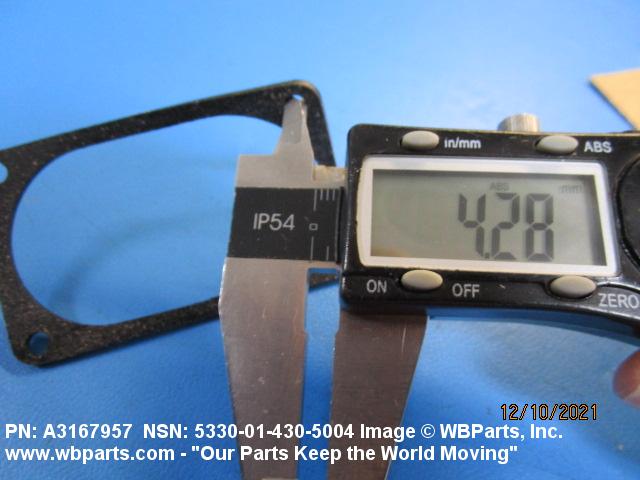

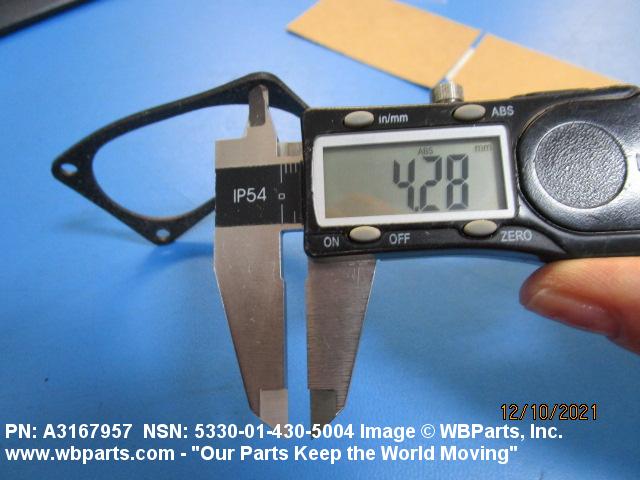

| HOLE DIAMETER | 4.27 MILLIMETERS NOMINAL |
